iX-project

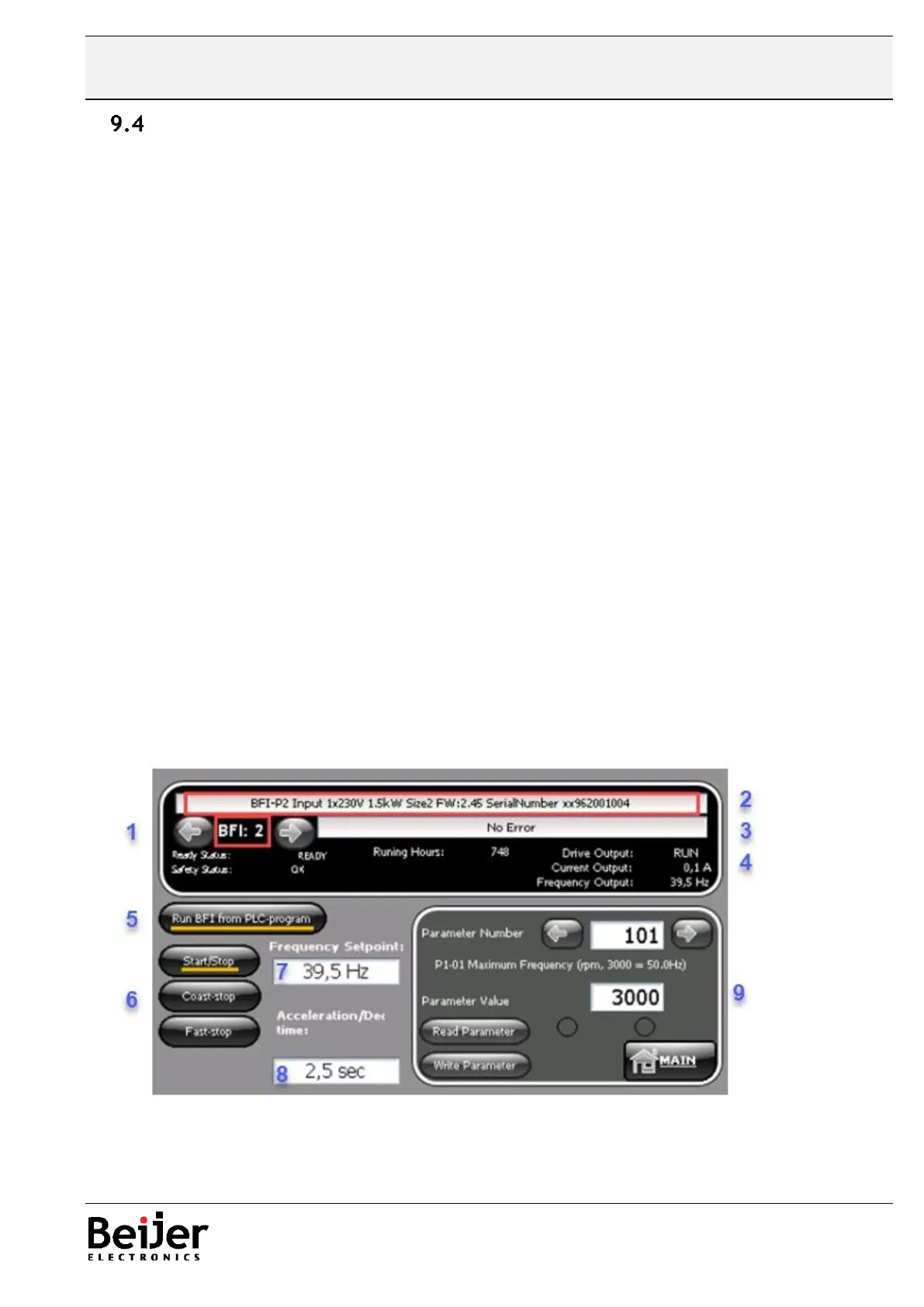

CODESYS/BCS Tools project, X2 control BFI-E3 Modbus TCP, has a corresponding iX project. The
project contains one Start_Screen and one BFI_Control Screen. Explanation of project:
1. Choose which BFI to be monitored. Either tap in the figure or use Increase/Decrease buttons
2. BFI data
a. Type of BFI
b. Input voltage and number of phases
c. Power
d. Physical size
e. Firmware version
f. Serial number
3. Description of Communication error or User error
4. Actual status of BFI
a. Ready to Run or not
b. Safety Status (STO) in BFI-H3 and BFI-P2
c. Total Running Hours
d. Motor in Run or Stop
e. Motor current
f. Output frequency
g. If Alarm in BFI it is shown
h. Explanation of what the alarm means
5. Take control of the BFI from this menu. PLC-program is neglected.
6. Start/stop- Coast- and Fast stop buttons
7. Frequency Setpoint
8. Acceleration/Deceleration Time to be used if P-12=4 in BFI-E3
9. Parameter handling
a. Parameter number to be either tapped in or Increase/Decrease buttons
b. Name/Explanation of parameter is shown
c. Read Parameter value or to be written
d. Button Read Parameter
e. Button Write Parameter
f. Status whether Read/Write of parameter Succeeded or not
It is possible to have a Sheet containing Data from several BFI. But this needs to be configured in Symbol
Manager of CODESYS/BCS Tools and then imported to iX Developer.
