Indication of status on LED of BFI-E3

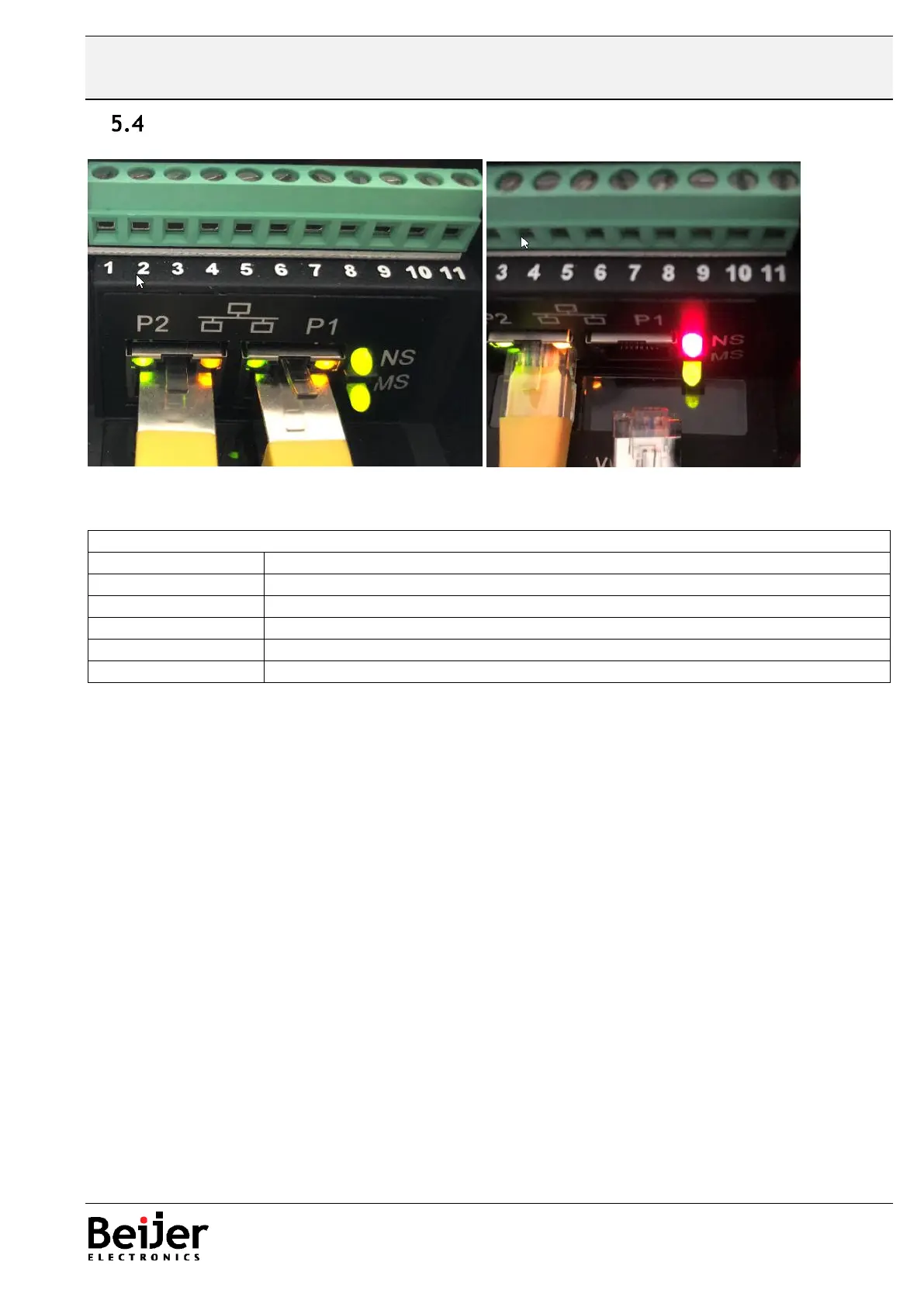

Example of LED indication of ethernet ports in BFI-E3.
Communication working Communication interruption
Network Status Indicator, NS
State
Indication
Steady Off
BFI is not powered up or no IP address
Flashing Green
Online, no Modbus TCP connections active
Steady Green
Online, Modbus TCP connections active
Flashing Red
Connection Timeout after working Modbus TCP connection
Steady Red
Duplicate IP address
