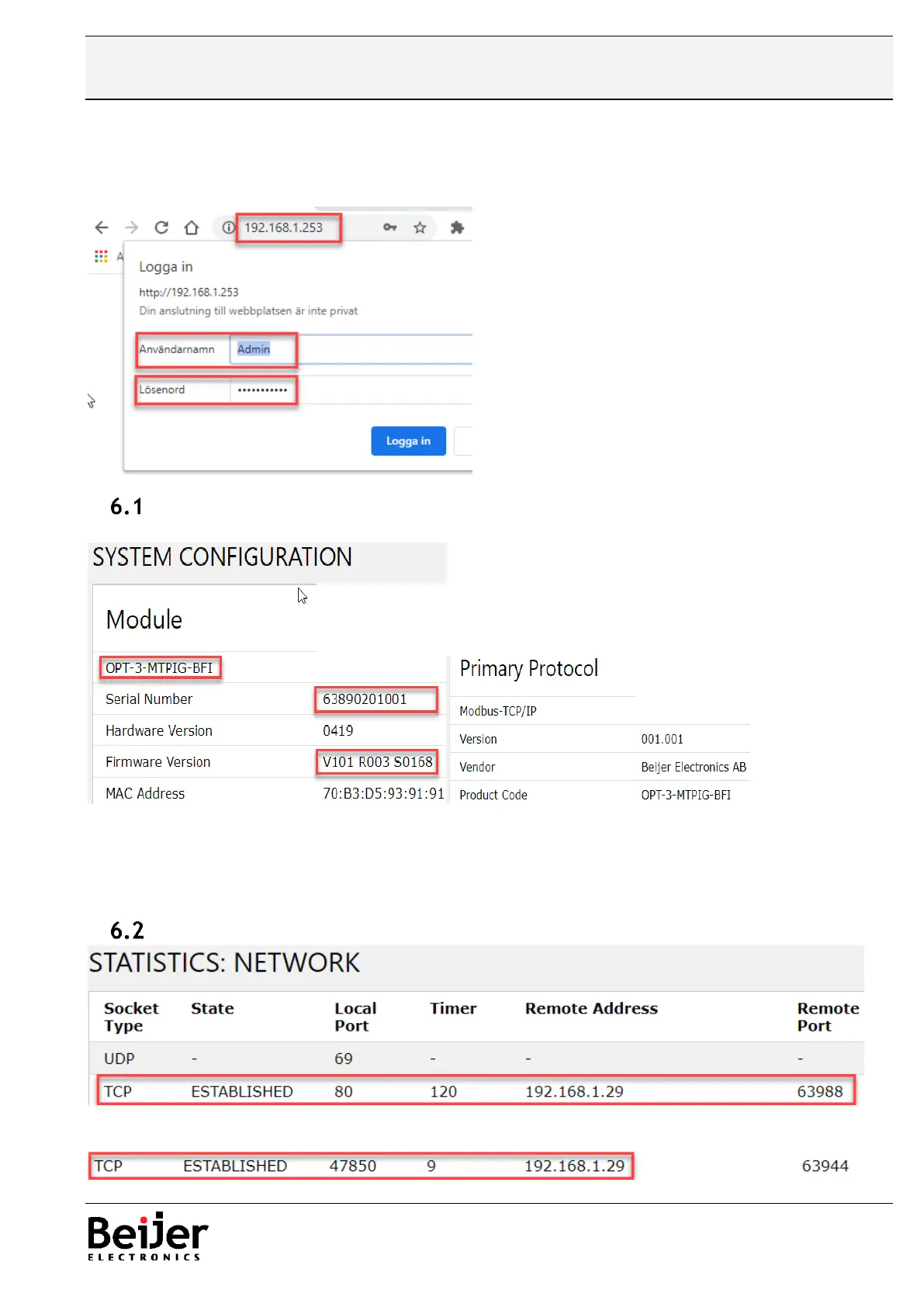

6 Web server in BFI-E3
Default IP-address of BFI-E3 is 192.168.1.253 and Subnet: 255.255.255.0
Enter IP-address in the web browser. Username is Admin and Password is the serial number of the BFI.
Module Configuration
• OPT-3-MTPIG-BFI is the name for the internal Modbus TCP board .
• The serial number is the identification for the complete BFI.
• Hardware version is 0419
• Latest available firmware in October 2020 is V101 R003 S0168
Network Statistic
• 192.168.1.29 is the IP-address of the PC. Local port 80 with Socket type TCP is the web browser
connection with BFI.
