Belden HIRSCHMANN OCTOPUS OS3 - 1.6 Pin Assignments; Power Supply Pin Assignments; Ethernet Port Pin Assignments

26
Installation OCTOPUS OS3
Release 03 08/2020

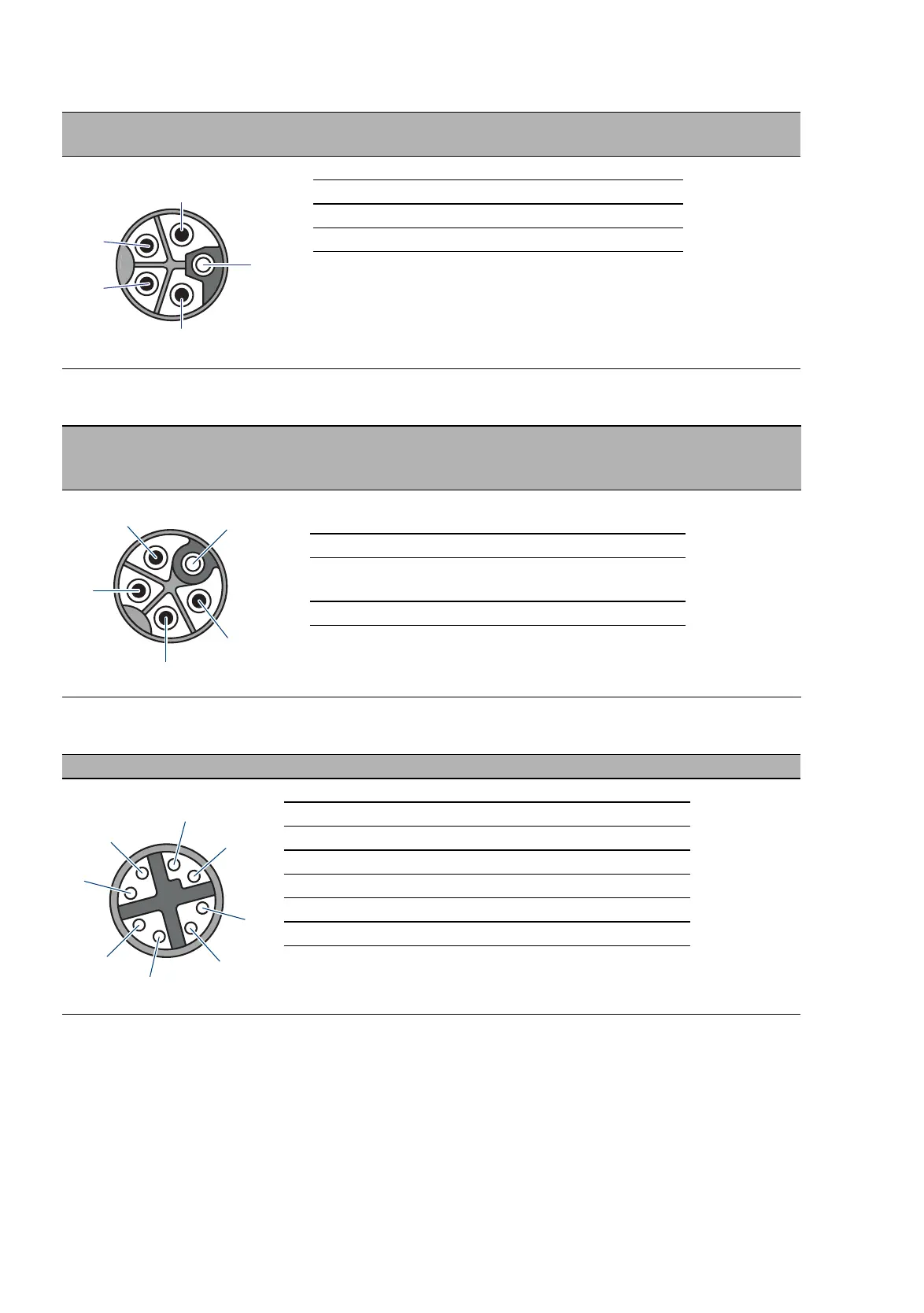

1.6 Pin assignments
Note: If you operate a GE port with Fast Ethernet, only the pins 1 to 4 are
active.
Supply voltage characteristic
value BB, HH, PP, QQ
Pin Function Type
1 P1+ Plus terminal of supply voltage 1 5-pin M12
connector,
“L”-coded
2 P2- Minus terminal of supply voltage 2
3 P1- Minus terminal of supply voltage 1
4 P2+ Plus terminal of supply voltage 2
5 FE Functional earth connection
Table 6: Pin assignments: Supply voltage characteristic value BB, HH, PP, QQ
Supply voltage
characteristic value M9,N9
Pin Function
characteristic
value M9
Function
characteristic
value N9
Type
1 L Conductor + Plus terminal of
supply voltage
5-pin M12
connector,
“K”-coded
2 Do not use Do not use
3 N Neutral
conductor
- Minus terminal of
supply voltage
4 Do not use Do not use
5 PE Protective earth
connection
PE Protective earth
connection
Table 7: Pin assignments: Supply voltage characteristic value M9, N9
GE port Pin Function PoE/PoE+ Type
1 BI_DB+ Negative V
PSE
8-pin M12
socket, “X”-
coded
2 BI_DB- Negative V
PSE
3 BI_DA+ Positive V
PSE
4 BI_DA- Positive V
PSE
5 BI_DC+ -
6 BI_DC- -
7 BI_DD- -
8 BI_DD+ -
Table 8: Pin assignments: GE port
1
2
3
4
5
1
2
3
4
5
1
2
7
4
3
5
6
8
