1.3 Device views
1.3.1 Device variants with 24 × Ethernet ports
1 V.24 interface 4-pin, “A”-coded M12 socket
2 USB interface 5-pin, “A”-coded M12 socket
3 Signal contact 5-pin, “A”-coded M12 plug
4 Supply voltage connection 5-pin, “K”- or “L”-coded M12 plug
5 LED display elements for port status
6 24 × 10/100/1000 Mbit/s twisted pair port
or
10/100 Mbit/s twisted pair port
Device variants: OS3-3x...
8-pin, “X”-coded M12 socket
or
4-pin, “D”-coded M12 socket
Device variants: OS3-4x...
8-pin, “X”-coded M12 socket
7 Slot hole for mounting on a flat surface
8 LED display elements for device status
9 Ground connection
10 Ground connection (alternatively)

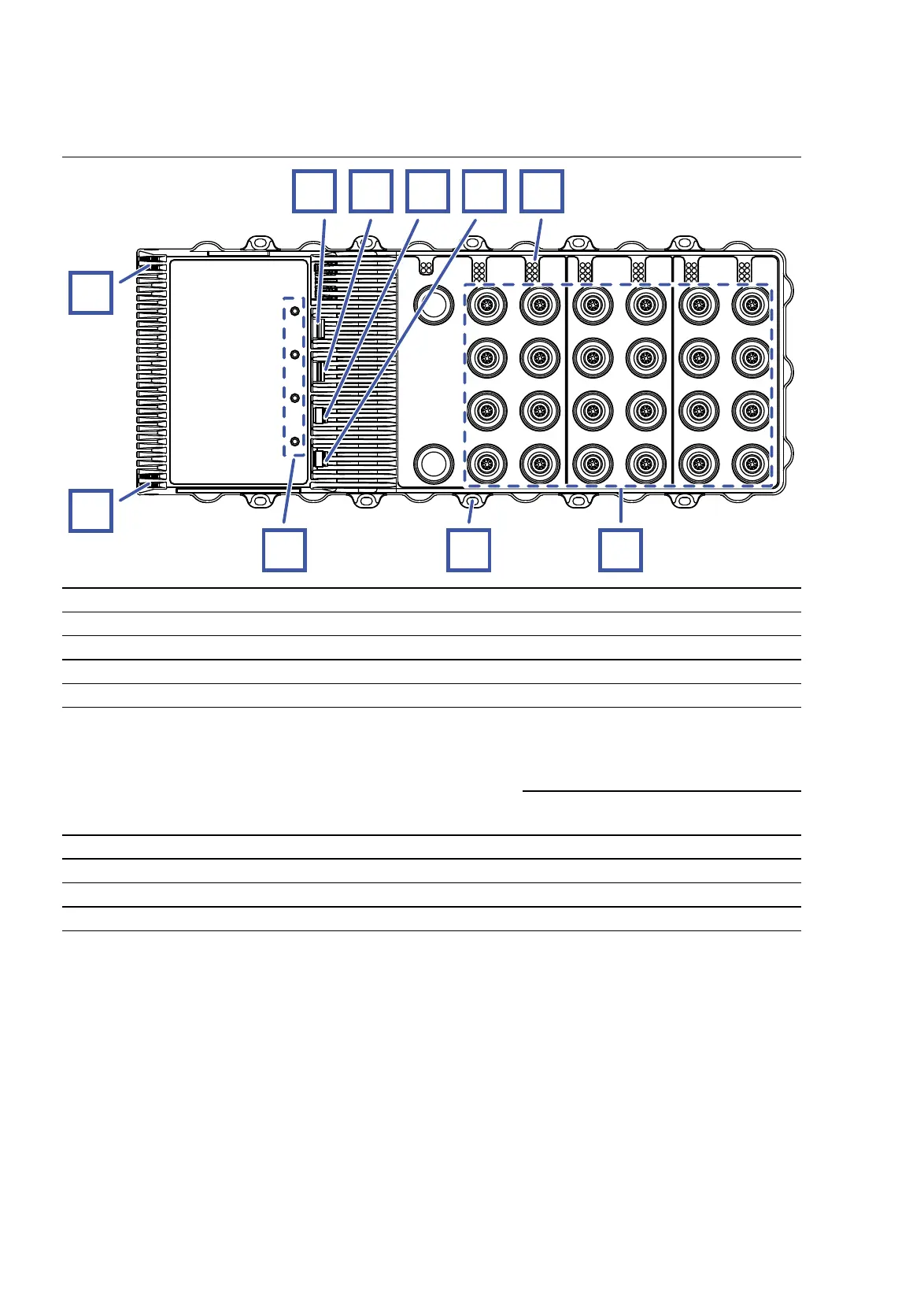

Table 2: Front view (using the example OCTOPUS3-40-...)
1 2 3 4
6
5
9
10
8 7
