VAV – Module NMV-D2M
N-A3.2.2 Description of the menu bar
N-A3.2.3 Menu functions / Function keys
Menu entry Brief description Function key
File
¦ Print… Controller settings of active <CTRL> <P>
¦ NMV-D2M are printed out
¦ Print to file… Controller settings of active <CTRL> <shift> <P>
¦ NMV-D2M are stored in a text file
¦ Printer setting… Printer option
¦ Windows function
¦ End Close program <ALT> <F4>
Menu entry Brief description Function key
Modu le
¦ MFT-PC Modu le for as signing parameters to Belimo MFT actuators,
¦ such as AM24-MFT, AF24-MFT, etc .
¦ NMV-D2M VAV module for VAV-Compact NMV-D2M controllers
Menu entry Brief description Function key
Extras
¦ Address actuators… F2 Change address assigned to NMV-D2M <F2>
¦ Options...
¦ General
¦ - Language Select program language
¦ - Com Port Set communication Port 1...4
¦ - Module release Activate special functions (only for manufacturers)
¦ MFT-PC
¦ - Actuator password Activate password function
¦ NMV-D2M
¦ -
NMV-D2M password Activate password function
¦ - Flow unit Display volumetric flow in m
3
/h / l/s / cfm
¦ - Label printer Activate label printer (only for manufacturers)
¦ - Box-Type Select Box-Type file (only for manufacturers)
¦ - Log data Select storage directory
¦ - Trend data Select storage directory
¦ - Test-Sequence Select Test-Sequence file
Menu entry Brief description Function key

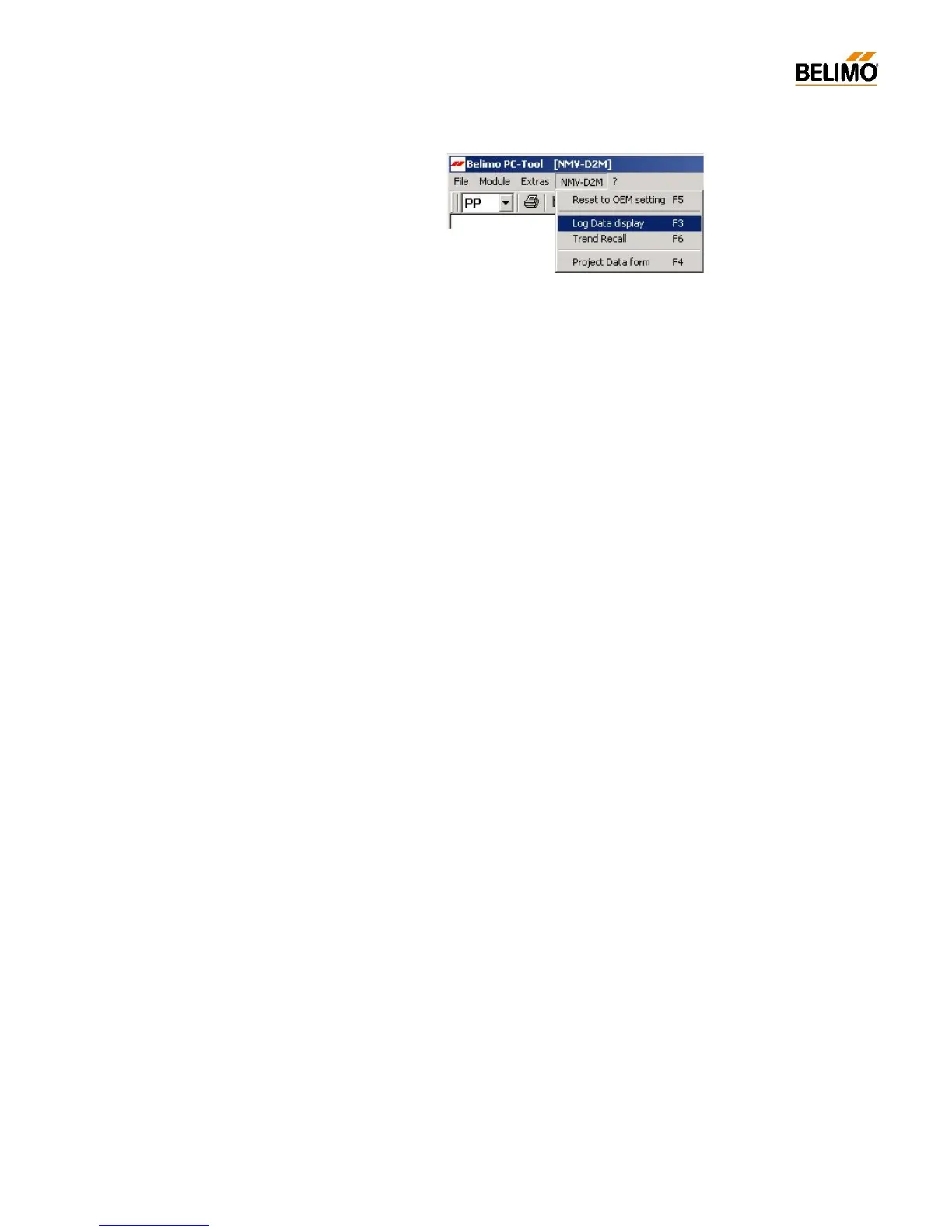

NMV-D2M
¦ Reset to OEM setting Reset operating flow settings to <F5>
¦ OEM default values
¦ Log Data display Show log file <F3>
¦ Trend Recall Display stored trend data <F6>
¦ Project Data form Open input screen mask for project data <F4>
¦ for trend, log, test and print functions
¦ Select Test sequence… Browse option for the selection of <F7>
Test sequence
