USING THE WEB-BASED ADVANCED USER INTERFACE
1. WAN IP Address – Enter an IP address assigned by your ISP for
the Router WAN interface�
2. Subnet Mask - Enter a subnet mask assigned by your ISP�
3. Use Static Default Gateway - Enter a default gateway IP address�
If the Router cannot find the destination address within its local
network, it will forward the packets to the default gateway assigned
by your ISP�
4. VPI/VCI - Enter your Virtual Path Identifier (VPI) and Virtual Circuit
Identifier (VCI) parameter here� These identifiers are assigned by
your ISP�
5. Encapsulation - Select LLC or VC MUX your ISP uses�
Click “Apply Changes” to save and activate your settings� To go back to
the original settings before saving, click “Clear Changes”� Or click any of
the Quick-Navigation links for other options� Your new settings will not
be saved unless your click “Apply Changes”�

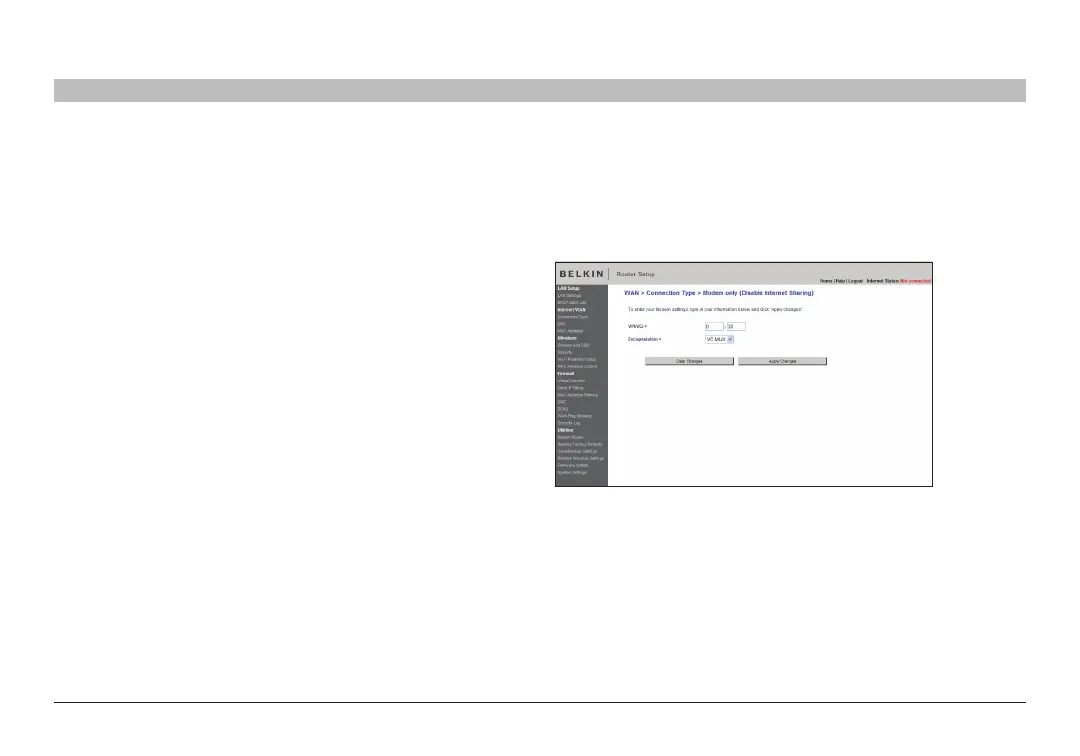

Setting your Connection Type to Modem Only (Disable Internet
Sharing)
In this mode, the Router simply acts as a bridge passing packets across
the DSL port� It requires additional software to be installed on your
computers in order to access the Internet�
1. Enable Bridge Service – Check this box to enable bridge service
2. VPI/VCI – Enter your Virtual Path Identifier (VPI) and Virtual Circuit
Identifier (VCI) parameters here� (Assigned by your ISP)�
3. Encapsulation – Select the LLC or VC MUX your ISP uses�
Click “Apply Changes” to save and activate your settings� To go back to
the original settings before saving, click “Clear Changes”� Or click any of
the Quick-Navigation links for other options� Your new settings will not
be saved unless your click “Apply Changes”�

Belkin G+MIMO Specifications

General

Frequency Band	2.4 GHz
Antenna Type	Internal
Data Rate	54 Mbps
Wireless Standard	802.11g
Security	WEP, WPA, WPA2
Wireless Speed	54 Mbps
Ports	4 x 10/100 Mbps LAN, 1 x 10/100 Mbps WAN
