Connection
Connection locking actuators
A HS1 B HS2Type 2 socket-outlets (actuator type) Actuator

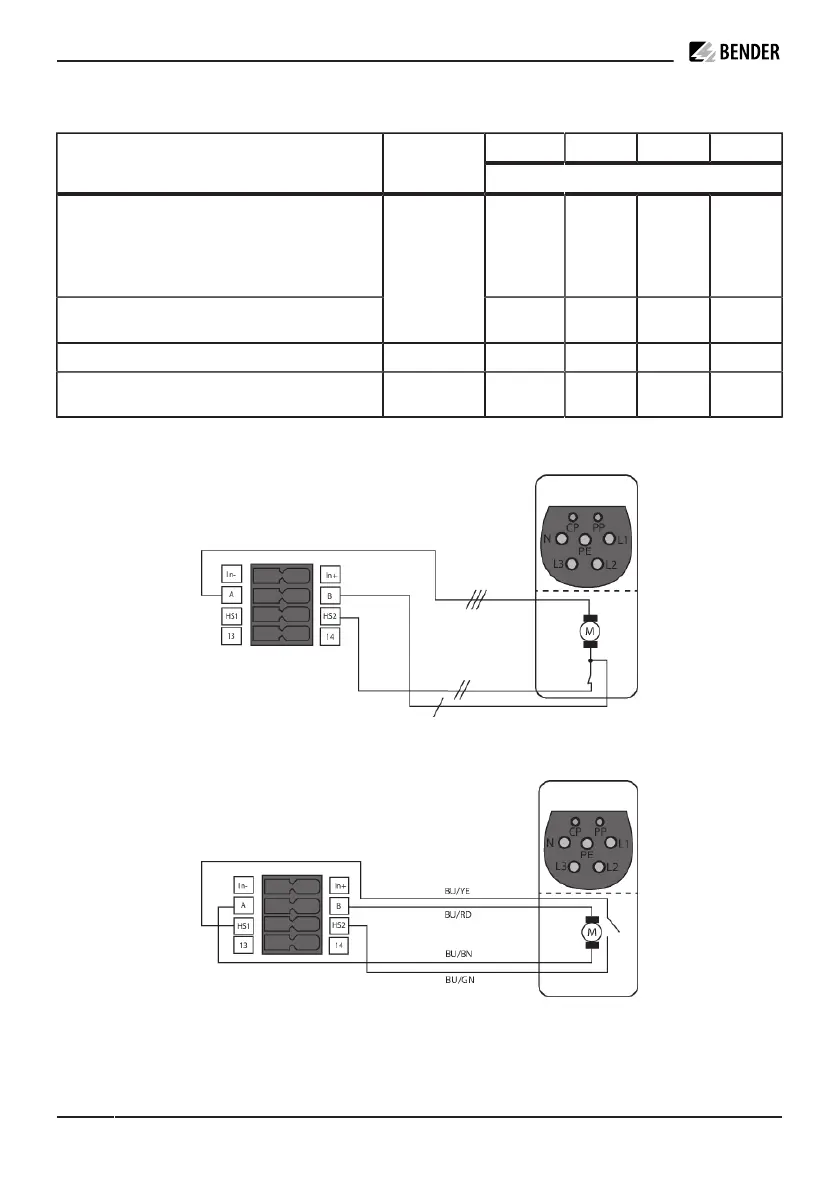

Socket-outlet actuator wiring
•
Mennekes (31016, 31023, 31024, 31038)
•
Bals (801191-801195, 80300, 9743205000,
9743211000)
•
Walther Werke (9743211000)
•
Harting
Wire 3 (///) Wire 1 (/) Wire 2 (//)
•
Walther Werke Eco Slim 32 A (9743205180) with
connection cable (790000001)
Hella
Wire 1
(black)
Wire 3
(blue)
Wire 2
(red)
•
Phoenix Contact (1624129) Küster BU/BN BU/YE BU/RD BU/GN
•
Phoenix Contact ( EV-T2M3SM-E-LOCK12V)
Phoenix
Contact
BU/BN BU/YE BU/RD BU/GN
Example Hella actuator
Example Küster
