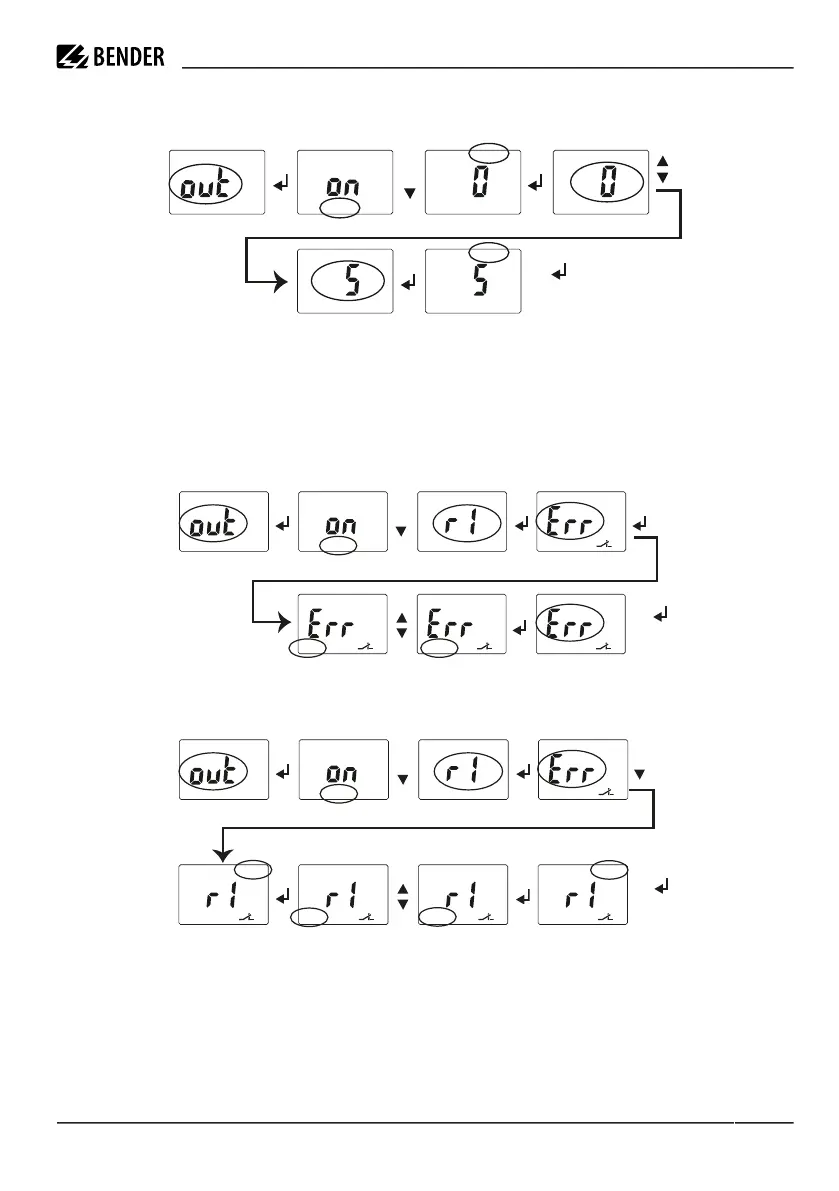

5.4 Alarm categories
Overcurrent, undercurrent and device-related errors of the residual current monitor can be assigned to the
alarm relays K1 (r1, 1) and K2 (r2, 2). By default, the alarm relays K1 and K2 signal prewarning and alarm in case
of overcurrent and device-related errors.
Alarm relay K1: Deactivating the category device error
M
on
1
on
1
off
1
off
1
> 1,5 s
4x
3x
Alarm relay K1: Deactivating the category response value I1
M
on
1
on
1
I
on
1
I
off
1I
off
1I
> 1.5 s
4x
3x
