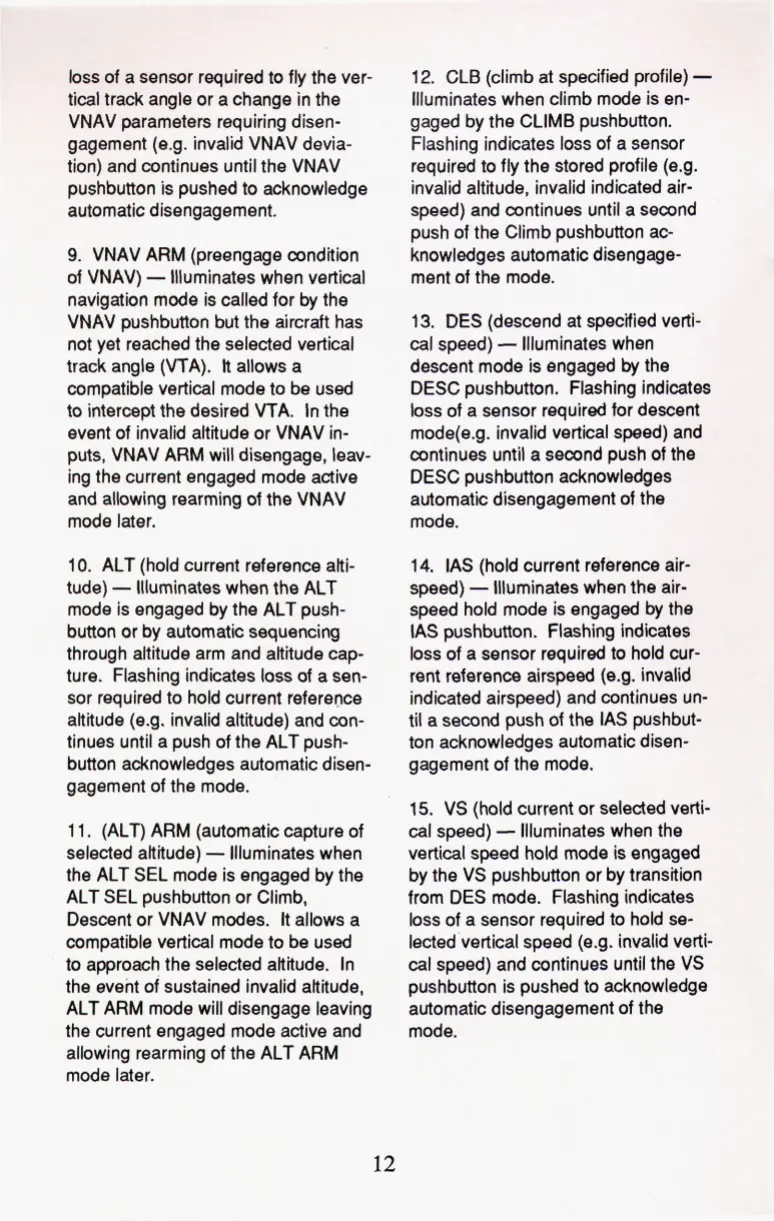

loss
of a sensor required to fly the ver-
tical track angle or a change in the
VNAV
parameters requiring disen-
gagement (e.g. invalid
VNAV
devia-
tion) and continues until the
VNAV
pushbutton is pushed to acknowledge
automatic disengagement.
9.
VNAV ARM
(preengage condition
of
VNAV)
-
Illuminates when vertical
navigation mode is called for by the
VNAV
pushbutton but the aircraft has
not yet reached the selected vertical
track angle
(VTA).
It
allows a
compatible vertical mode to be used
to intercept the desired
VTA.
In the
event of invalid altitude or
VNAV
in-
puts,
VNAV ARM
will
disengage, leav-
ing the current engaged mode active
and allowing rearming
of
the
VNAV
mode later.
10.
ALT
(hold current reference alti-
tude)
-
Illuminates when the
ALT
mode is engaged by the
ALT
push-
button
or
by automatic sequencing
through altitude arm and altitude cap-
ture. Flashing indicates
loss
of a sen-
sor required to hold current reference
altitude (e.g. invalid altitude) and con-
tinues until a push of the
ALT
push-
button acknowledges automatic disen-
gagement of the mode.
11.
(ALT) ARM
(automatic capture of
selected altitude)
-
Illuminates when
the
ALT SEL
mode is engaged by the
ALT SEL
pushbutton or Climb,
Descent or
VNAV
modes. It allows a
compatible vertical mode to be used
to approach the selected altitude. In
the event of sustained invalid altitude,
ALT ARM
mode will disengage leaving
the current engaged mode active and
allowing rearming of the
ALT ARM
mode later.
12.
CLB
(climb at specified profile)
-
Illuminates when climb mode is en-
gaged by the
CLIMB
pushbutton.
Flashing indicates
loss
of a sensor
required to fly the stored profile (e.g.
invalid altitude, invalid indicated air-
speed) and continues until
a
second
push
of
the Climb pushbutton ac-
knowledges automatic disengage-
ment of the mode.
13.
DES (descend at specified verti-
cal
speed)
-
Illuminates when
descent mode is engaged
by
the
DESC pushbutton. Flashing indicates
loss
of
a sensor required for descent
mode(e.g. invalid vertical speed) and
continues until a second push of the
DESC
pushbutton acknowledges
automatic disengagement of the
mode.
14.
IAS
(hold current reference air-
speed)
-
Illuminates when the air-
speed hold mode is engaged by the
IAS
pushbutton. Flashing indicates
loss
of
a sensor required to hold cur-
rent reference airspeed (e.g. invalid
indicated airspeed) and continues un-
til
a
second push of the
IAS
pushbut-
ton acknowledges automatic disen-
gagement of the mode.
15.
VS
(hold current or selected verti-
cal speed)
-
Illuminates when the
vertical speed hold mode is engaged
by the
VS
pushbutton or by transition
from
DES
mode. Flashing indicates
loss of a sensor required to hold se-
lected vertical speed (e.g. invalid verti-
cal
speed) and continues until the
VS
pushbutton is pushed to acknowledge
automatic disengagement of the
mode.
12
