Mounting Requirements
Sensor Orientation
The Side Sensor should be orientated so the embossed logo is parallel to the ground. Orientation is crucial for proper operation due to the
radar's polarized beam profi le.

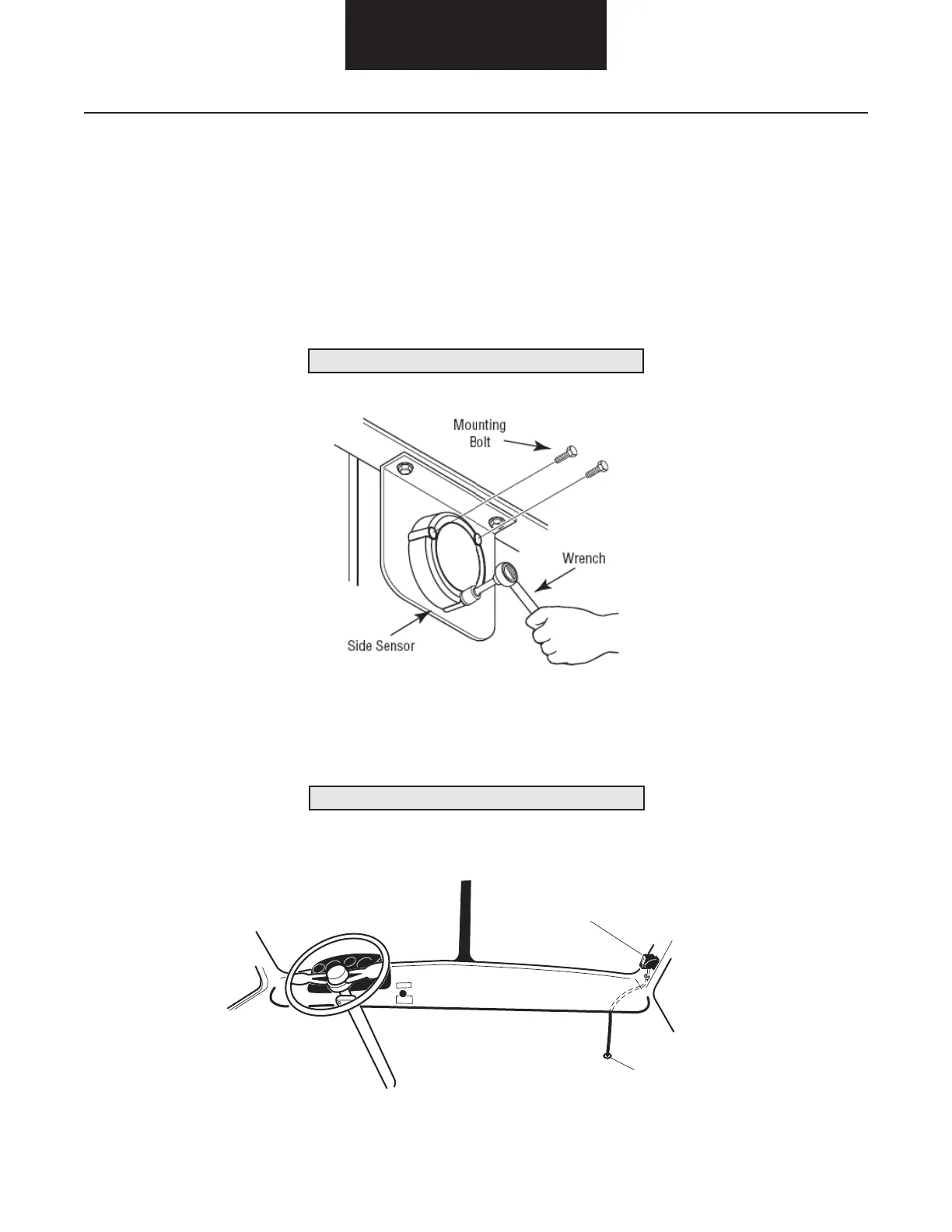

Mounting the Sensor
The sensor should be mounted to the vehicle using 10-24 (6mm) stainless steel hardware. Bolts should be installed from the sensor side,
with fl at washers and nylock nuts on the backside. Torque hardware to a maximum of 22 lbs. in. (2.5 Nm). Do not over torque.
Failure to observe torque setting will result in a damaged or cracked sensor and result in a void of warranty.
Side Sensor Display
The Side Sensor Display (SSD) should be mounted on the inside of the cab to the windshield pillar. The display unit should be positioned
in line with the side view mirror on the same side of the vehicle as the sensor without obstructing the driver's view.
The Side Sensor Display is not weather proof and must be mounted on the inside of the cab.
Failure to observe this warning will result in a void of warranty.
Vehicles with dual left and right side sensors will have a display mounted on both the left and right windshield pillars.
