Reviewing the Installation Orientation
Keep these factors in mind when deciding how to orient the Lift:
• The first thing to figure out is which direction you will be driving the Vehicles in, called the
Approach.
o In most cases, this is simple: there’s a driveway on one side and a wall on the other side.
The driveway is your Approach. This makes the wall side the Front of the Lift and the
driveway side the Rear of the Lift.
o If both sides are open, decide which way you will be driving Vehicles onto the Lift. This is
the Approach; the drive-on side is the Rear of the Lift and the drive-off side if the Front.
•
The Power Unit must be installed on the Powerside Post
. You can identify the
Powerside Post by the Mounting Bracket to which the Power Unit attaches; only one Post that
came with your Lift has a Mounting Bracket.

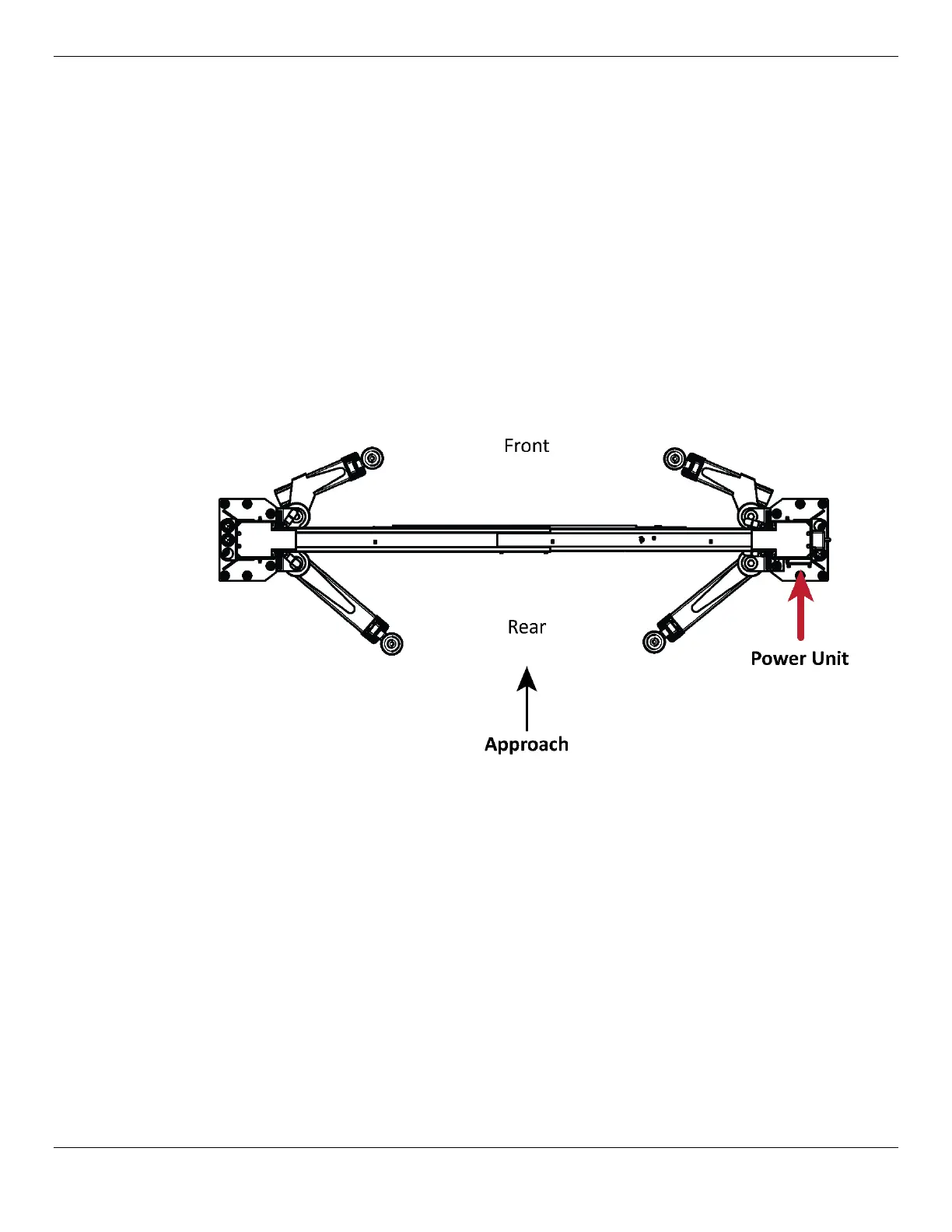

The following illustration shows the Power Unit location for your Lift.
Reference only – do not scale.
