Routing the Hydraulic Hoses
It is easier to put some hydraulic components into position
before
you stand up the Posts.
All 10AP Series Lifts use either three or four Hydraulic Hoses (shown in illustration below):
Lift Model 10AP 10AP-168 10 APX 10APX-181
Hose A
5570277 5570278
Hose B
5570279 5570280
Hose C
5570291 5570292 5570293 5570077
Hose D
5570256 (Wide configuration ONLY)

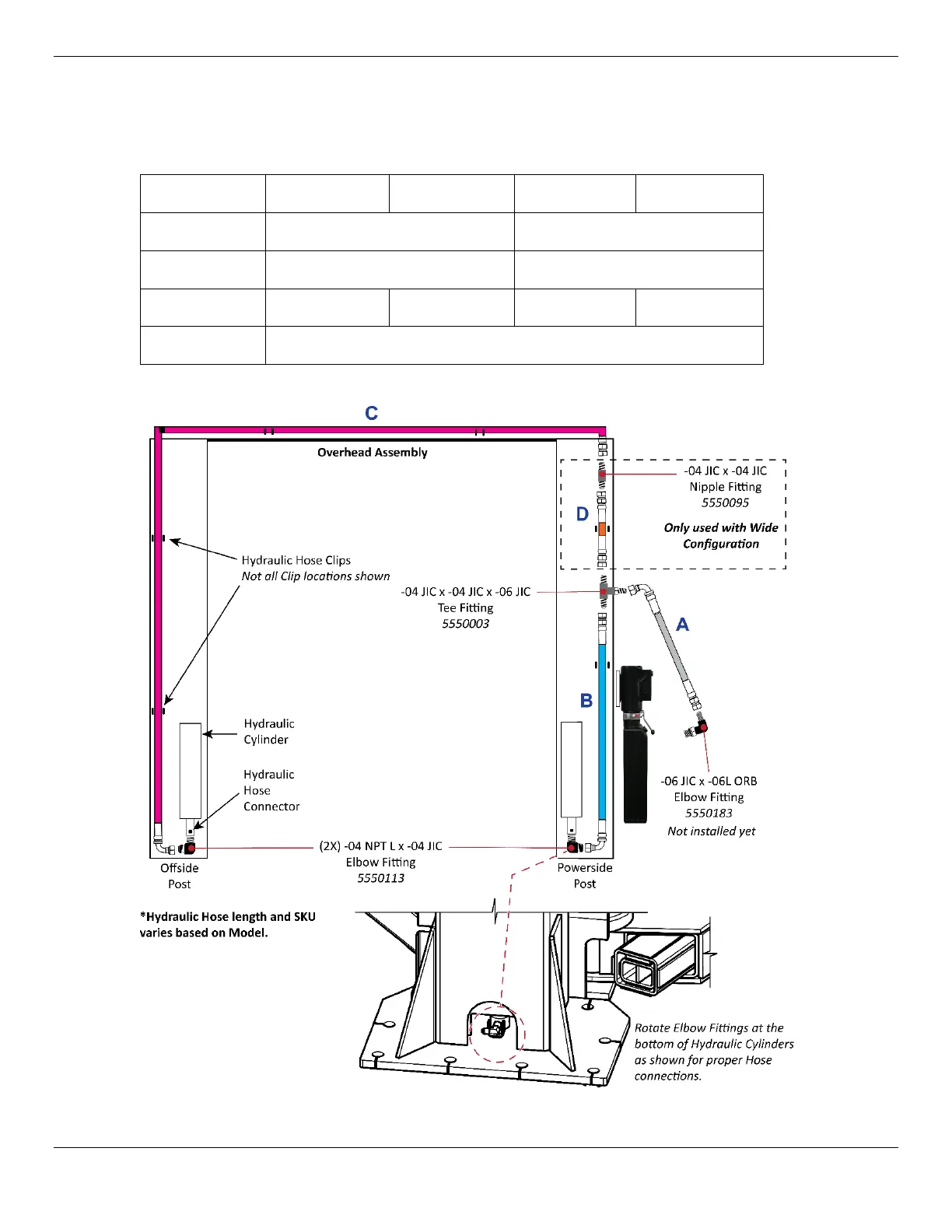

All Hydraulic Hoses and Hydraulic Fitting locations are detailed in the drawing below.
Reference only – do not scale.
