10AP Series Two-Post Lifts 72 P/N 5900265 — Rev. A6 — December 2022
Broken Safety Cable Procedure
If the Safety Cable breaks, the Powerside Lift head will lower but the Offside Lift Head will not.
To release the Offside Safety Lock:
1. Raise the Lift Heads off the Safety Locks.

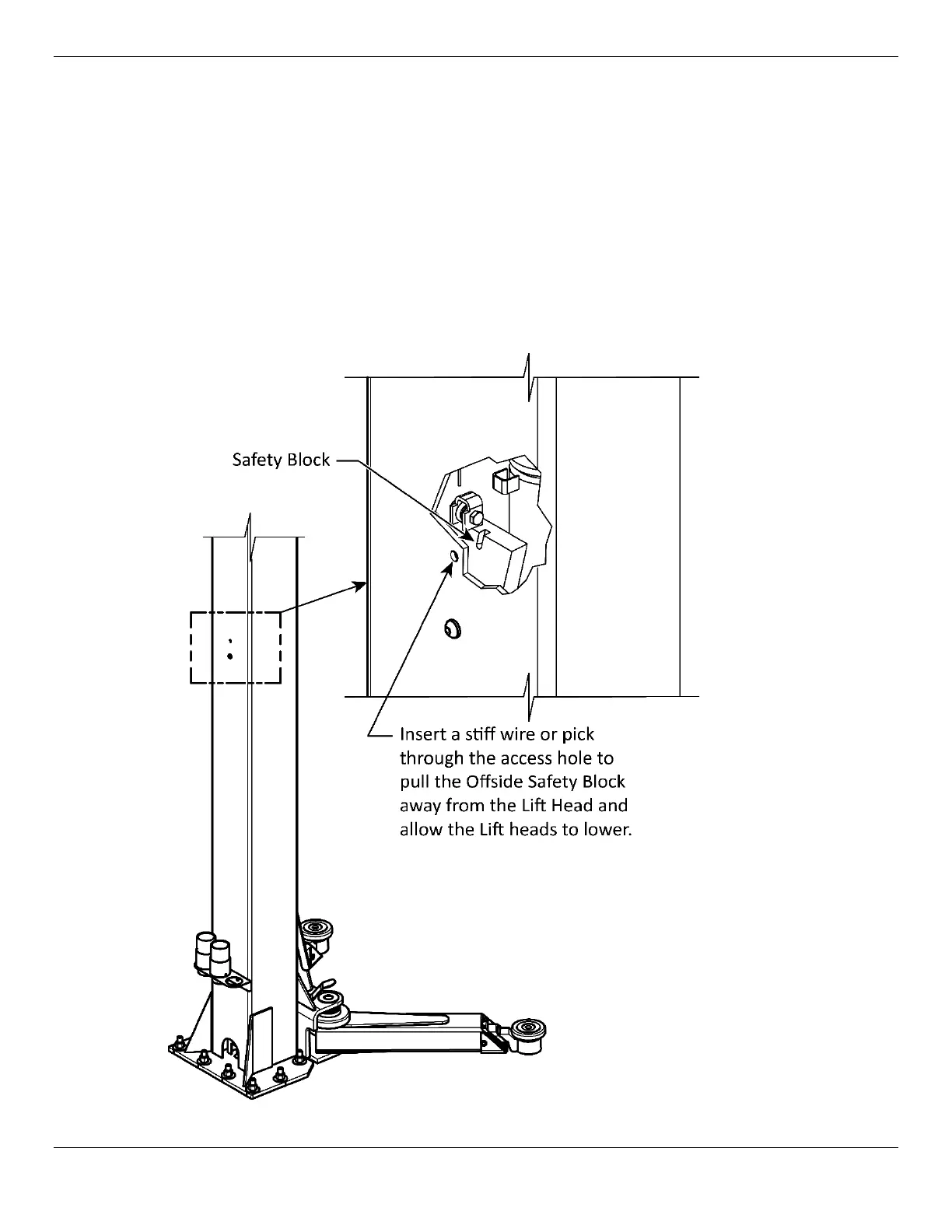

2. Have an assistant reach through the access hole with a stiff wire or pick to pull the Safety Block
away from the Lift Head. See figure below.
3. Hold in the Safety Release on the Powerside Lift Post while holding the lower handle on the Power
Unit.
4. When the Lift heads are on the ground and the Lift is in a safe condition, remove power from the
Lift and replace the Safety Cable.
Reference only – do not scale.
