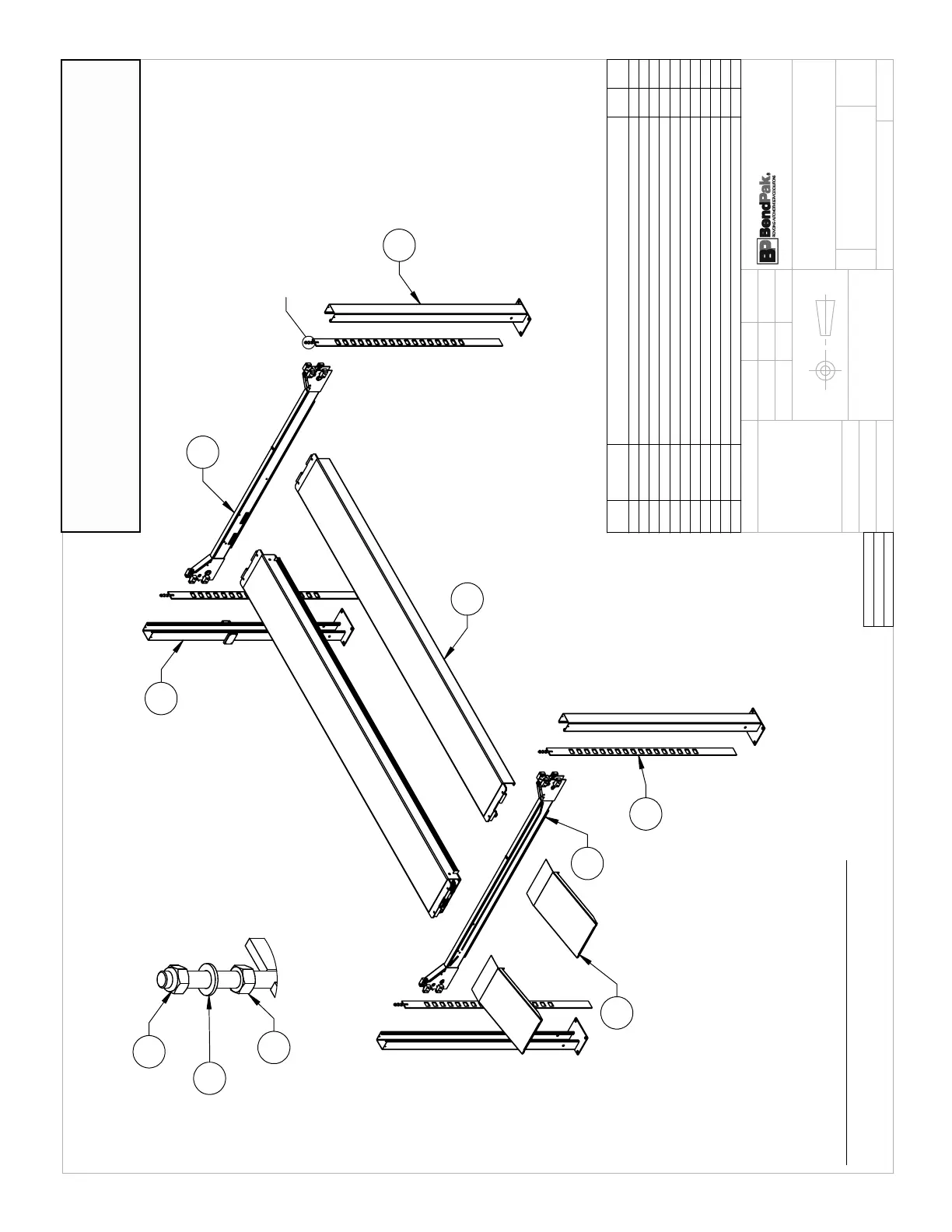

BendPak HD-14SS - Page 46

46
DIMENSIONS ARE IN MM
☺
A
3
4
7
1
6
2
11
DETAIL A
SCALE 1 : 4
10
9
8
REVISION
REV.
DESCRIPTION
DATE
EDITED BY
ECO #
A
PRODUCTION RELEASE
09/26/2008
AC
00140
B
UPDATED BOM REVISION
12/18/2008
AC
00256
C
UPDATED BOM REVISION
01/20/2009
AC
00266
NEXT ASSEMBLY
5260160
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY
REV
1 5215036
HD-14 FRONT CROSSTUBE ASSEMBLY
1
D
2 5215035
HD-14 REAR CROSSTUBE ASSEMBLY
1
D
3 5600190
HD-9/HD-14 EXTENDED POWER SIDE POST WELDMENT
1
A
4 5600191
HD-9/HD-14 EXTENDED POST WELDMENT
3
A
5 5215203
HD-14T POWER SIDE RAMP ASSEMBLY
1
C
6 5600069
HD-14 OFFSIDE RAMP WELDMENT
1
D
7 5600140
HD-14 EXTENDED LADDER WELDMENT
4
A
8 5535021
NYLOCK HEX NUT M16 x 2
4
B
9 5545025
WASHER M16 x 30mm FLAT
4
-
10 5535008
NUT M16 x 2 NL
4
-
11 5215104
DRIVE UP RAMP ASSEMBLY
2
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5245022
HD-14T LIFT
SUPERSTRUCTURE
---
---
09/26/2008
DO NOT SCALE DRAWING
1:45
SCALE:
THIRD ANGLE PROJECTION
TM
01/29/2009
FASEN NUTS, NYLOCK NUTS AND WASHERS ONTO
1.
ENDS OF SAFETY LADDERS FOR SHIPMENT SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
