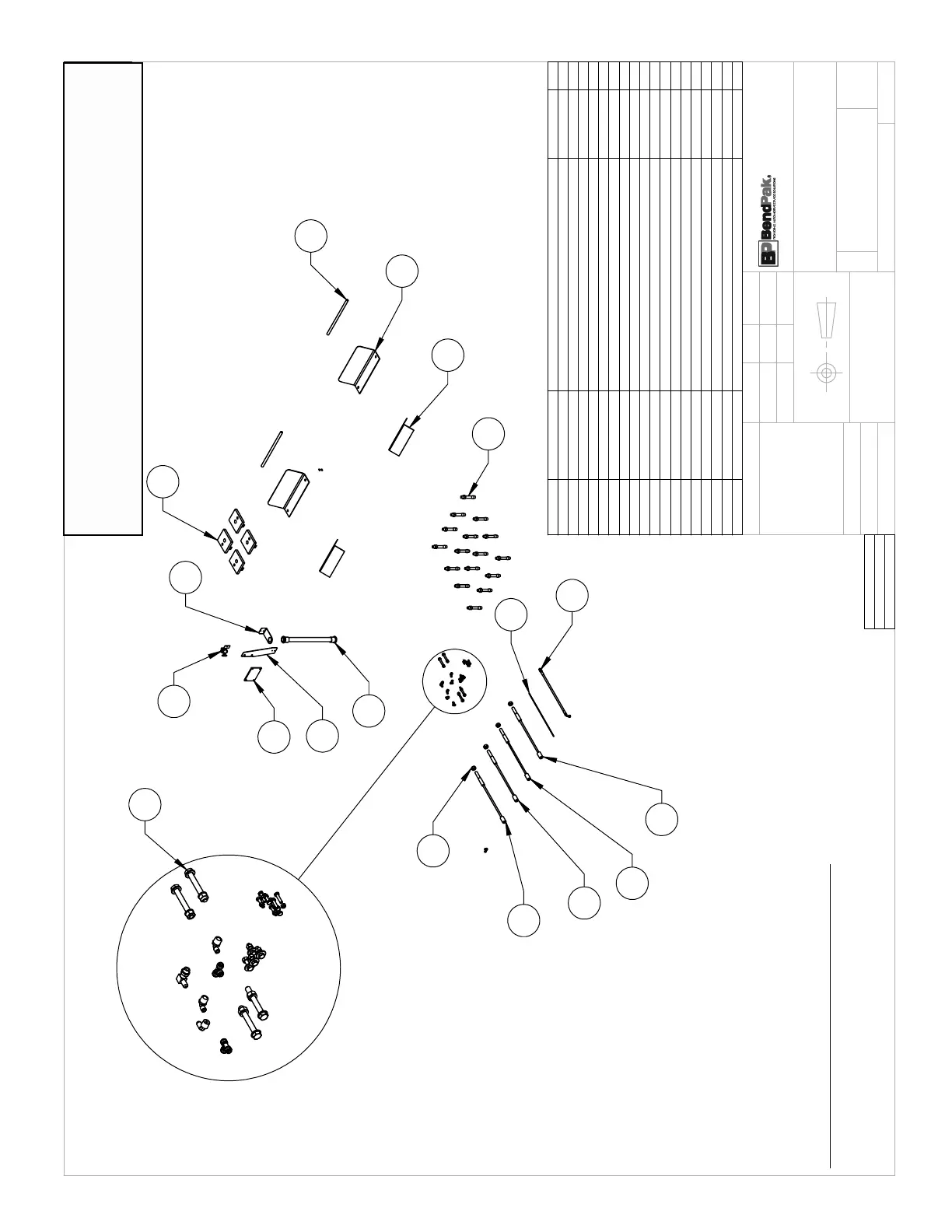

BendPak HD-14SS - Page 47

47
DIMENSIONS ARE IN MM
☺
2
4
3
8
1
5
7
17
6
9
10
11
12
13
14
15
16
18
DETAIL A
SCALE 1 : 10
REVISION
REV.
DESCRIPTION
DATE
EDITED BY
ECO#
B
ADDED 5530456
12/18/2008
AC
00256
C
UPDATED BOM REVISIONS
01/21/2009
AC
00266
D
UPDATED BOM REVISIONS
03/04/2009
AC
00262
NEXT ASSEMBLY
5260160
ITEM NO
PART NUMBER
DESCRIPTION
QTY.
REV
1 5700072
WHEEL CHOCK
2
A
2 5174094
PARTS BAG HD-14 SERIES
1
A
3 5505009
HD-14 DRIVE UP RAMP PIN
2
C
4 5600038
TOP PLATE WELDMENT
4
B
5 5215096
PUSH BUTTON AIR ASSEMBLY
1
C
6 5570050
FLEX TUBE ASSEMBLY 1320mm
1
B
7 5715003
POWER UNIT VIBRATION DAMPENER
1
B
8 5700032 TIRE STOP 2
B
9 5595139
HD-14T CABLE ASSY Ø12 x 3665mm
1
A
10 5595184
HD-14T CABLE ASSY Ø12 x 5270mm
1
A
11 5595186
HD-14T CABLE ASSY Ø12 x 8590mm
1
A
12 5595187
HD-14T CABLE ASSY Ø12 x 10190mm
1
A
13 5570795
1/4" POLY-FLO TUBING
17000mm*
-
14 5570025
HYD. HOSE ASSEMBLY Ø6.4 x 3685mm
1
A
15 5535011
NUT M22 x 2.5 NL
4
-
16 5700029
HD-7P/9 FLEX TUBE BRACKET PLATE
1
D
17 5700033
HD-7/9 FLEX TUBE ANGLE
1
D
18 5530456
AB 3/4" x 4 - 3/4"
16
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC
5250307
PARTS BOX HD-14T
---
---
08/29/2008
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
TM
03/27/2009
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
THREAD NYLOCK NUTS ONTO CABLES PRIOR TO SHIPMENT
2.
HOSES AND CABLES IN REPRESENTATIONAL FORM
3.
(*) LENGTHS FOR REFERENCE ONLY
4.
