P-9000LT/F Low-Rise Pit Lift 15 P/N 5900022 — Rev. B — Nov. 2019

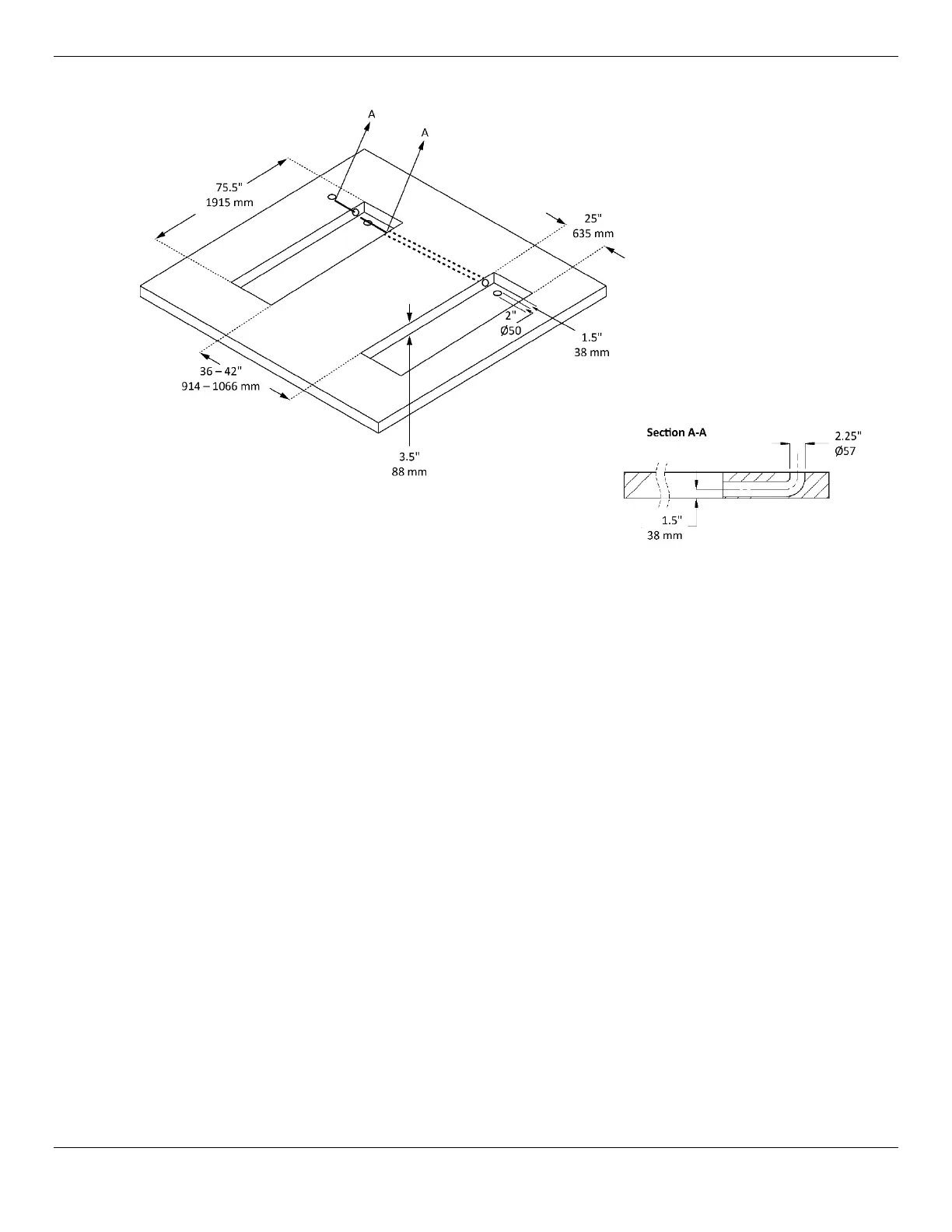

If you need to prepare a recessed surface for the P-9000LTF, use the following diagram as a guide.
There must be 4.25 inches of concrete
below the bottom
of the Concrete Cutouts (for the Anchor
Bolts).
The Concrete Cutout settings for a P-9000LTF are:
• Length. The Length of each Frame is 74.5 inches / 1,890 mm; add 1 inch / 25 mm to get
~75.5 inches / 1,915 mm.
• Width. The Width of each Frame is 24 inches / 610 mm; add 1 inch / 25 mm to get
~25 inches / 635 mm.
• Depth. The Lowered height of each Frame is 3.5 inches / 88 mm. You do
not
add an extra
inch to this value.
• Distance Between. The two Frames can be from 36
to 42 inches / 914 to 1,066 mm
apart. You do
not
add an extra inch to this value.
• Distance to Console. The supplied hydraulic hosing allows the Console to be up to
30 inches / 762 mm from the nearest Base. You do
not
add an extra inch to this value.
NOTICE If you create your Concrete Cutouts and then change your mind about the Distance
Between or find out you made a mistake with one of the numbers, it is very difficult
to fix. BendPak recommends you
double check your plan
several times before
pouring your Concrete Cutouts.
