P-9000LT/F Low-Rise Pit Lift 22 P/N 5900022 — Rev. B — Nov. 2019
Set Up the Console and Attach the Power Unit

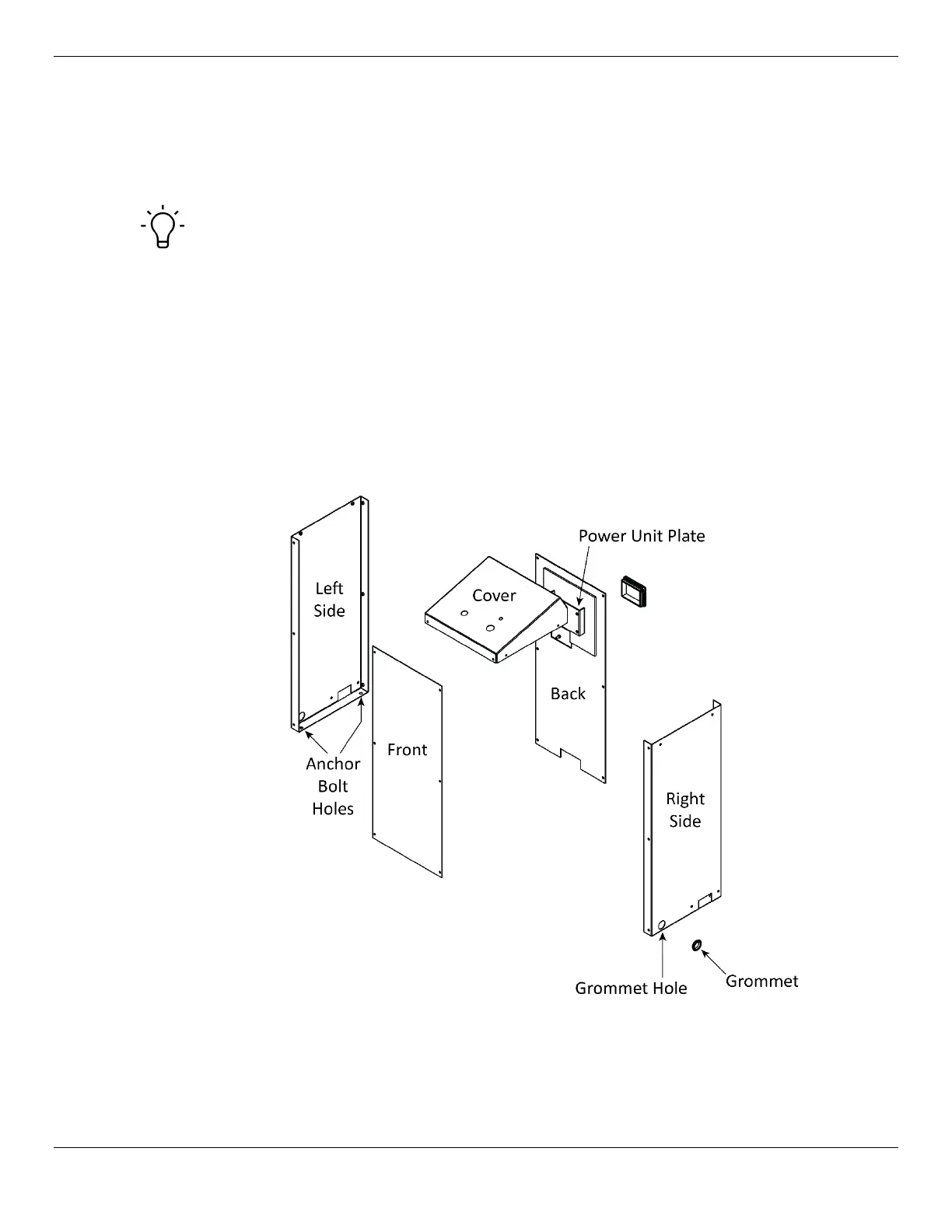

The Console comes unassembled from the factory.
Note: Some Consoles are occasionally shipped assembled.
The included Hydraulic Hoses require the Console to be within 30 inches of the Lift.
Tip If you want to set up the Console further than 30 inches from your Lift, you will need to
get Hydraulic Hoses that are long enough to reach the Lift from the desired location.
You may be able to obtain these lines from the local hydraulics shop, once you know
how long you need them. You will also need longer Return and Air Lines.
The following procedure includes instructions for anchoring the Console into place. If you prefer, you
can defer anchoring the Console.
Why would you defer anchoring the Console for later? Anchoring the Console is a pretty permanent
decision. Delaying the anchoring gives you a chance to evaluate how well you like your first choice for
the location of the Console. It is easier to change the Console location later if it is not anchored.
When you want to anchor the Console into place, return to this section and follow the instructions
starting with Step 8.
