10

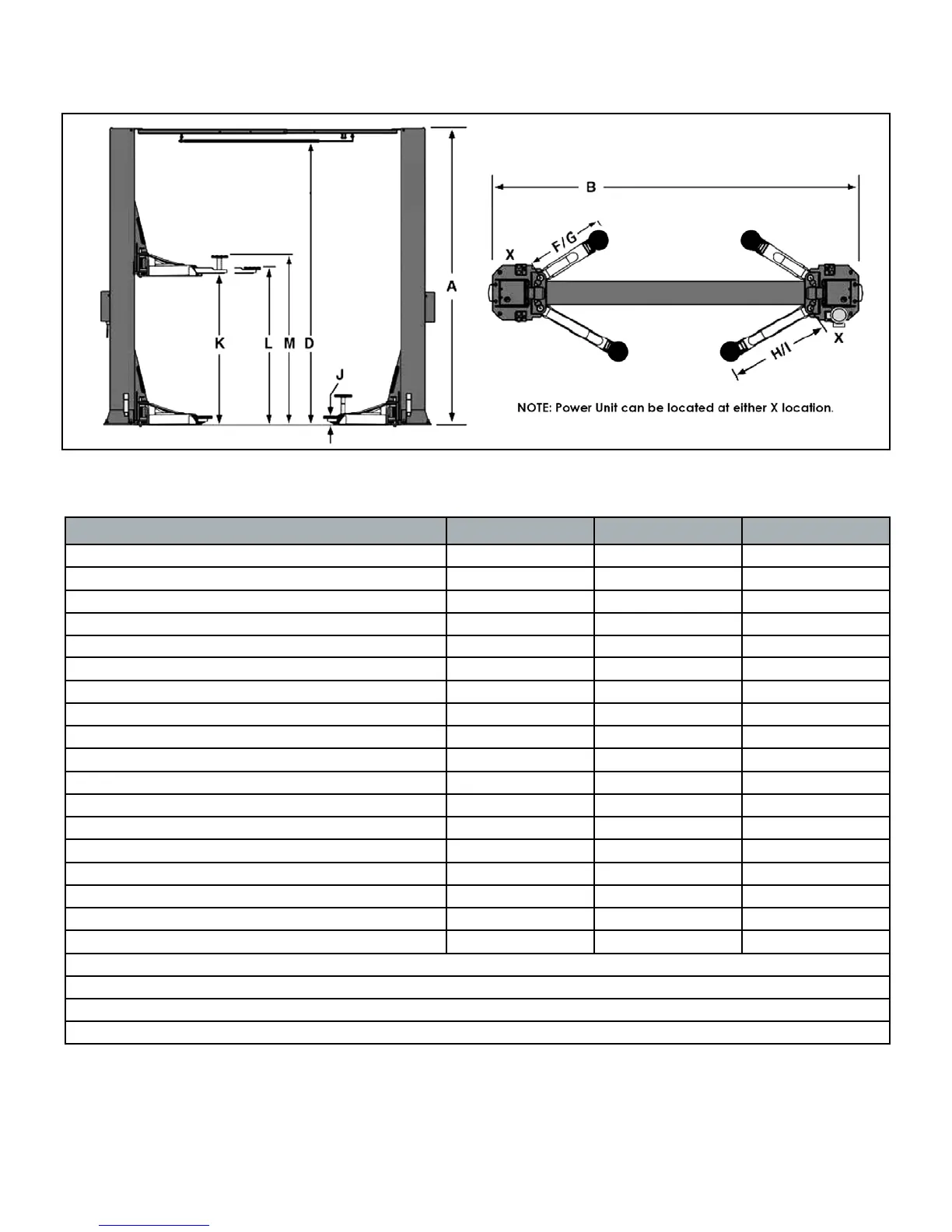

FLOOR PLAN
MODEL XPR-10S-168 XPR-10TS-168 XPR-10S-168-LP
Lifting Capacity 10,000Lbs. / 4536Kg. 10,000Lbs. / 4536Kg. 10,000Lbs. / 4536Kg.
Max Capacity/ Front Axle 5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg.
Max Capacity/ Rear Axle 5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg.
A- Height Overall(*): 169" / 4293mm. 169” / 4293mm. 169” / 4293mm.
B -Width Overall -NARROW CONFIGURATION 132" / 3353mm. 132" / 3353mm. 132" / 3353mm.
B -Width Overall -WIDE CONFIGURATION 145" / 3683mm. 145" / 3683mm. 145" / 3683mm.
D- Floor to Overhead Switch: 165" / 4191mm. 165” / 4191mm.(*) 165” / 4191mm.(*)
F -Reach (Front Arm Min.): 27-1/2" / 698mm. 27-1/2” / 698mm. 28-1/2” / 724mm.
G -Reach (Front Arm Max.): 51-1/2" / 1308mm. 51-1/2” / 1308mm. 47-1/2" / 1206mm.
H- Reach (Rear Arm Min.): 34" / 863mm. 27-1/2" / 698mm. 28-1/2" / 724mm.
I- Reach (Rear Arm Max.): 54-1/2" / 1384mm. 51-1/2" / 1308mm. 47-1/2" / 1206mm.
J- Min. Pad Height: 4" / 102mm. 4" / 102mm. 4-1/4" / 110mm.
K- Rise: 69" / 1753mm. 69" / 1753mm. 69" / 1753mm.
L -Max Lift Height (Pad Only):
73”- 75”/1854mm-1905mm 73”- 75”/1854mm-1905mm 73”- 75”/1854mm-1905mm
M - Max Lift Height (6" Adapter):
75.5”-77.5”/1917mm-1968 75.5”-77.5”/1917mm-1968 75.5”-77.5”/1917mm-1968
Standard Motor(**) 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph.
Time of Full Rise: 45 Seconds 45 Seconds 45 Seconds
Max Load Per Arm: 2,500Lbs. / 1134Kg. 2,500Lbs. / 1134Kg. 2,500Lbs. / 1134Kg.
Emission sound pressure at Operator Position < 70 dB(A)
* An optional bolt-on extension for columns raises the overhead bar an additional 24”. Must be ordered from factory at time of order.
** Special Voltages Available Upon Request.
The design, material and specications are subject to change without notice.
