BendPak XPR-10S User Manual

11

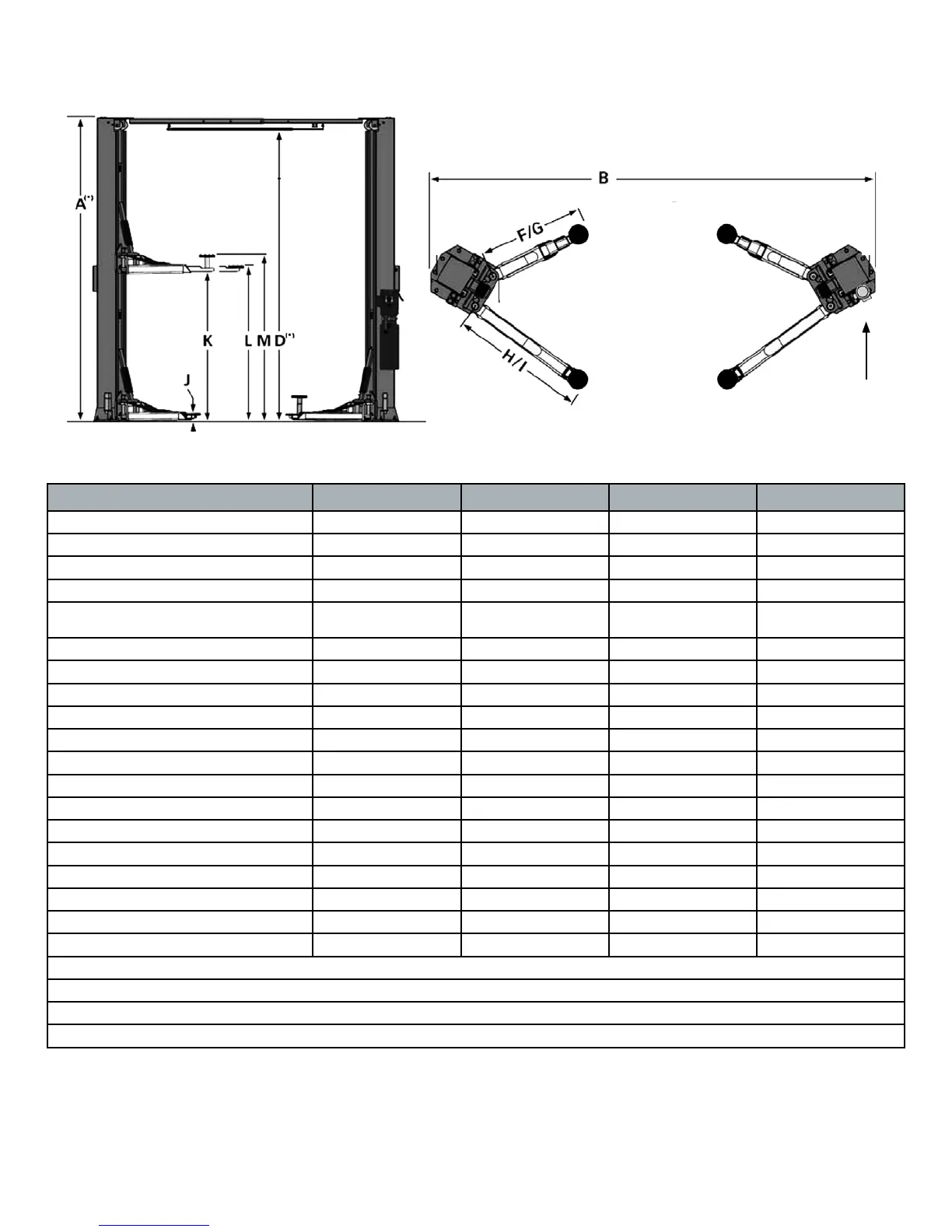

FLOOR PLAN
MODEL XPR-10AS XPR-10AS-168 XPR-10AS-LP XPR-10AS-168-LP
Lifting Capacity
10,000Lbs. / 4536Kg. 10,000Lbs. / 4536Kg. 10,000Lbs. / 4536Kg. 10,000Lbs. / 4536Kg.
Max Capacity/ Front Axle
5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg.
Max Capacity/ Rear Axle
5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg. 5,000Lbs. / 2268Kg.
A- Height Overall:
145" / 3683 mm. (*) 169" / 4293mm. 145" / 3683mm. (*) 169” / 4293mm.
B -Width Overall -NARROW
CONFIGURATION
137" / 3480mm. 137" / 3480mm. 137" / 3480mm. 137" / 3480mm.
B -Width Overall -WIDE CONFIGURATION
145" / 3683mm. 145" / 3683mm. 145" / 3683mm. 145" / 3683mm.
D- Floor to Overhead Switch:
141" / 3581mm. (*) 165" / 4191mm. 141" / 3581mm. (*) 165" / 4191mm.(*)
F -Reach (Front Arm Min.):
23-1/2" / 597mm. 23-1/2" / 597mm.
23-1/2” / 597mm. 23-1/2" / 597mm.
G -Reach (Front Arm Max.):
45-1/2" / 1156mm. 45-1/2” / 1156mm.
38-1/2" / 978mm. 38-1/2" / 978mm.
H- Reach (Rear Arm Min.):
42-1/2" / 1079mm. 42-1/2” / 1079mm. 34-1/2" / 876mm. 34-1/2" / 876mm.
I- Reach (Rear Arm Max.):
60" / 1524mm. 60" / 1524mm. 54-1/2" / 1384mm. 54-1/2" / 1384mm.
J- Min. Pad Height:
4" / 102mm. 4" / 102mm.
4" / 102mm. 4" / 102mm.
Screw Pad Adjustment
2” / 51mm. 2” / 51mm.
2” / 51mm. 2” / 51mm.
K- Rise:
69" / 1753mm. 69" / 1753mm.
69" / 1753mm. 69" / 1753mm.
L -Max Lift Height (Pad Only):
73”-75”/ 1854-1905mm. 73”-75”/ 1854-1905mm.
73”-75”/ 1854-1905mm. 73”-75”/ 1854-1905mm.
M - Max Lift Height (6" Adapter):
75.5”-77.5”/1917mm-1968 75.5”-77.5”/1917mm-1968
75.5”-77.5”/1917mm-1968
75.5”-77.5”/1917mm-1968
Standard Motor(**)
220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph. 220VAC / 60Hz.1Ph.
Time of Full Rise:
45 Seconds 45 Seconds 45 Seconds 45 Seconds
Max Load Per Arm:
2,500Lbs. / 1134Kg. 2,500Lbs. / 1134Kg. 2,500Lbs. / 1134Kg. 2,500Lbs. / 1134Kg.
Emission sound pressure at Operator Position < 70 dB(A).
* An optional bolt-on extension for columnn raises the overhead bar an additional 24”. Must be ordered from factory at time of order.
** Special Voltages Available Upon Request. The design, material and specications are subject to change without notice.
The design, material and specications are subject to change without notice.
NOTE: Power Unit MUST go only where X is located.
X
