8472
2
3
1
NEXT ASSEMBLY
5250203
5250312
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
REV
1 5570129
Ø6.4 ID HYDRAULIC HOSE
8422mm*
--
2 5550325
FTG NPL Ø1/4 CRIMP x -04 JIC
1
--
3 5550345
FTG ELB Ø1/4 CRIMP x -04 JIC
1
--
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5570038
05/10/2018
TM
00946
B
UPDATED TITLE TO REFLECT STANDARD, UPDATED
NEXT ASSEMBLIES
02/25/2020
TM
01107
WHERE USED
10APX
XPR-10XLS
XPR-10XLS-LP
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM

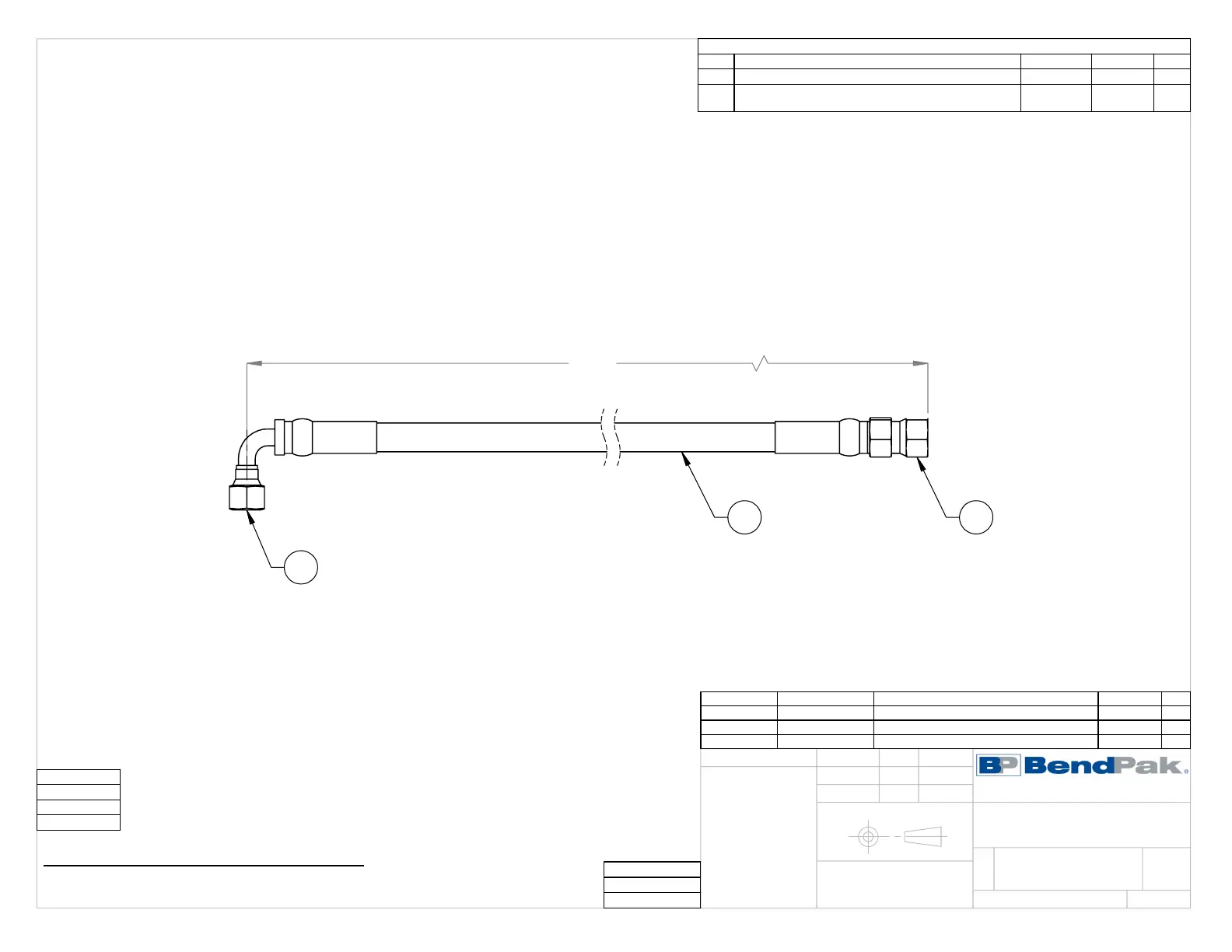

5570095
HYDRAULIC HOSE ASSEMBLY
Ø6.35 x 8472 SB
05/10/2018
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR
04/17/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM
1.
(*)ITEM 1 QTY FOR REFERENCE ONLY
2.
