BendPak XPR-10XLS Service Manual

DIMENSIONS ARE IN MM
☺
E
1
2
3
8
9
10
11

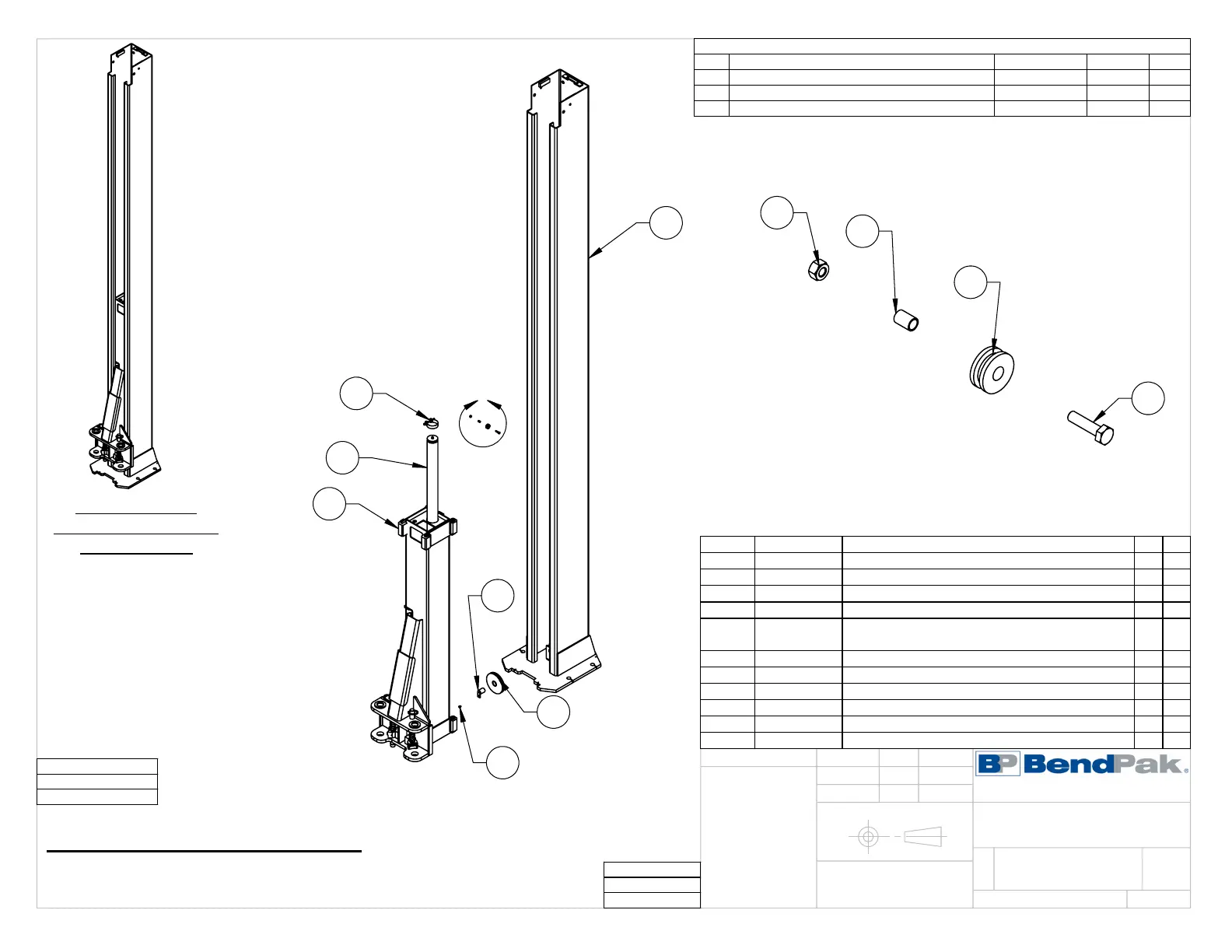

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
DETAIL E
SCALE 2 : 5
6
5
4
7
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5600922 XPR-10XLS/AXLS OFF SIDE POST WELDMENT 1 G
2 5575111 XPR-9S/10 SHEAVE ASSEMBLY 1 G
3 5620141 XPR-9/10 CABLE SHEAVE PIN WELDMENT 1 F
4 5575112 D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE 1 C
5 5565350
D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE
SPACER
1 C
6 5535357 NUT M6 x 1.0 NL 1 -
7 5530756 HHB M6 x 1 x 25 1 -
8 5530030 HHB M6 x 1 x 8 1 -
9 5215441 XPR-10XLS/AXLS LIFT HEAD ASSEMBLY 1 G
10 5502013 CYLINDER ASSEMBLY Ø2.0 X 75" 1 D
11 5701242 CYLINDER CLAMP ASSY 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H UPDATED BOM REVISION 05/14/2019 TS 01086
J UPDATED BOM REVISION 02/21/2020 TM 01107
K UPDATED BOM REVISION 11/03/2020 TM 01226
NEXT ASSEMBLY
5245045
5245049
WHERE USED
XPR-10XLS SERIES
XPR-10AXLS SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
HG
5215440
XPR-10XLS/AXLS OFF
SIDE POST ASSEMBLY
10/08/2015
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
OR
11/04/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.
