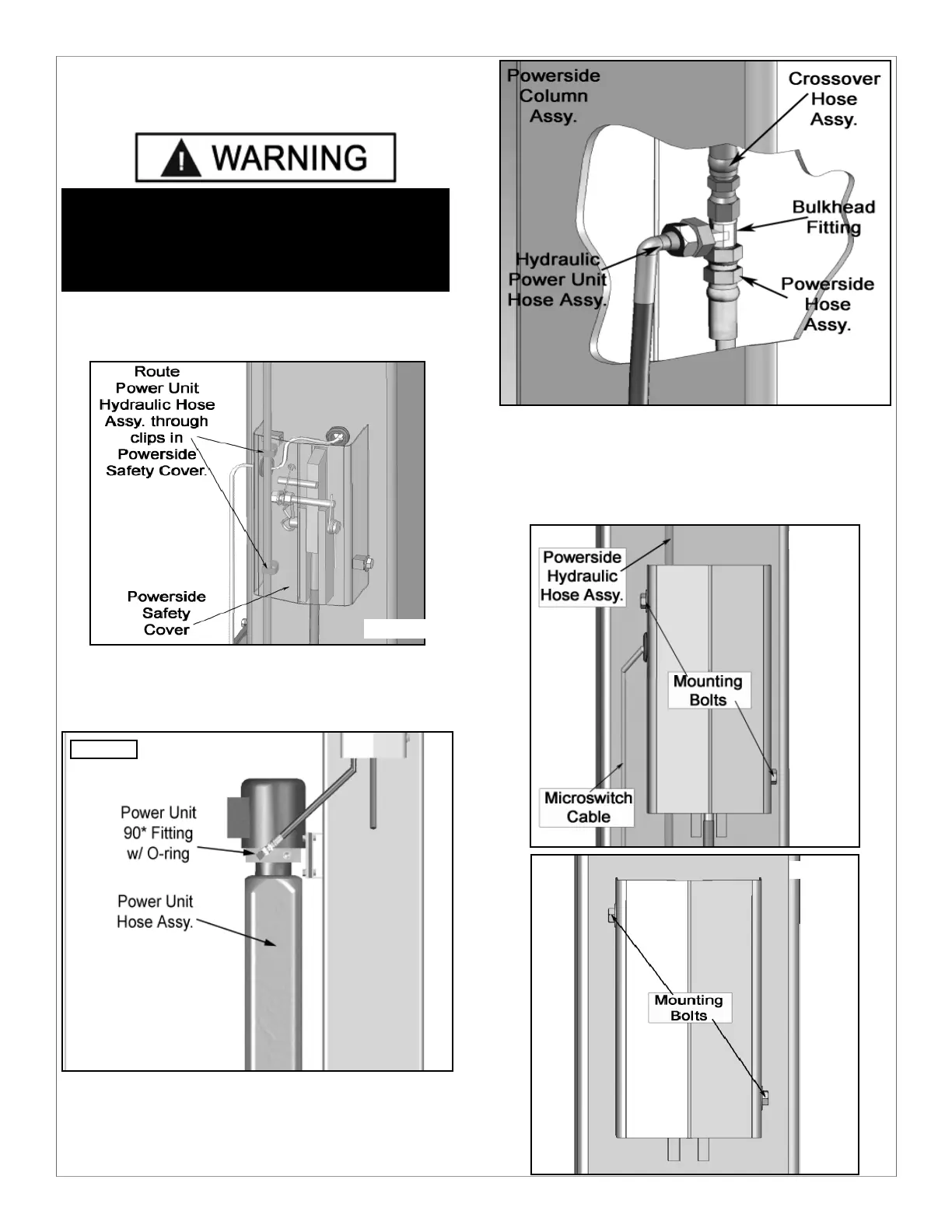

STEP 13
( Installing Power Unit Hose Assy
and Powerside Safety Cover )
1. With Powerside Safety Cover loosely positioned route
Power Unit Hydraulic Hose through clips in Powerside
Safety Cover. (See Fig. 13.1)
2. Install the 90* Fitting w/ O-ring into the Power Port
of the Power Unit, use Teflon Tape on the Pipe Theads
ONLY. Connect Power Unit Hose Assy to 90* fitting on
Power Unit. (See Fig. 13.2)
3. Connect other end of Power Unit Hydraulic Hose
Assy. to the Bulkhead Fitting. (See Fig. 13.3)
DO NOT USE TEFLON TAPE ON JIC FITTINGS.
4. After Safeties have been adjusted and checked for-
proper operation, install and Tighten Powerside Safety
Cover and Offside Safety Cover mounting bolts.
(See Fig. 13.4 and 13.5)
20
Fig. 13.4
Fig. 13.5
Fig. 13.3
Fig. 13.1
WARNING !
Power Unit Hydraulic Hose Assy. must be routed
through the Clips in Powerside Safety Cover.
Failure to do so can result in personal injury or
damage to the lift.
Fig. 13.2
