22

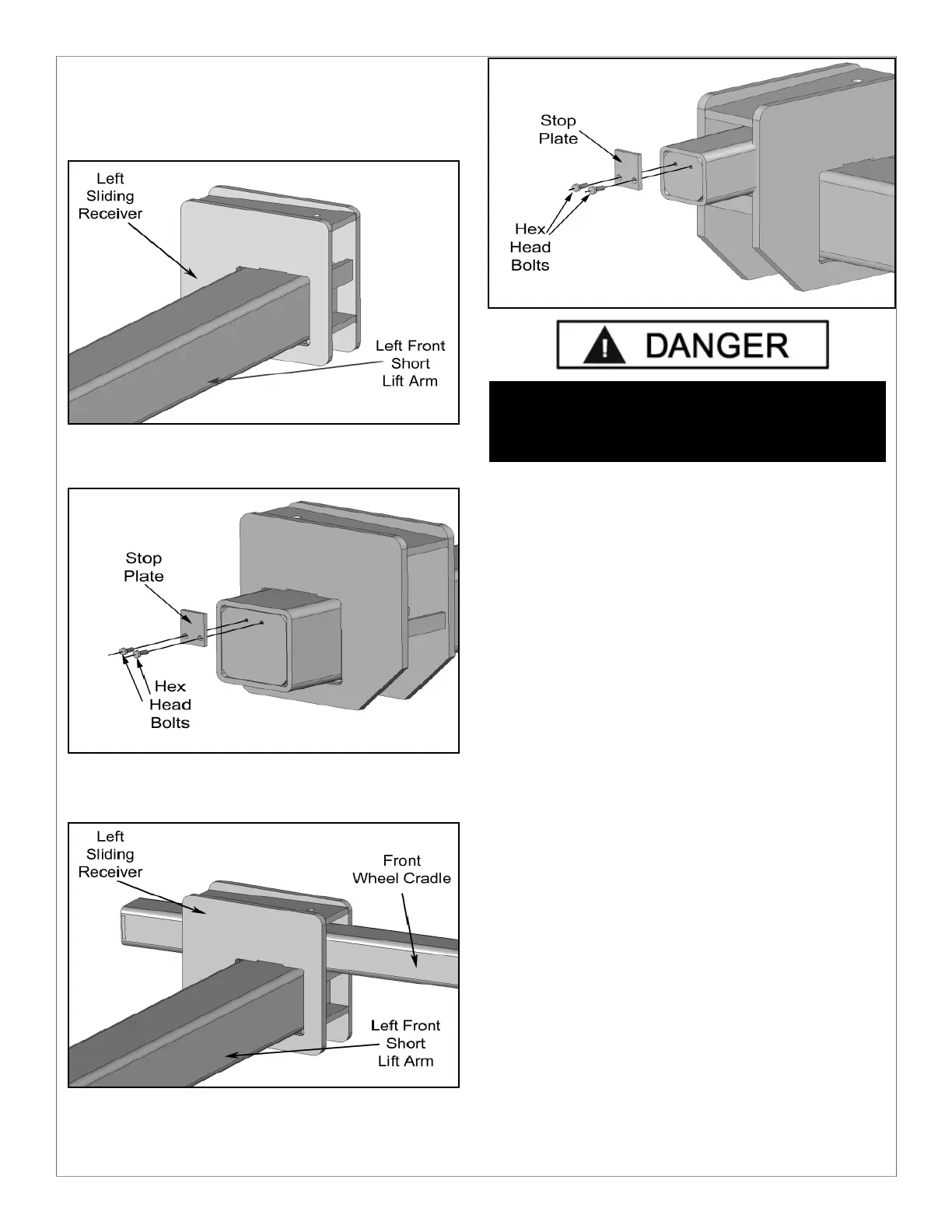

STEP 15
( Front Wheel Cradle Installation. )
1. Slide the Left Hand side Sliding Receiver onto the Left
Front Short Lift Arm. (See Fig. 15.1)
2. Install the Stop Plate onto the end of the Left Front
Short Lift Arm. ( See Fig. 15.2)
3. Slide the Left Front Wheel Cradle assembly into the
Sliding Receiver. (See Fig. 15.3)
4. Install Stop Plate onto the end of the Wheel Cradle Arms
with two Hex Head Bolts. (See Fig. 15.4)
5. Repeat procedures in Step 1-4 for the Right Hand Side
Sliding Receiver and the Right Front Wheel Cradle Assem-
blies.
DANGER!
STOP PLATES MUST BE INSTALLED
BEFORE OPERATING THE LIFT.
Fig. 15.1
Fig. 15.2
Fig. 15.3
Fig. 15.4
