9
STEP 3
( Column Preparation )
COMPLETE THE FOLLOWING
PRIOR STANDING UP COLUMNS.

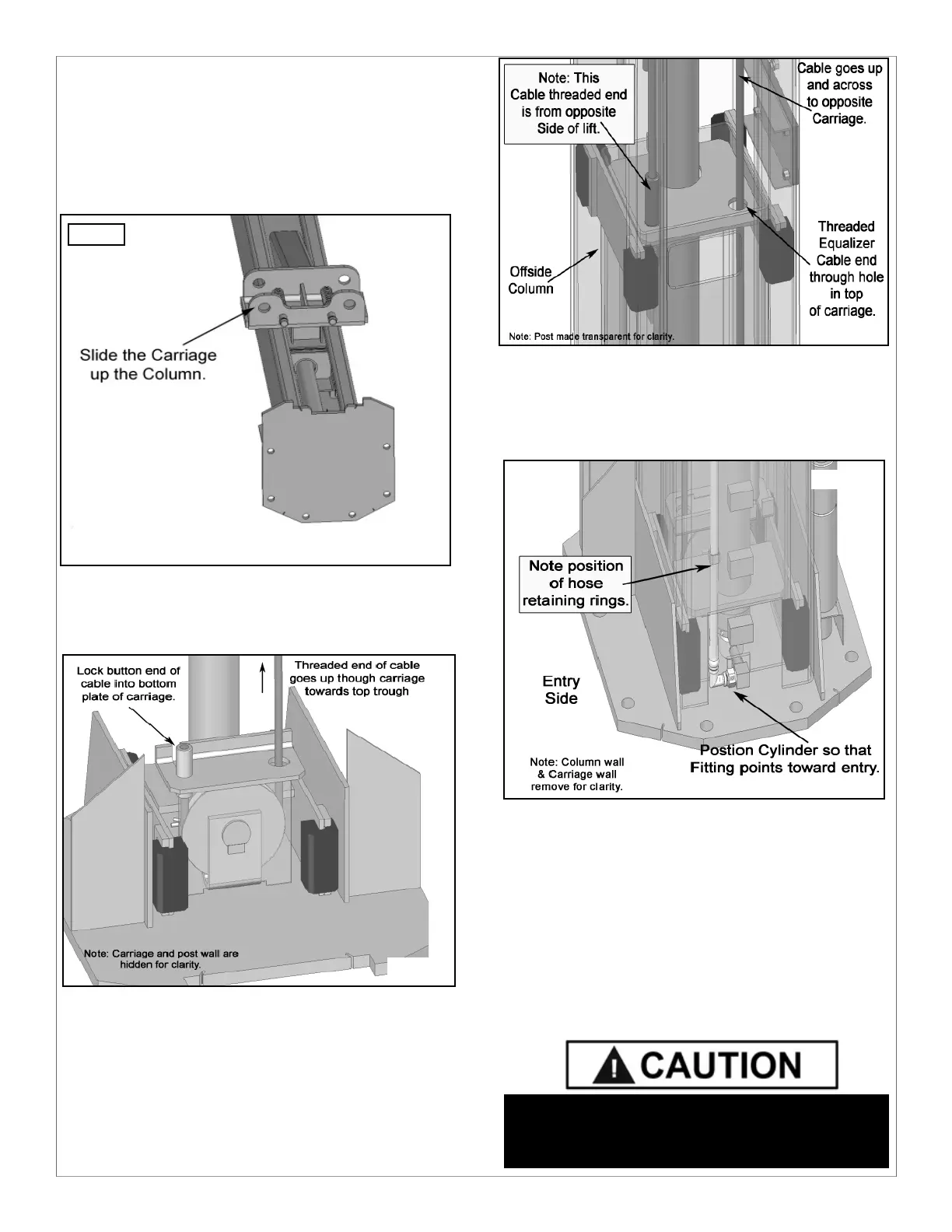

1. Slide Carriage up Column to aid in Pulley removal.
(Fig. 3.1)
2. Remove Equalizer Cable Pulley. Route the plug end
of each Equalizer Cable around the bottom Pulley and
lock into bottom plate of Carriage. (Fig. 3.2)
3. Feed threaded end of Cable up through Carriage. Leave
excess Cable resting on top of Carriage until further steps are
required. (See Fig 3.3 )
4. Install the Cylinder Fittings in Cylinder ports, use Teflon
Tape on pipe threads. DO NOT use Teflon tape on the JIC
Hose Fittings. Pay attention when installing the Cylinders
in step three to ensure that each Fitting points towards the
entrance side of lift. (See Fig 3.4)
5. Slide the Carriage all of the way back down until the
Cylinder makes contact with the base plate of the Column.
6. Route both Hoses in their respective Columns PRIOR
to raising Columns to their vertical position. When rout-
ing the Hydraulic Hose through the Columns, make sure
to route through the retaining clips welded inside each
Column. Make sure that the Hose is clear of any moving
parts. It may be necessary to tie Hose clear of obstruction
by using nylon tie straps or wire.
Fig 3.2
Fig 3.3
Fig 3.1
Fig 3.4
CAUTION !
Be sure to route the Hydraulic Hoses through the
retaining clips welded inside each Column.
