BendPak XPR-9 Series User Manual

XPR-9 Series Two-Post Lifts 20 P/N 5900371 — Rev. D2 — May 2023
Install the Equalizing Cables
It is much easier to put the Equalizing Cables into position before you stand up the Posts.
The Equalizing Cables keep the Lift Heads synchronized. If one Lift Head lowers or raises faster than
the other Lift Head; the Vehicle on the Lift would become unstable and could fall.

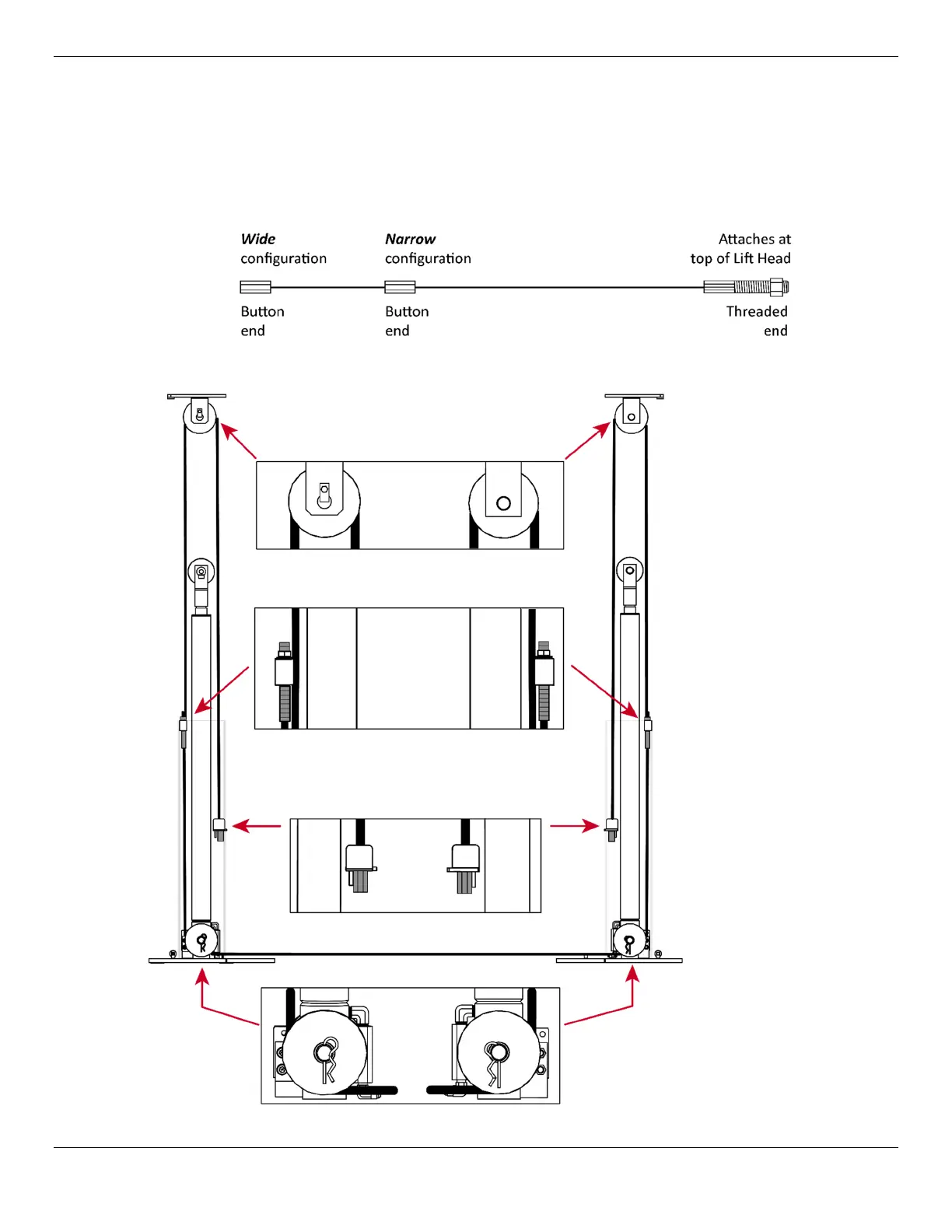

The following illustration shows an Equalizing Cable; the ends are exaggerated for clarity.
When Equalizing Cables are fully routed, they are mirror images of each other.
XPR-9TF:
(2X) Cable Assembly
5595746
XPR-9SBT:
(2X) Cable Assembly
5595359
