XPR-9 Series Two-Post Lifts
21
P/N 5900371 — Rev. D2 — May 2023
CAUTION
BendPak recommends wearing gloves while handling the Equalizing Cables.
To put the Equalizing Cables into position:
1. Using a forklift or equivalent, move the Posts near the Chalk Lines.
2. Place both Posts either flat on the ground or with their tops elevated on a sawhorse or similar; the
insides of the Posts need to be accessible, facing up.
3. Slide the Lift Heads away from the bottoms of both Posts by at least 24 inches / 610 mm, to
provide some space to work.

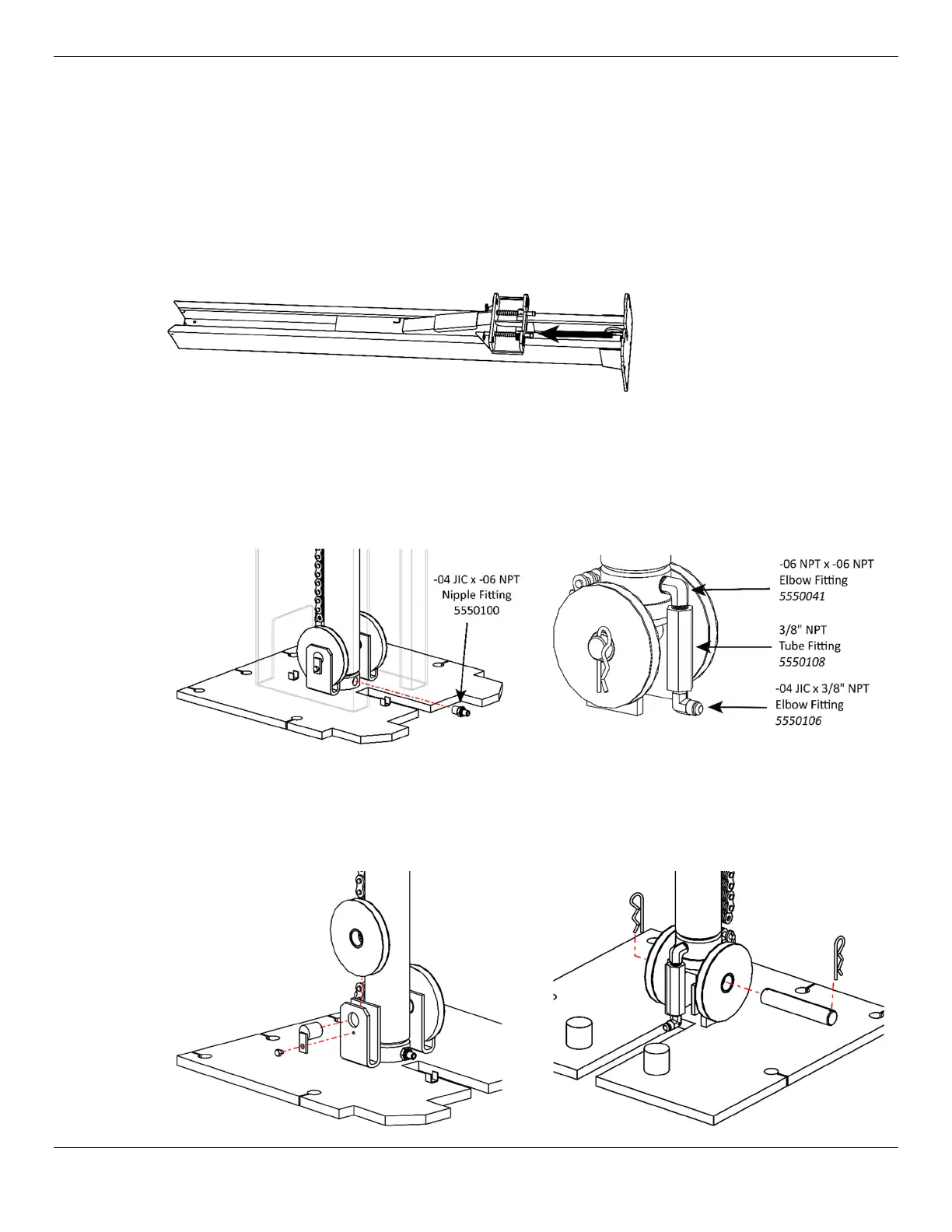

4. XPR-9TF users: remove the shipping plug from the Lift Cylinder port, then install a Nipple Fitting
(5550100), making sure to use Thread Sealant on the NPT threads only.
XPR-9SBT users: remove the shipping plug from the cylinder port, then install three Cylinder
Fittings, making sure to use Thread Sealant on NPT Threads only.
X
PR-9TF:
XPR-9SBT:
5. Remove the two Post Sheaves from the bottom of the Post. Keep the Cable Sheaves, Sheave
Pins, and Hair Pins nearby; you will be re-installing them soon.
X
PR-9TF:
XPR-9SBT:
