6. Locate the two Equalizing Cables.
For both lifts, the Equalizing Cables are the same length, so it does not matter which one you
install first.
7. For XPR-9TF installations, determine the wide or narrow Button End you are going to use on the
Cable.

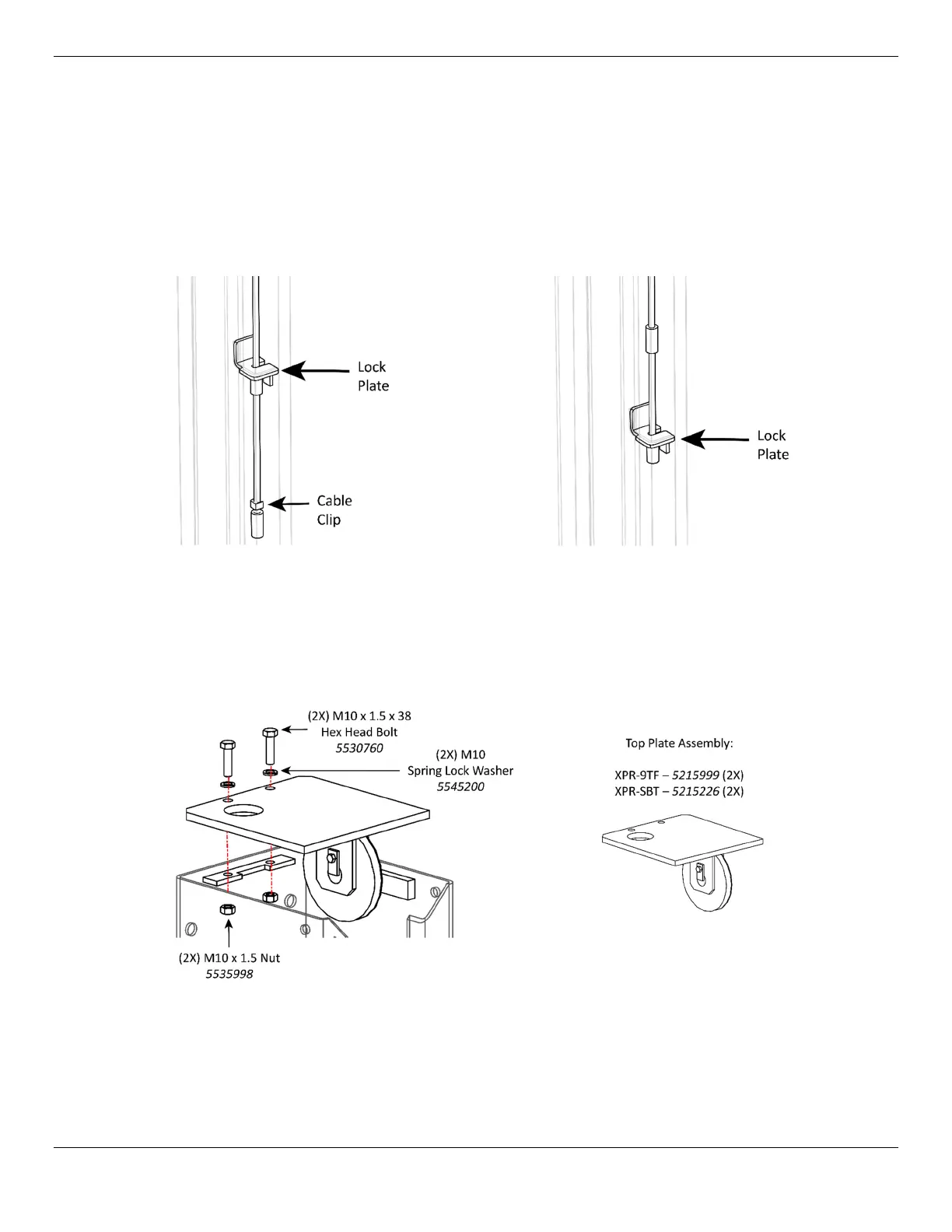

8. Secure the Button end at the Carriage Lock Plate located inside each Lift Head.
Narrow Configuration: Wide Configuration:
⚠ CAUTION Failure to secure the Button end may result in Lifting Chain failure or Lift
malfunction.
9. Route the threaded end of the Cable upwards to where the Top Plate Sheave is.
10. Install the Top Plates on the top of the Posts and thread the cable around the Sheave. Refer to the
figure below to assemble.
11. Route the Cable down the Lift Post and around the Sheave at the bottom of the Post and out to
the Opposite Post.
12. Route the Cable around the bottom Sheave and up to the Lift Head.
13. Insert the threaded end of the cable into the Cable Holder. Use the Washer and Nut loosely secure
the cable end to the Lift Head.
