XPR-9 Series Two-Post Lifts
23
P/N 5900371 — Rev. D2 — May 2023

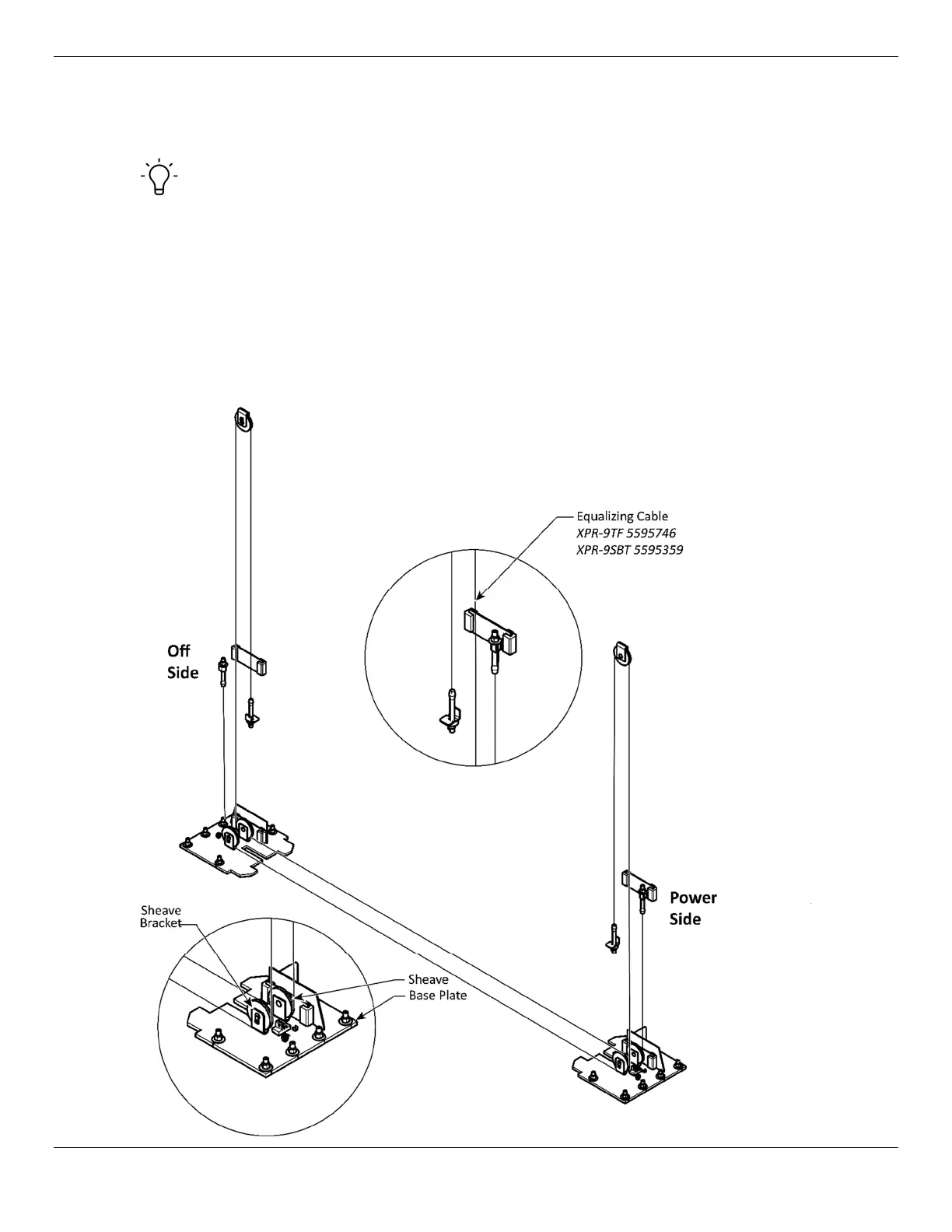

14. Retrieve the remaining Cable and repeat the procedure beginning on the opposite Post.
It can be difficult to get the Button End into the Slot, as it may be hard to reach the Lock Plate. You
may want to use a metal rod or a long tool to push the Button End into the Slot.
Tip If you are having problems getting the Button end into the Slot, you might want to try
pushing the Button end past the Lock Plate. Then move the Equalizing Cable around to
get the cable into the Slot. Once the cable is in the Slot, pull on the other end of the cable
to slide the Button end into the Slot. Try to keep the cable taut until the Equalizing Cable
is connected at the other end.
15. After the Cables are in place. Reinstall all Sheaves and pins that were removed.
16. Verify the Pulley plate at the top of each post is secured.
17. Move both Lift Heads back down to the bottom of each Post.
