BendPak XPR-9 Series User Manual

XPR-9 Series Two-Post Lifts 53 P/N 5900371 — Rev. D2 — May 2023

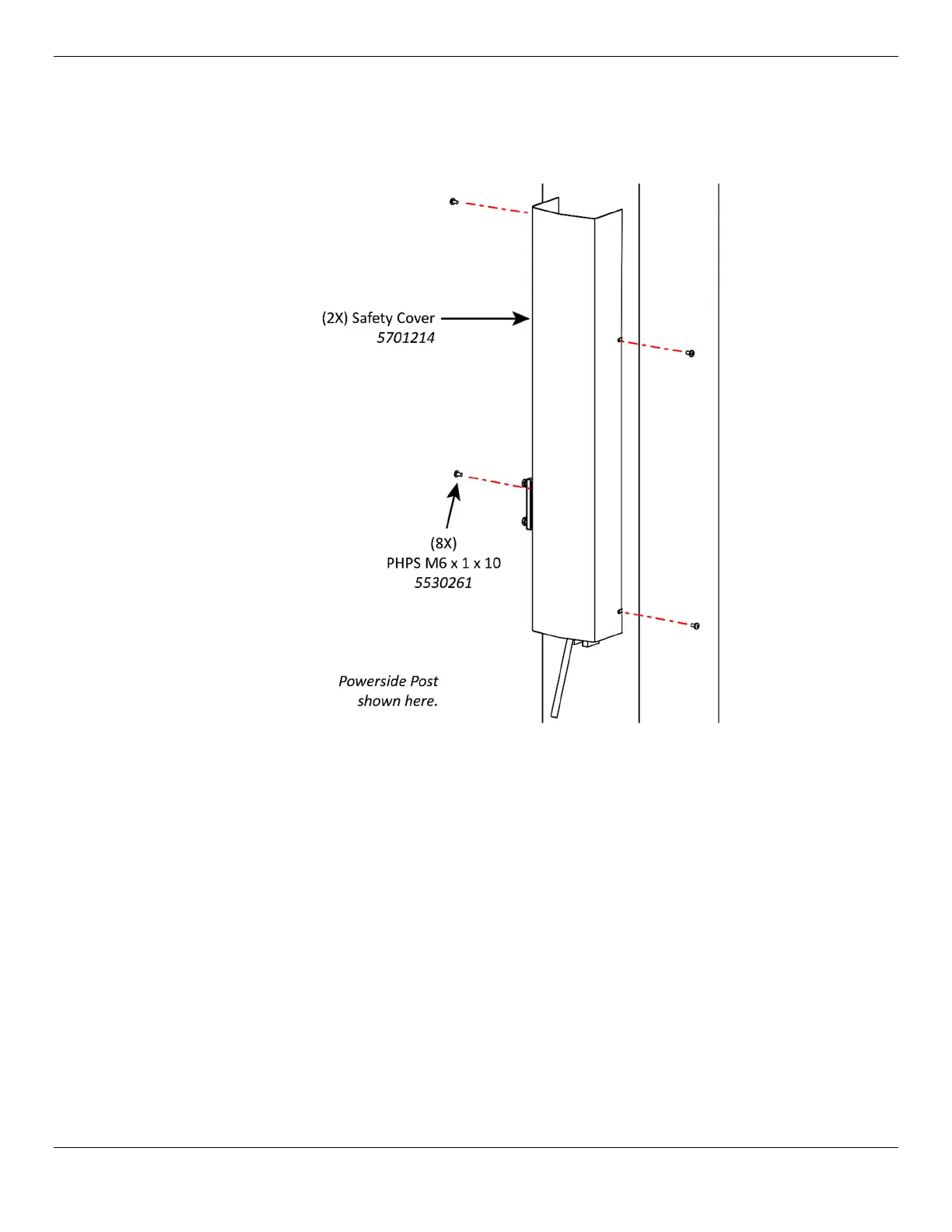

Installing the Safety Covers – XPR-9SBT only
The XPR-9SBT Safety Covers are identical and can be installed in either orientation.
Both Safety Covers connect to their Posts via blocks in the upper left and lower right corners.
To install the XPR-9SBT Safety Covers:
1. Locate the two Safety Covers and eight M6 Cover Screws.
2. On the Offside Post, install the Cover Screws in each block, making sure to leave enough
space between the Block and the Cover Screws to slide in the Safety Cover.
3. Slide the Offside Safety Cover for the Offside Safety into position, then fully tighten all Cover
Screws into their blocks so that the Safety Cover is held securely.
4. On the Power Side Post, install the Cover Screws in each block, making sure to leave enough
space between the Block and the Cover Screws to slide in the Safety Cover.
5. Slide the Power Side Safety Cover for the Power Side Post into position, then fully tighten all Cover
Screws into their blocks so that the Safety Cover is held securely.
6. Fully tighten all Cover Screws into their blocks so that the Safety Cover is held securely.
