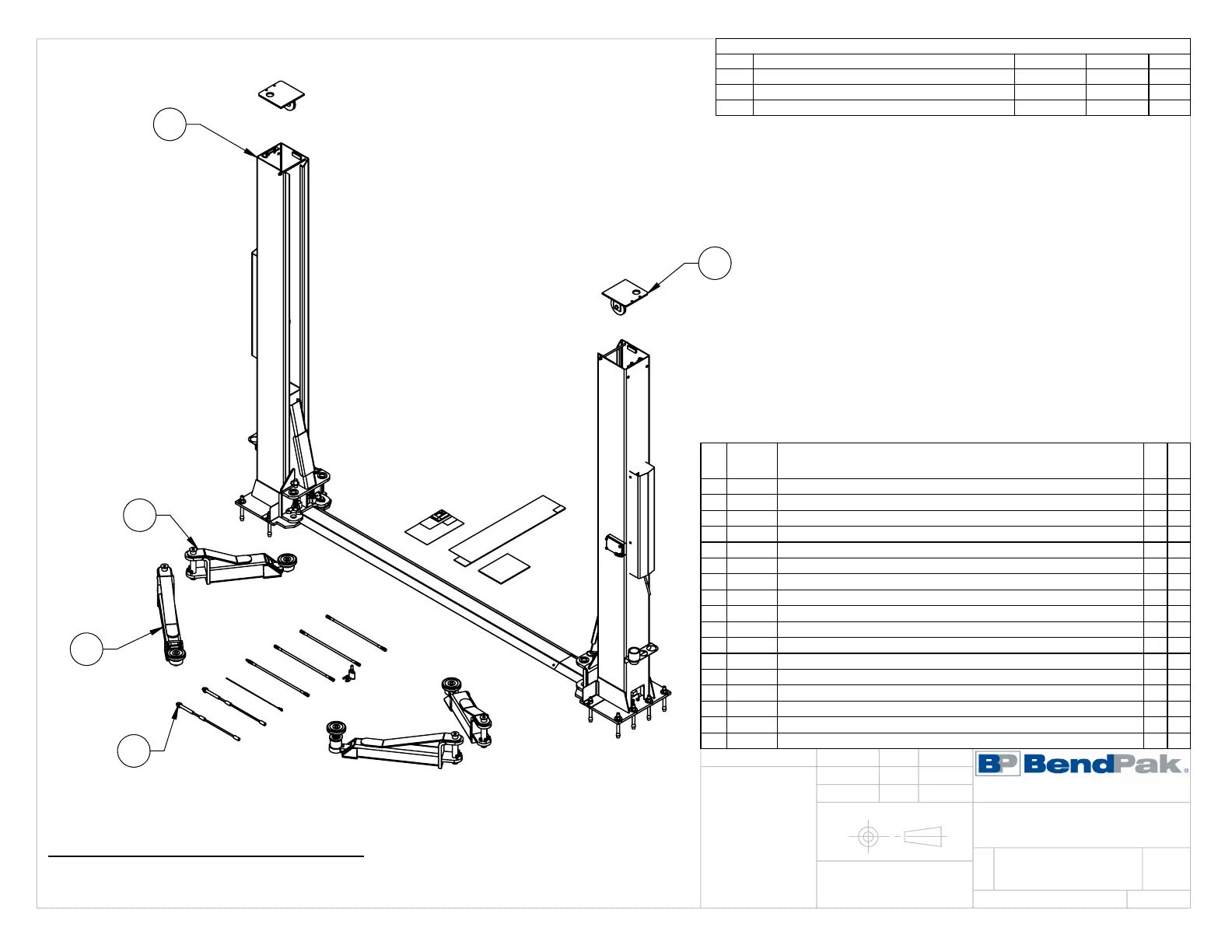

BendPak XPR-9S Service Manual

DIMENSIONS ARE IN MM
☺
1
4
2
3
5
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5245225 XPR-9 LIFT SUPERSTRUCTURE 1 W
2 5250037 XPR-9S PARTS BOX 1 Q
3 5215287 XPR-9S/10S LOW PROFILE TRIPLE TELESCOPING ARM ASSEMBLY 2 L
4 5215226 XPR-9/9D TOP EQUALIZER PULLEY PLATE ASSEMBLY 2 K
5 5215700 XPR-9S/10S LOW PROFILE MEDIUM ARM ASSEMBLY 2 K
- 5905131 2 POST DECAL KIT, LESS ALI 1 E
- 5905109 WARNING ALI/WL 101 1 --
- 5905402 MAX CAPACITY 9K DANGER LABEL, ENGLISH-FRENCH 1 --
- 5905465 MANUFACTURER LABEL 1 --
- 5905650 MAX CAPACITY NTRL 9K LABEL, ENGLISH-FRENCH 1 --
- 5905940 PRODUCT DATA LABEL 1 --
- 5905950 SERIAL TAG A 1 --
- 5905285 SERIALTAG EXTERIOR PEEL OFF INVENTORY LABEL 1 --
- 5905377 NOTICE LABEL, ALI/WLSIA01 1 --
- 5905414 GP/XPR LOCK-RELEASE LABEL 1 --
- 5906044 AMERICAN OWNED LABEL 1 --
- 5905775 CALIFORNIA PROP. 65 LABEL 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
U UPDATED BOM REVISION 11/03/2020 TM 01226
V ADDED 5906044, UPDATED BOM REVISION 06/24/2021 CA 01310
W ADDED 5905775 08/09/2021 TM 01321
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
W
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
JM
5260558
XPR-9S PRODUCTION
LIFT VER E
12/14/2015
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
OR 08/12/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 3.
