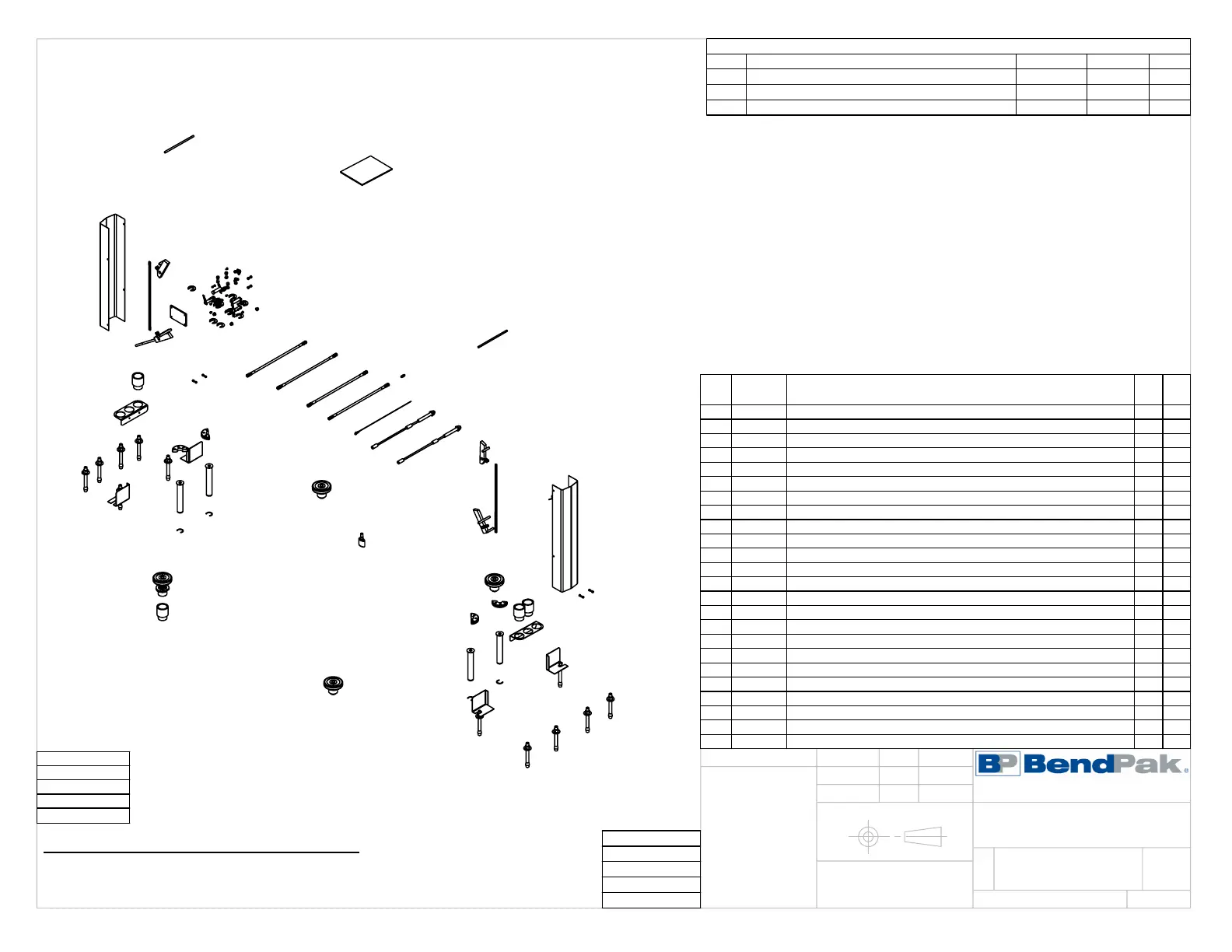

BendPak XPR-9S Service Manual

DIMENSIONS ARE IN MM
☺
NEXT ASSEMBLY
5260553
5260557
5260558
5260611
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY REV
1 5174215 XPR-9 PARTS BAG 1 L
2 5215704 ROUND ADJUSTABLE LIFT PAD ASSEMBLY 4 H
3 5701214 XPR-9 SAFETY CLOSEOUT COVER 2 G
4 5570104 XPR-9 HYDRAULIC HOSE ASSY Ø6.35 x 2985mm DS 1 E
5 5570103 D2-8F, XPR-9 HYDRAULIC HOSE ASSY Ø6.35 x 1359mm DS 2 E
6 5570176 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 330mm DS 1 F
7 5550095 FTG NPL -04 JIC x -04 JIC 1 -
8 5595359 CABLE ASSEMBLY Ø10 x 9507mm DBST 2 D
9 5595161 XPR-9 Ø2.4mm x 6400 SAFETY CABLE 1 E
10 5505116 D2-8F, XPR-9/10 LIFT HEAD PIN WELDMENT 4 D
11 5540281 C RING Ø38mm OD 5103-150 4 -
12 5715003 POWER UNIT VIBRATION DAMPENER 1 B
13 5731121 XPR-9 SAFETY LINKAGE BAR 2 G
14 5600370 XPR-9 SAFETY WELDMENT #1 1 K
15 5600372 XPR-9 SAFETY WELDMENT #3 2 G
16 5600371 XPR-9 SAFETY WELDMENT #2 1 H
17 5736604 TWO POST LIGHT DUTY BOLT ON ARM RESTRAINT GEAR 4 E
18 5746167 DOUBLE THREADED ROD M10 x 1.5 x 275 2 B
19 5530337 AB 3/4" x 6.3" 12 -
20 5900371 XPR-9S INSTALLATION MANUAL 1 -
21 5746192 ARM ADAPTER, MEDIUM 4 E
22 5701663 D2-8F, XPR-9 FOOT GUARD, L.H. 2 A
23 5701664 D2-8F, XPR-9 FOOT GUARD, R.H. 2 A
24 5701660 10AP/D2-12/15/XPR HEIGHT ADAPTER HOLDER 2 B
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
N UPDATED BOM REVISION 07/24/2020 CA 01182
P UPDATED BOM REVISION 10/05/2020 TM 01215
Q UPDATED BOM REVISION 06/22/2021 TM 01310
WHERE USED
XPR-9S
XPR-9TS
XPR-9S-LP
XPR-9SBT
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
Q
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
JM
5250037
XPR-9S PARTS BOX
12/15/2015
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
OR 06/30/2021
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
INSERT PARTS BAG INTO PARTS BOX FOR SHIPMENT 2.
HOSES AND CABLES IN REPRESENTATIONAL FORM 3.
