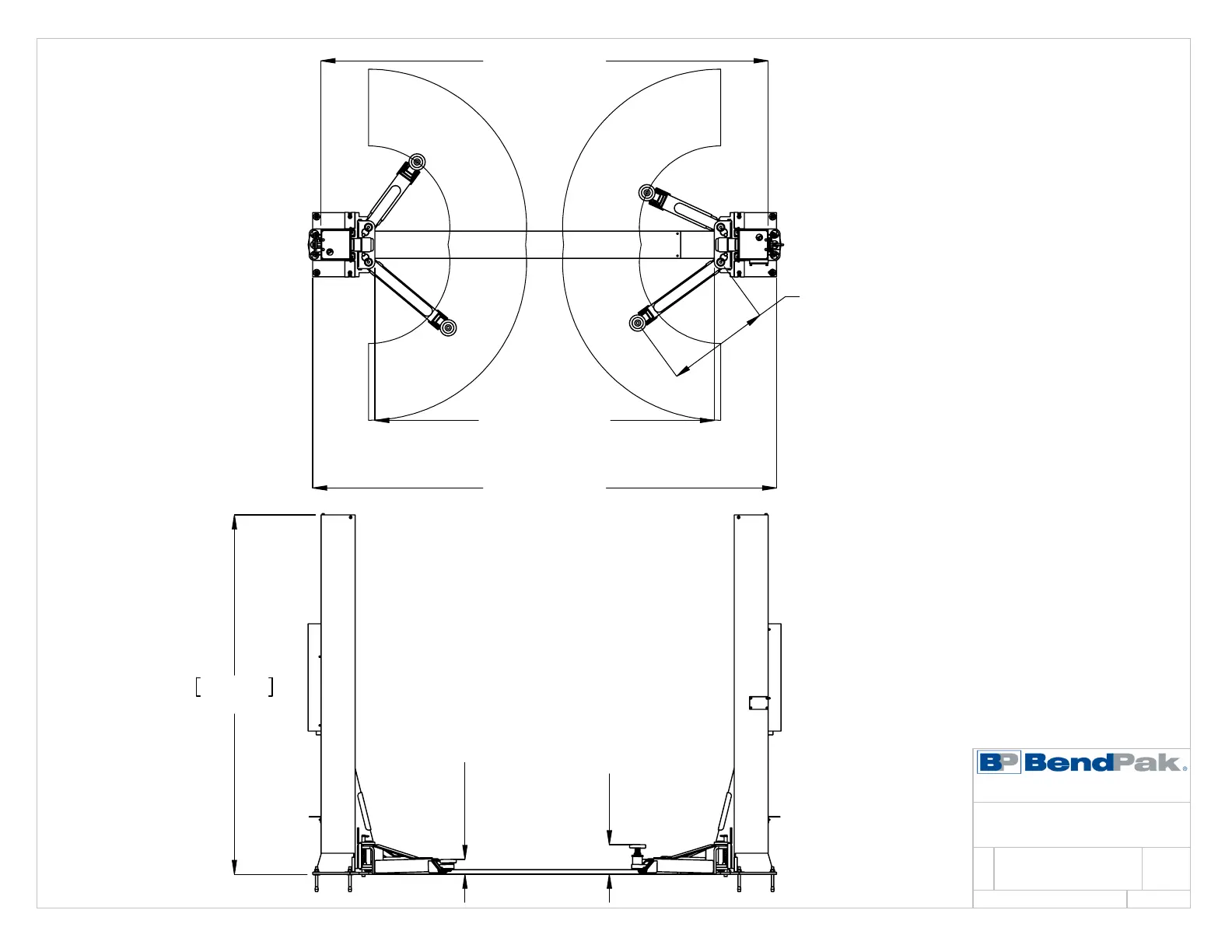

112.362in
2854mm
[4.665-78.65in]
118.05mm-1997.7mm
[9.30-83.30in]
246.3-2115.6mm
WITH 63mm [2.5in] ADAPTER
AND MAX ADJUSTMENT
[126.3-139.724in]
3208.0-3549mm
[92.678-106.102in]
2354.0-2695mm
DRIVE THRU
[132.00-145.00in]
3353.0-3683mm
[32.335-52.417in]
821.3-1331.4mm
SHEET 2 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
W
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
5260558
XPR-9S PRODUCTION
LIFT VER E
1:35
SCALE:
