DIMENSIONS ARE IN MM
☺
A
11
10
3
4
2
1
17
15
16
9
13
12
14
18
DETAIL A
SCALE 1 : 2
6
5
8
7

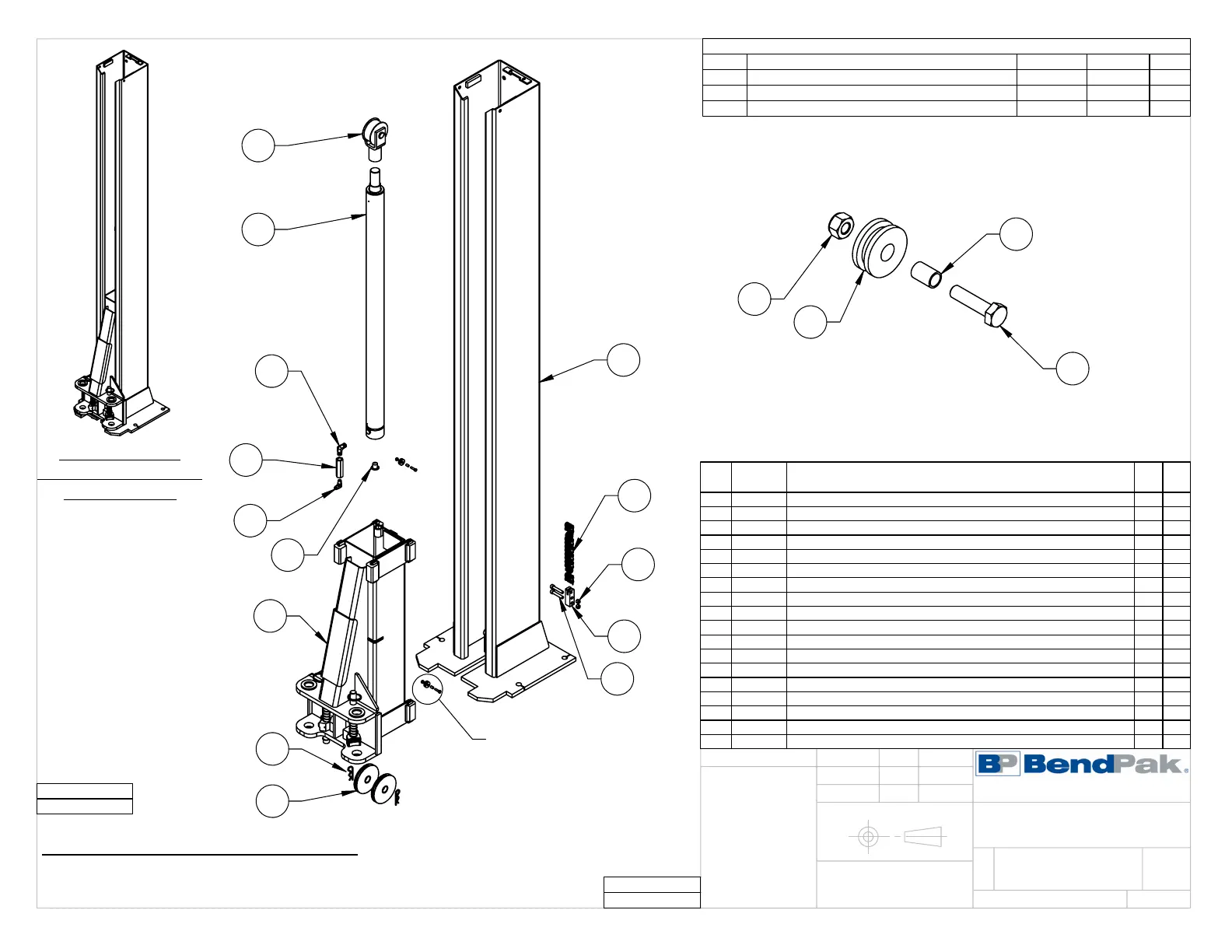

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5245225
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5600368
XPR-9 OFF SIDE POST WELDMENT
1
M
2 5535013
NUT M10 x 1.5 NL
2
-
3 5530761
SHCS M10 x 1.5 x 55
2
-
4 5761003
PL-7000, XPR-9S CHAIN CONNECTOR
1
H
5 5565350
D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE SPACER
2
C
6 5535357
NUT M6 x 1.0 NL
2
-
7 5530756
HHB M6 x 1 x 25
2
-
8 5575112
D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE
2
C
9 5215386
XPR-9S LIFT HEAD ASSEMBLY
1
M
10 5502321
CYLINDER ASSEMBLY Ø2.5 x 37 - Ø1.75 ROD
1
G
11 5210117
XPR-9S CHAIN ROLLER ASSEMBLY
1
G
12 5575111
XPR-9S/10 SHEAVE ASSEMBLY
2
G
13 5505350 MODEL#211 HAIR PIN/ LARGE 2
-
14 5550041
FTG ELB -06 NPT x -06 NPT
1
-
15 5550108
XPR-9S 3/8" NPT TUBE FITTING
1
E
16 5550106
FTG ELB -04JIC x 3/8” NPT
1
-
17 5210943
XPR-9S CYLINDER LEVELING PLUG
1
F
18 5210116
XPR-9S CYLINDER CHAIN 2800mm
1
E
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
U
UPDATED BOM REVISION
05/21/2109
TS
01086
V
UPDATED BOM REVISION
02/03/2020
TM
01107
W
UPDATED BOM REVISION
11/03/2020
TM
01226
WHERE USED
XPR-9 SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
W
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5215391
XPR-9 OFF SIDE POST
ASSEMBLY
08/30/2010
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
OR
11/04/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
CHAIN SHOWN IN REPRESENTATIONAL FORM ONLY
3.
