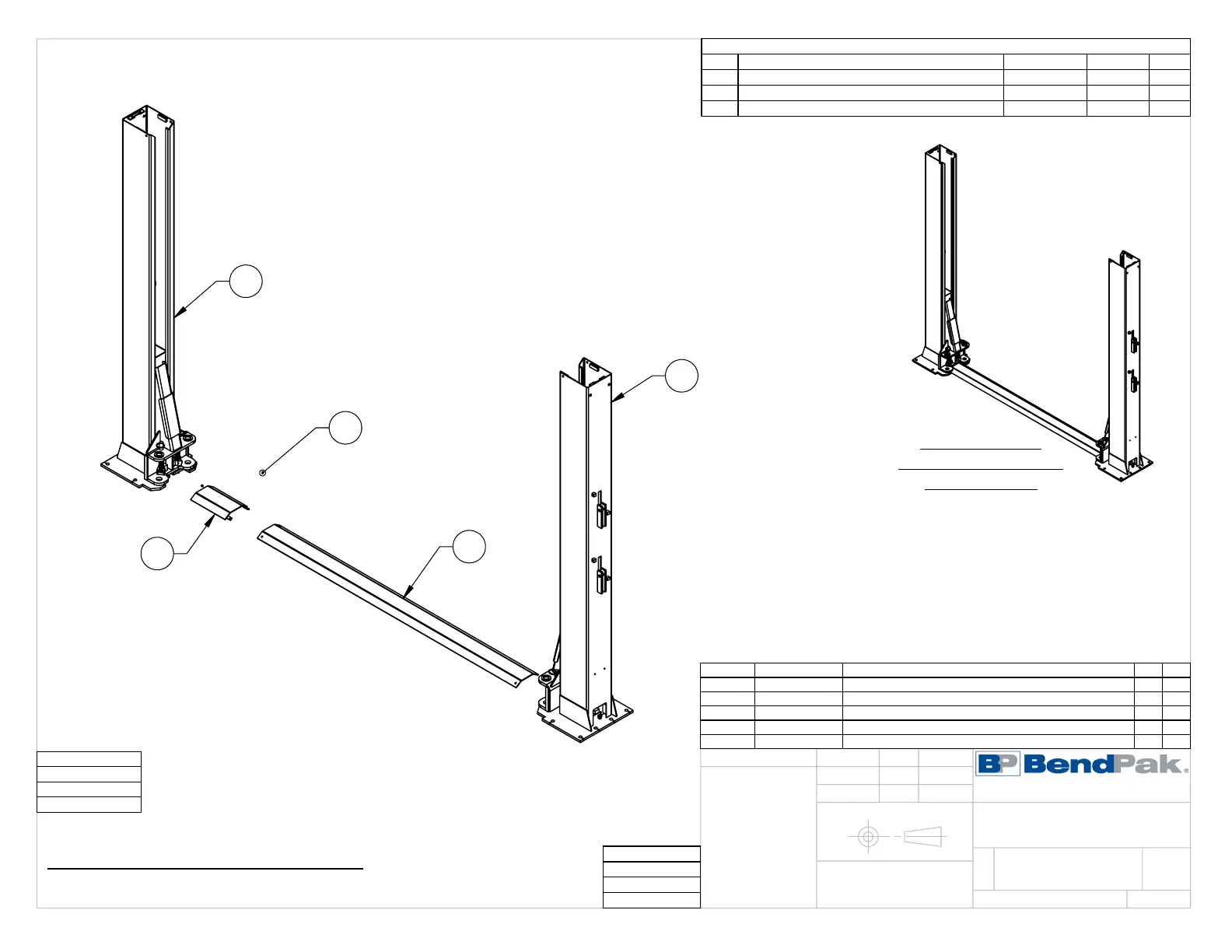

DIMENSIONS ARE IN MM
☺
1
3
4
2
5
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5260553
5260557
5260558
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5215391
XPR-9 OFF SIDE POST ASSEMBLY
1
W
2 5215392
XPR-9 POWER SIDE POST ASSEMBLY
1
W
3 5210018
XPR-9 GROUND PLATE
1
D
4 5600510
XPR-9 FLOORPLATE EXTENSION WELDMENT
1
A
5 5530079
BPHS M6 x1.0x10
2
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
U
UPDATED BOM REVISIONS
05/20/2019
TS
01086
V
UPDATED BOM REVISIONS
02/03/2020
TM
01107
W
UPDATED BOM REVISIONS
11/03/2020
TM
01226
WHERE USED
XPR-9S
XPR-9S-LP
XPR-9TS
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
W
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5245225
XPR-9 LIFT
SUPERSTRUCTURE
08/31/2010
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
OR
11/05/2020
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ASSEMBLE ITEMS AS SHOWN
2.
