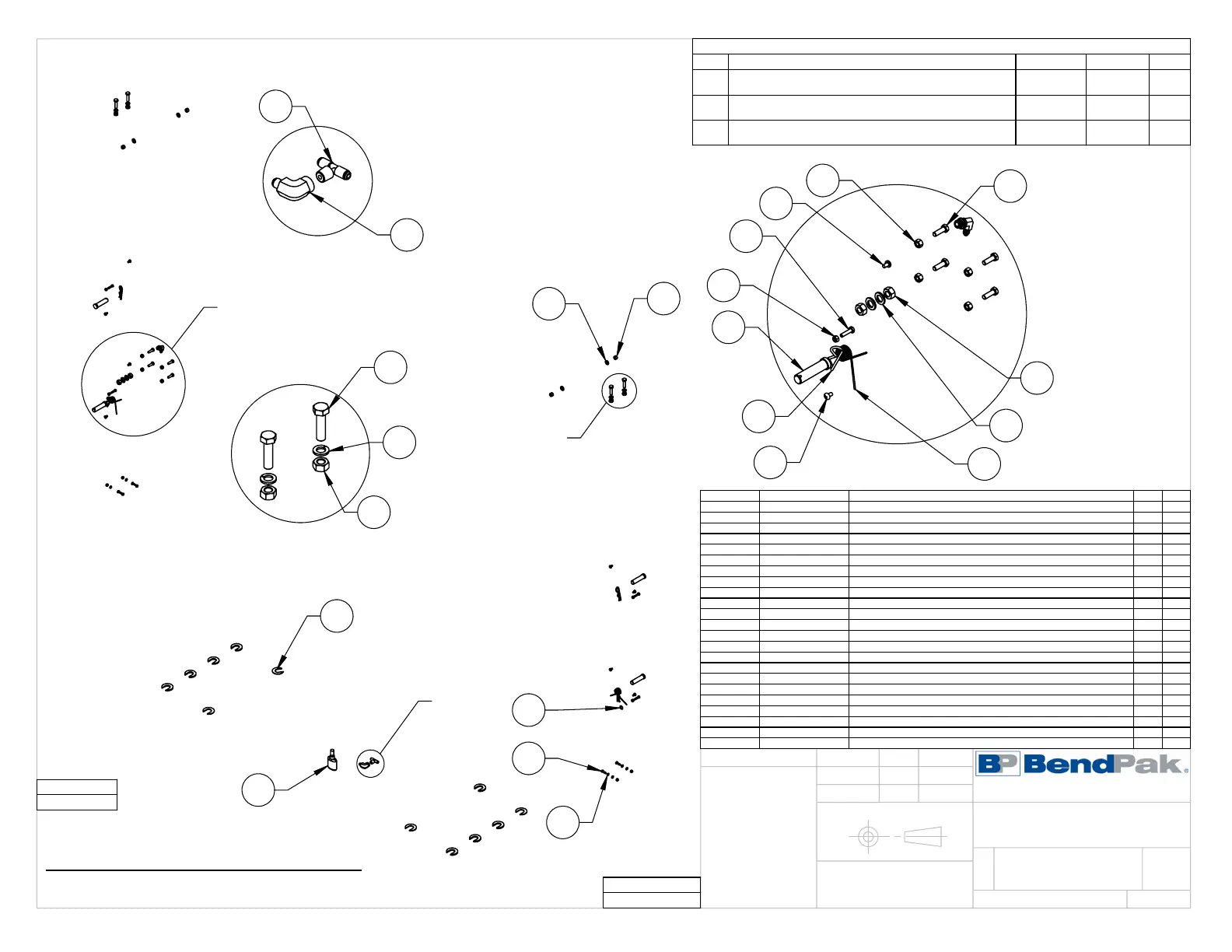

BendPak XPR-9S Service Manual

DIMENSIONS ARE IN MM
☺
A
B
C
17
19
20
18
21
22
23
DETAIL A
SCALE 1 : 5
2
1
DETAIL B
SCALE 1 : 8
16
9
6
10
9
11
15
8
13
12
14
DETAIL C
SCALE 1 : 5
5
4
3
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
J
J-001
REPLACED 5505113 WITH 5505001
UPDATED NEXT ASSEMBLY
10/06/2014
12/17/2015
TM
TM
00663
00738
K
ADDED (4) 5535357, 5530093, 5545005, AND
5580012
02/03/2020 TM 01107
L
REPLACED 5505001 WITH 5505113, REMOVED
(2) 5540075
10/05/2020 TM 01215
NEXT ASSEMBLY
5250037
ITEM NO. PART NUMBER DESCRIPTION QTY REV
1 5550153 FTG ELB -04 NPT F x -04 JIC 1 -
2 5550181 FTG TEE -04 JIC x -04 JIC x 04 NPT 1 -
3 5545200 WASHER M10 x Ø18 SL 4 -
4 5535998 NUT M10 x 1.5 4 -
5 5530760 HHB M10 x 1.5 x 38 4 -
6 5535001 NUT M8 x 1.25 NL 4 -
7 5550103 FTG ELB -04 JIC -06 ORB 1 -
8 5540075 R.H., 2.5 WIRE DIA., Ø20.5 x 75 LG 2 B
9 5530261 PHPS M6 x 1 x 10 8 -
10 5530010 HHB M8 x 1.25 x 25 4 -
11 5545347 WASHER, M12 FLAT WASHER 2 -
12 5530756 HHB M6 x 1 x 25 4 -
13 5535357 NUT M6 x 1.0 NL 8 -
14 5505350 MODEL#211 HAIR PIN/ LARGE 4 -
15 5535354 NUT M12 x1.75 2 -
16 5505113 2 POST SAFETY CLEVIS PIN 4 H
17 5545535 C WASHER SHIM FOR LIFTS 20 -
18 5535013 NUT M10 x 1.5 NL 4 -
19 5545341 WASHER M10 x Ø20 FLAT 4 -
20 5505031 ROTOR CLIP 12mm SS 1 -
21 5530093 HHB M6 x 1 x 20 4 -
22 5545005 M6 FLAT WASHER 8 -
23 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
WHERE USED
XPR-9 SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
L
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
AC
5174215
XPR-9 PARTS BAG
11/20/2009
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 10/15/2020
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ASSEMBLE ITEMS AS SHOWN 2.
