DIMENSIONS ARE IN MM
☺
100
8
1
10
9
11
5
3
2
4
7
6
12
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5600508
XPR-9 LIFT HEAD WELDMENT
1
J
2 5540133
GP-7, D2-8/10, XPR-9/10 LIFT HEAD SPRING
2
D
3 5746098
GP, D2-8/10, XPR-9/10 Ø25mm GEAR SHAFT
2
F
4 5701052
D2/GP/M6K/XPR ARM INTERNAL GEAR STOP
2
F
5 5580219
KEYRING 56mm x 3mm
2
-
6 5540006
SNAP RING TRUARC 5103-100
2
-
7 5505106
SPRING PIN M6 x 50
2
A
8 5716001
2 POST GUIDE BLOCK
8
G
9 5761003
D2-8F, PL-7000, XPR-9S CHAIN CONNECTOR
1
H
10 5530761
SHCS M10 x 1.5 x 55
2
-
11 5535013
NUT M10 x 1.5 NL
2
-
12 5930183
D2-8/10,XPR-9/10 LIFT HEAD GUSSET COVER
1
E
NEXT ASSEMBLY
5215391
5215392
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
K
UPDATED TITLE TO REFLECT WHERE USED
UPDATED BOM REVISIONS
11/03/2016
HG
00738
L
UPDATED BOM REVISIONS
04/17/2017
TS
00819
M
UPDATED BOM REVISIONS
03/06/2018
CA
00929
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
M
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5215386

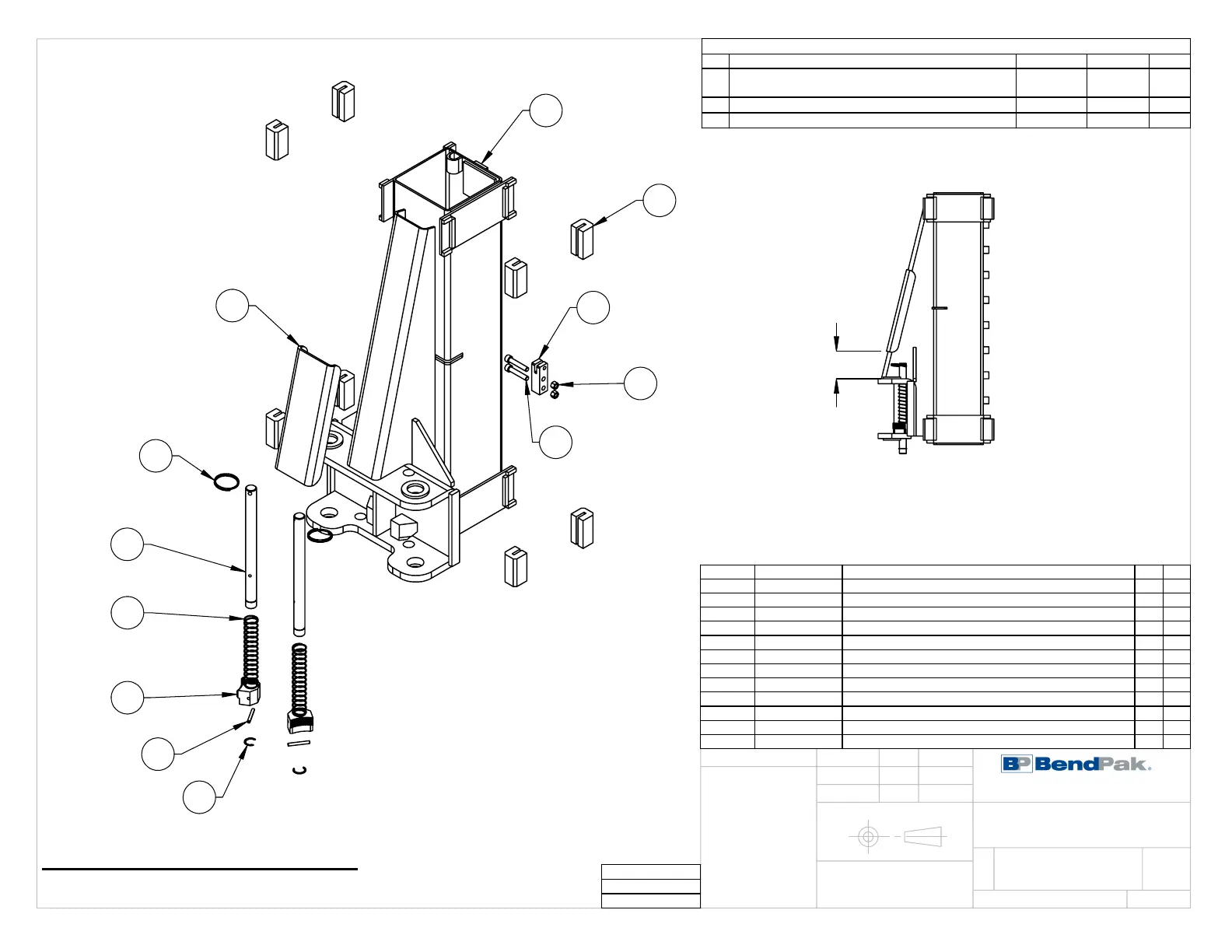

XPR-9S LIFT
HEAD ASSEMBLY
08/30/2010
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
CA
03/13/2018
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ASSEMBLE ITEMS AS SHOWN
2.
