Bentel Security KYO 4 M User Manual

21
®®

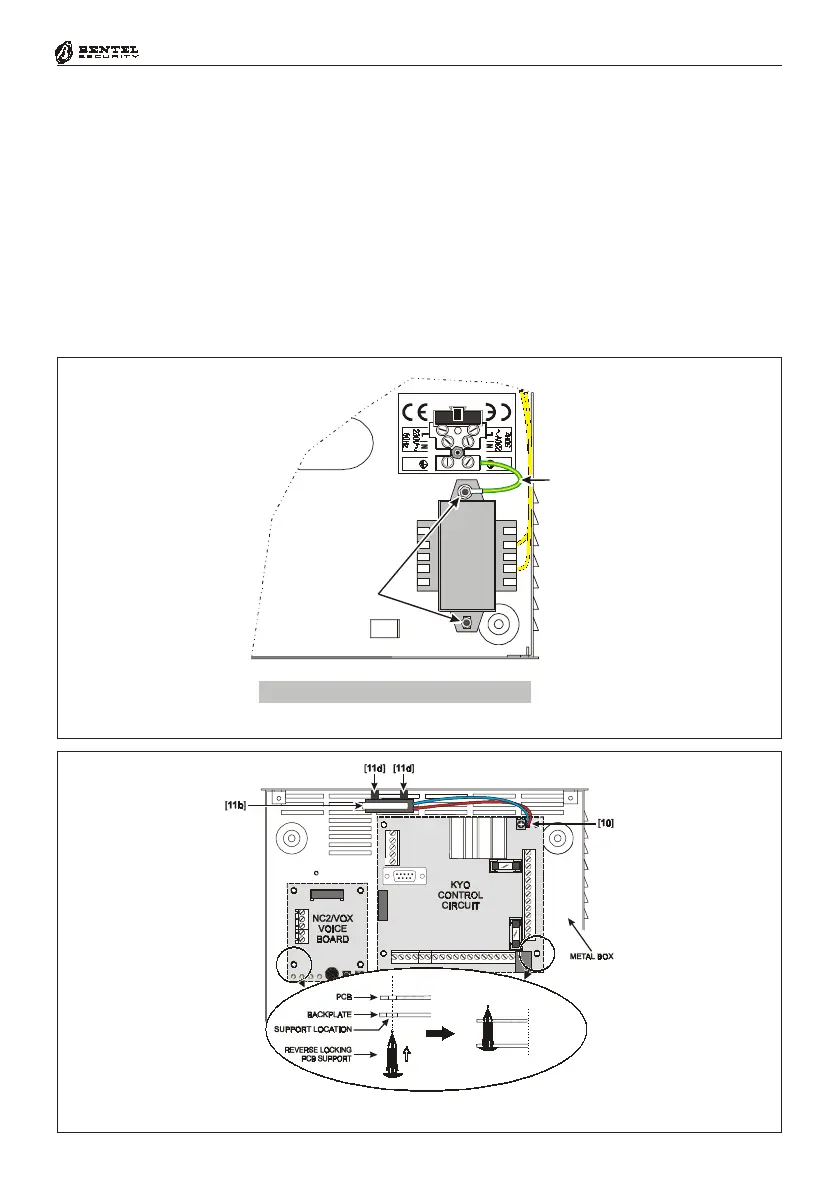

Section 3 - Mounting the Components
Plastic box (BOX-P)
1. Stick the label [19c] onto the backplate (as shown in Fig. 3.1). Ensure that
the 2 label holes correspond to the 2 holes on the backplate.
2
. Place the Mains Screw Terminal onto the screw location (Ø 2.5) then, using
the Parker screw (3 x 14.2) secure it to the backplate.
3
. Using the 2 holes on the backplate as reference, mount the Transformer
[14] (as shown in Fig. 3.2b).
4
. Using the two 3 x 8 parker screws, secure the Transformer to the backplate.
5
. Connect the Transformer primary (RED wires) to terminals [N] and [L].
Fig. 3.2 - Connecting the Earth wire [13a]
Metal Box — BOX-M
[13a]
Hexagonal
nuts M3
51
96
Fig. 3.3 - Fitting the Reverse Locking PCB Supports
