26
Multifunction Control Panel
®®
Once you have assembled the components, specify the type of Control panel
that you have constructed.
Using an indelible pen, tick the relevant box on the Marking Ticket [18] (as
shown in Fig. 3.4).
NOTE: SW1 indicates the presence of a BAQ15T12 Switching Power Supply (1.5
A), and SW2 indicates the presence of a BAQ35T12 Switching Power Supply (3 A).

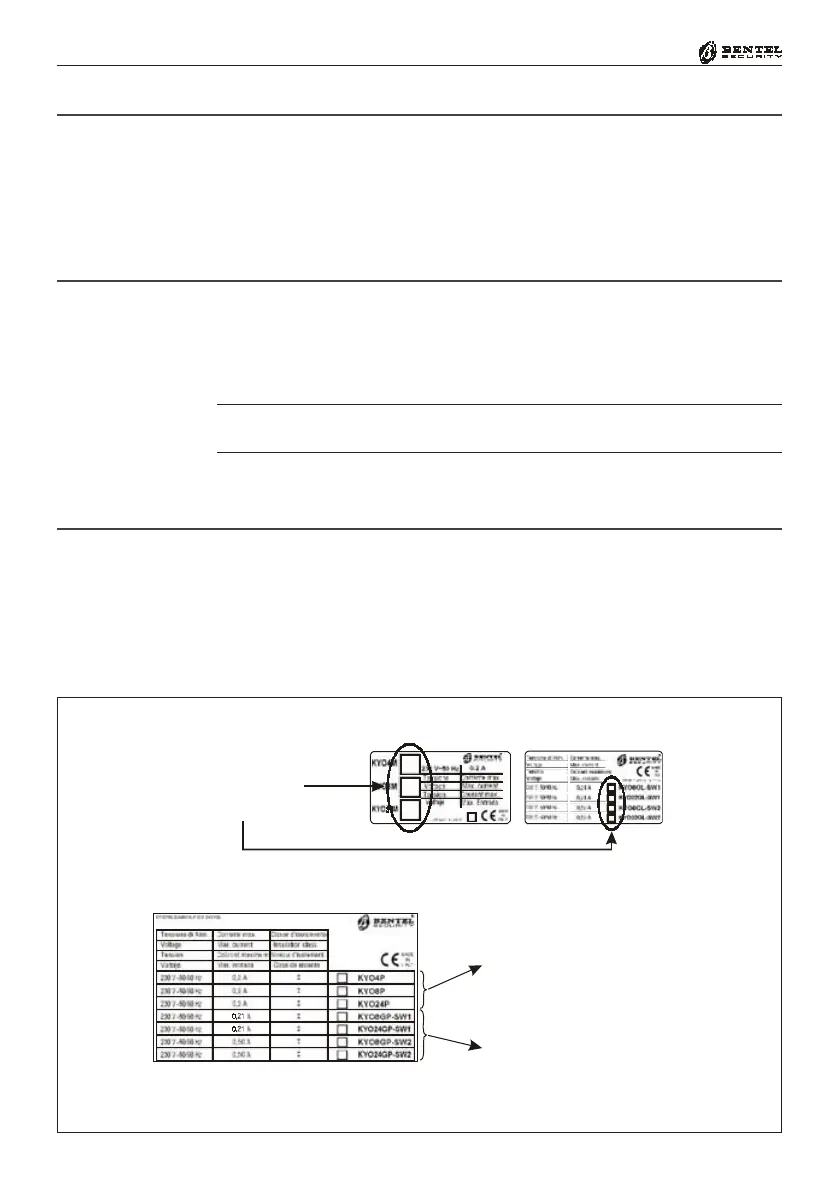

Fig. 3.4 - Marking Ticket
Using an indelible pen,
tick the box that
corresponds to the assembled
Control panel
If the Control panel is equipped
with a Transformer
(Order Code TRF), tick the box that
corresponds to the assembled
Control panel
If the Control panel
is equipped with a
Switching Power Supply,
tick the box that corresponds
to the assembled Control panel
(SW1=BAQ15T12, SW2=BAQ35T12)
Marking Ticket for BOX-P Plastic Box
Marking Ticket for BOX-M and BOX-L Metal Box
Marking Ticket
Earthing the PCB
The PCB must be earthed by means of the Earth wire ([13a], [13b] or [13c]), in
order to protect it from electrical surges from the Telephone Line, and comply
with Safety Regulations.
Connecting the KST Thermal Probe
‘G’ series PCBs have on-board connectors (PTC in Fig. 3.5.) for KST Thermal
Probes [26]. Addition of a KST Thermal Probe will optimize the Battery Charge
process, by regulating the Battery Charge Voltage in accordance with the Battery
temperature. The probe must be attached to the Battery by means of adhesive tape.
The KST connection cannot be considered complete until the OVC-Link Wire
[29b] (supplied with the Switching Power Supply) has been connected.
