19Bentone
165 205 55
!
When servicing/replacing
components that affect
combustion, an analysis
and soot test must be
carried out on the instal-
lation.
5. Burner servicing
5.1 Servicing
Servicing must be carried out after 3,000 operating hours, but at least once
yearly.
Only authorised personnel may perform service.
Before any type of servicing is carried out, shut of the power at the main
switch and turn off the oil.
Be careful: certain parts exposed after separation of the burner can be hotter
than 60°C. Care should be taken by the installer to ensure that electrical
cables and oil lines are not pinched or otherwise damaged during installation
or servicing.

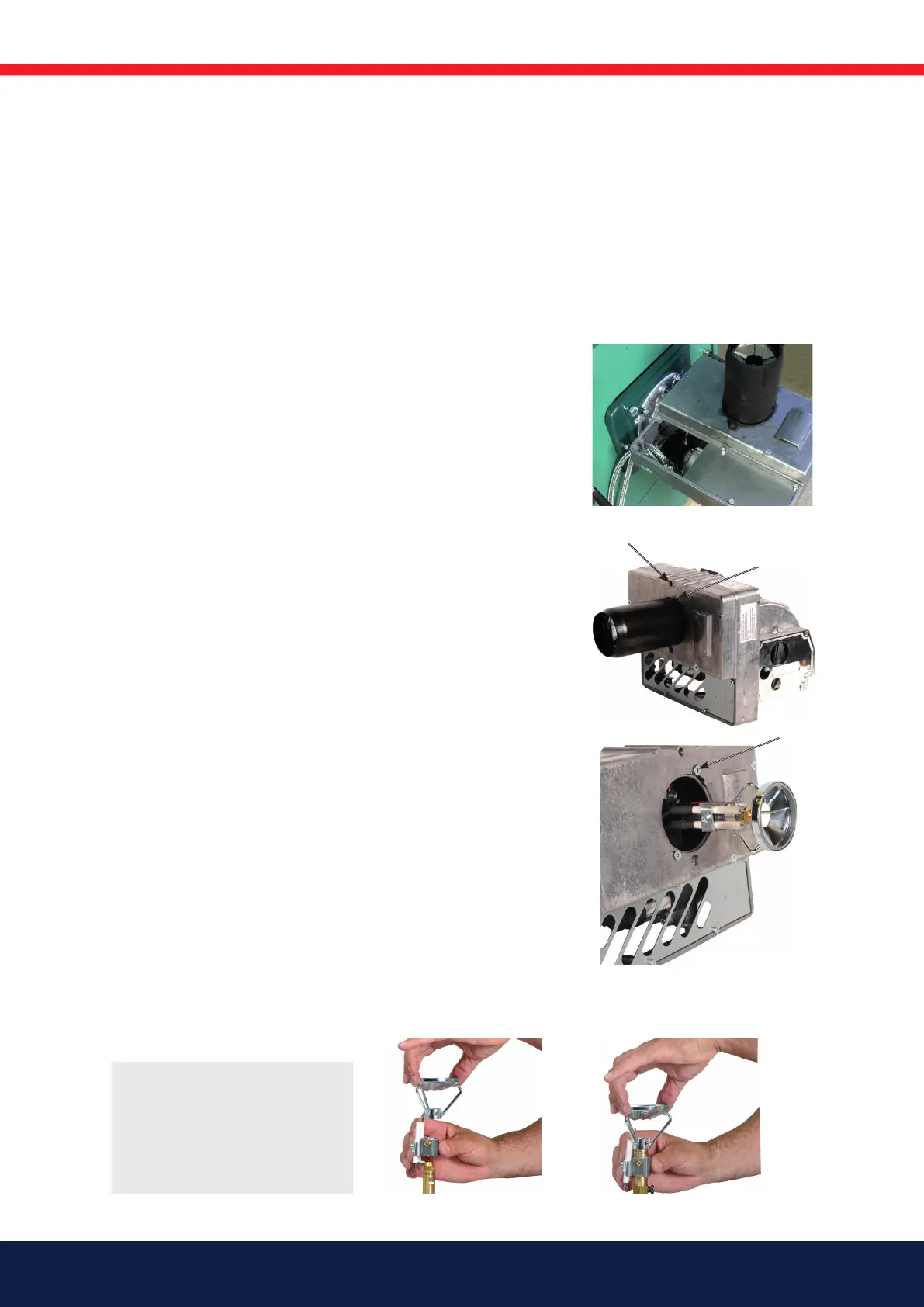

5.2 Hanging the burner
During servicing, the burner can be hung from the screw in the burner fl ange.
This makes the burner pipe, brake plate, preheater and electrodes easily
accessible.
5.3 Servicing the combustion device
1. Switch off mains power, remove the cover and disconnect the
Europlug from the burner.
2. Remove the burner from the boiler by loosening the screw (A)
3. Loosen the two fastening screws one rotation. Turn to the right and
remove the burner pipe. (B)
4. Visually inspect the combustion assembly and check the various
components for defects.
5. Loosen and pull the brake disc off the preheater. Clean the brake plate
as necessary.
6. Unscrew the nozzle. Do not clean the nozzle. If the nozzle is defective
it must be changed.
7. Fit the nozzle.
8. Check the ignition electrodes. Replace as necessary (refer to Technical
data for electrode settings).
9. Fit the brake plate/electrode package
10. Fit the burner tube and insert the burner into the boiler
11. Connect the Europlug and turn on the mains power.
12. Start the burner and check the combustion.
A
1
2
B
B
