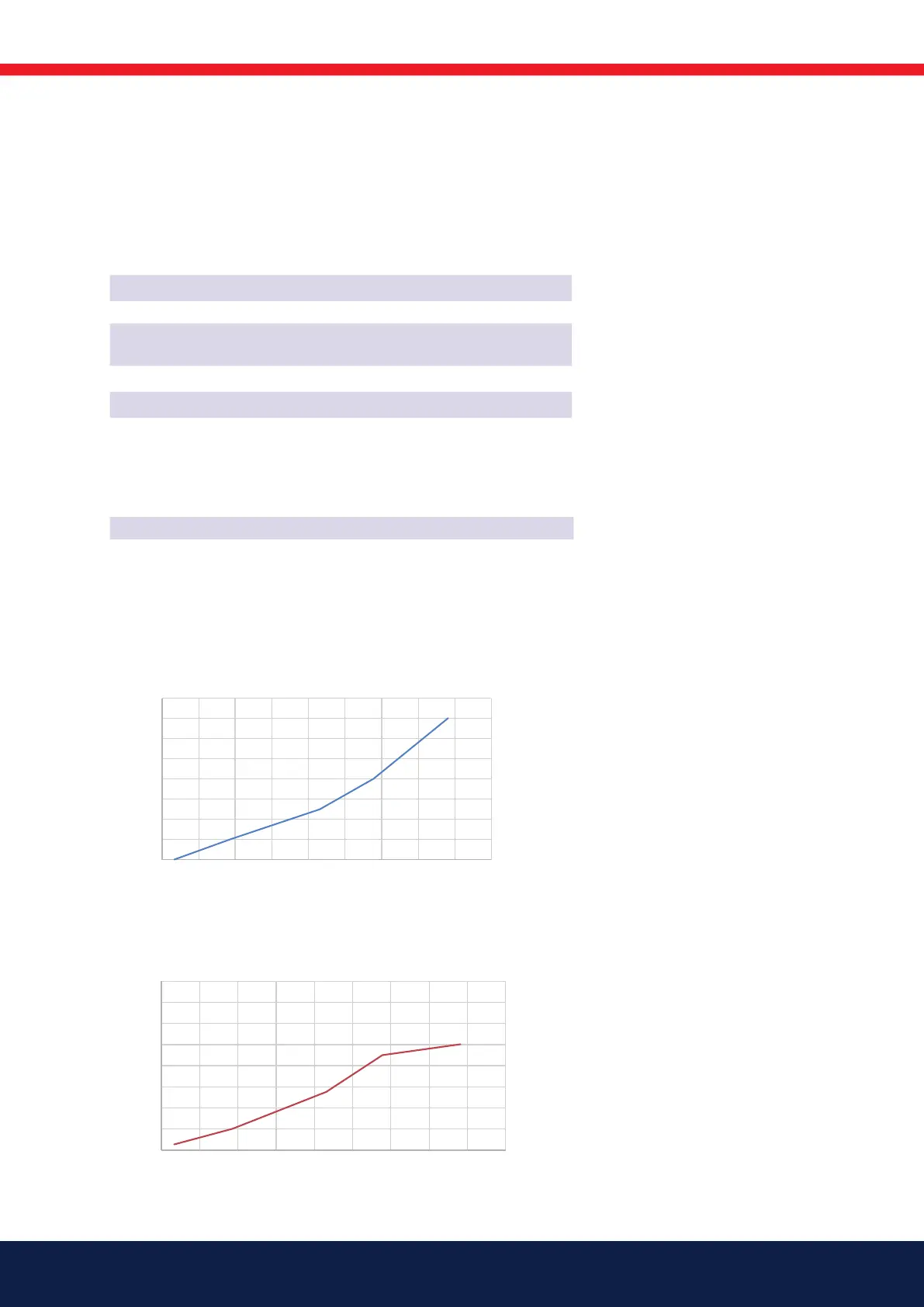

Bentone B 2 KA - Basic Settings and Adjustments; Example Settings and Nozzle Choice

16
Bentone
0
2
4
6
8
10
12
14
16
25 35 45 55 65 75 85 95 105 115
�
0
2
4
6
8
10
12
14
16
25 35 45 55 65 75 85 95 105 115
165 205 54
* Energy value of EO1 fuel oil = 11.86 kWh/kg
Burner output 30 kW
Estimated nozzle output: 30 / 11,86* = 2,53 kg/h
Choice of nozzle according to the table (refer to Technical data).
According to the nozzle table, this provides the following nozzle.
Nozzle: 0,65 Gph
Pump pressure: 11,0 bar
4. Basic settings
4.1 Example of basic settings
4.1.1 Choice of nozzle
B 2
4.1.2 Basic settings Example B 2 KA
The setting value for 30kW according to basic settings tables
(Setting values).
Air setting = 1
Insert setting = 0,5
Setting values for insert B 2 KA,KAV
Setting values for air damper B 2 KA,KAV
Nozzle assembly, scale
Burner capacity, kW
Air, scale
Burner capacity, kW
