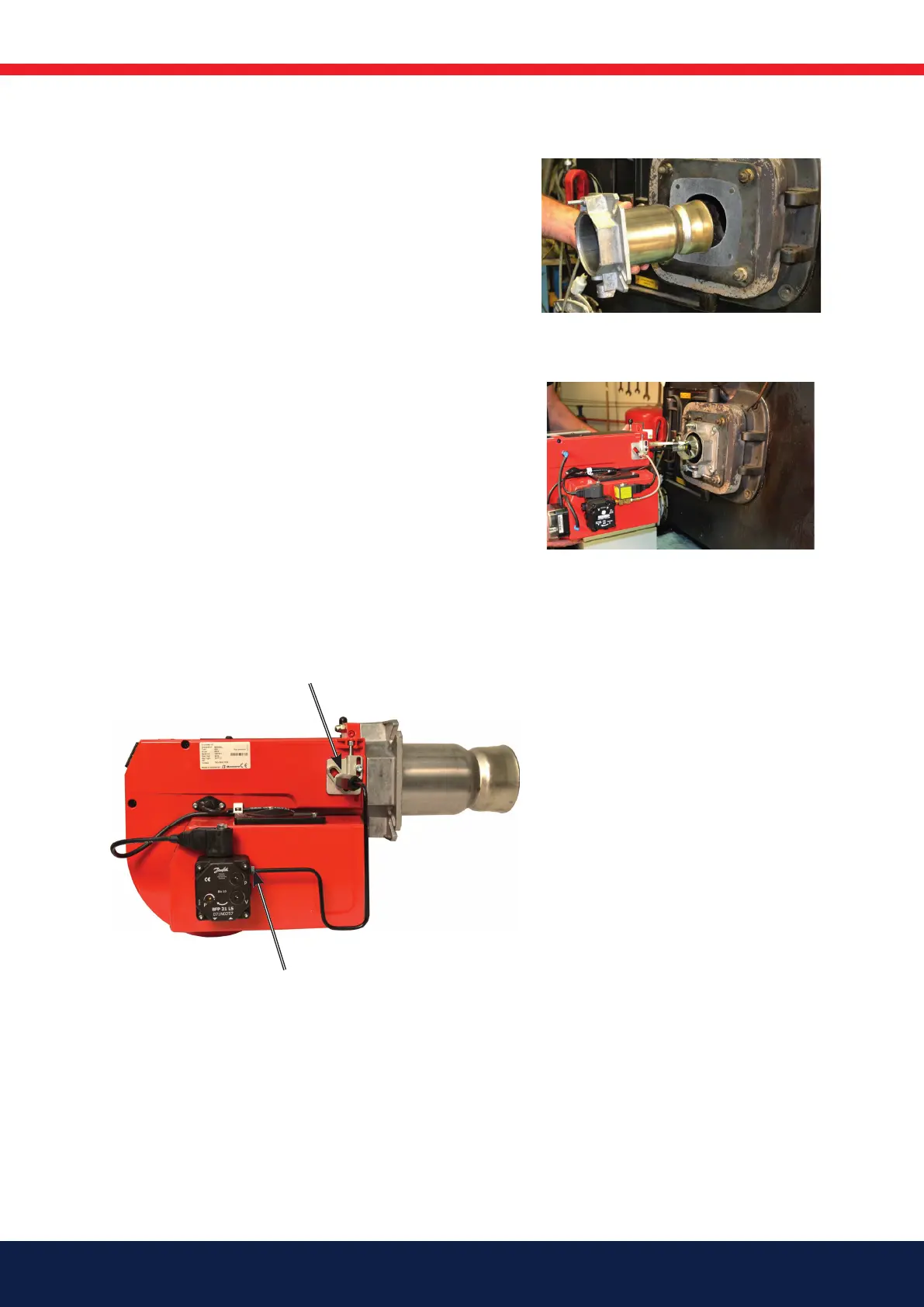

4.5 Mounting of burner on boiler
1. Remove fan housing from burner fl ange.
2. Remove the brake disc from the oil line.
3. Install the selected nozzles, (see Technical data).
4. Install the brake disc on the oil line.
5. Remove the fl ame tube from the fl ange.
6. Install the fl ange with gasket on the boiler.
7. Install fl ame tube, be sure to install the drainage hole
downwards (not available on all fl ame tubes) so that any oil
spills can drain out.
8. Insulate between fl ame tube and boiler door for reduced heat
radiation.
9. Install the fan housing on the fl ange and lock with nuts.
10. Connect oil lines to the pump, (see Service).
11. Connect the burner electrically, (see Service).
4.6 Check oil line seals
When the burner has been installed and put into operation, the
tightness of the various coupling elements should be checked (A),
in case of leakage - retighten the coupling elements.
