Bentone B30A - Setting of Brake Plate and Air Flow; Nozzle and Pump Pressure; Burner Installation

9 Bentone
Nozzle: 45° Solid/semisolid
60° Solid/semisolid
80° Solid/semisolid
Pump pressure 10 bar (10-15 bar) depending on pump model
Combustion device d
1
d
2
d
3
B 30 A ø 110 M10 ø 160-200
Due to different furnace geometries and capacities, it is not possible to
recommend a nozzle model.
d
1
d
2
d
3
!
*NB It is important
that the spark does
not strike against the
brake plate or nozzle.
a b c d
B 30 A 2.5-3.5 7.0-9.0 1.0-2.0 5.0-6.0
a
b
c


d

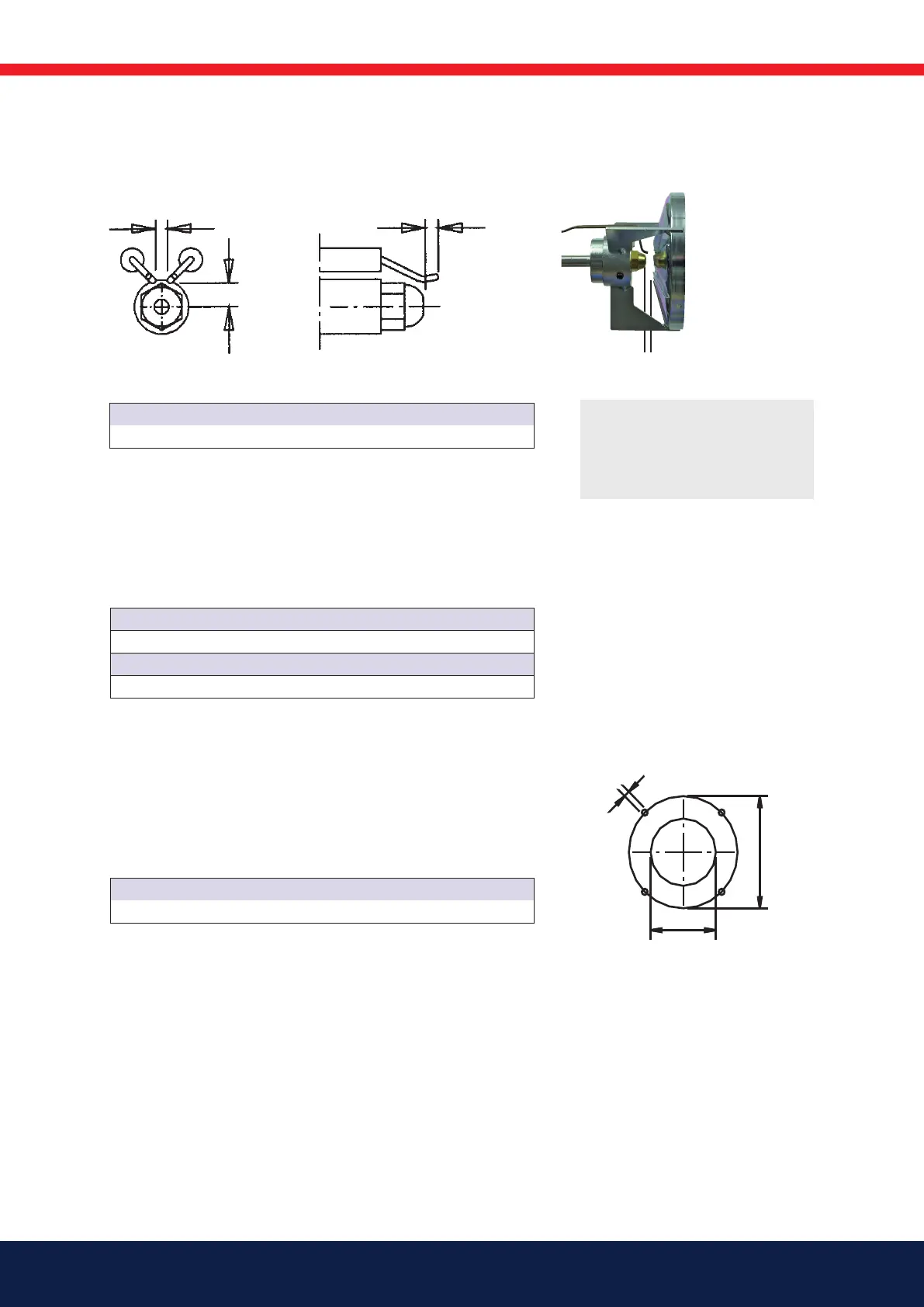

2.5 Setting of brake plate and air flow
2.6 Nozzle and pump pressure
2.7 Burner installation
2.7.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner flange.
