Bentone B40 MF/B45-2 MF
For installers
4039
38
37
41
43
42
4544 46
48
47
23

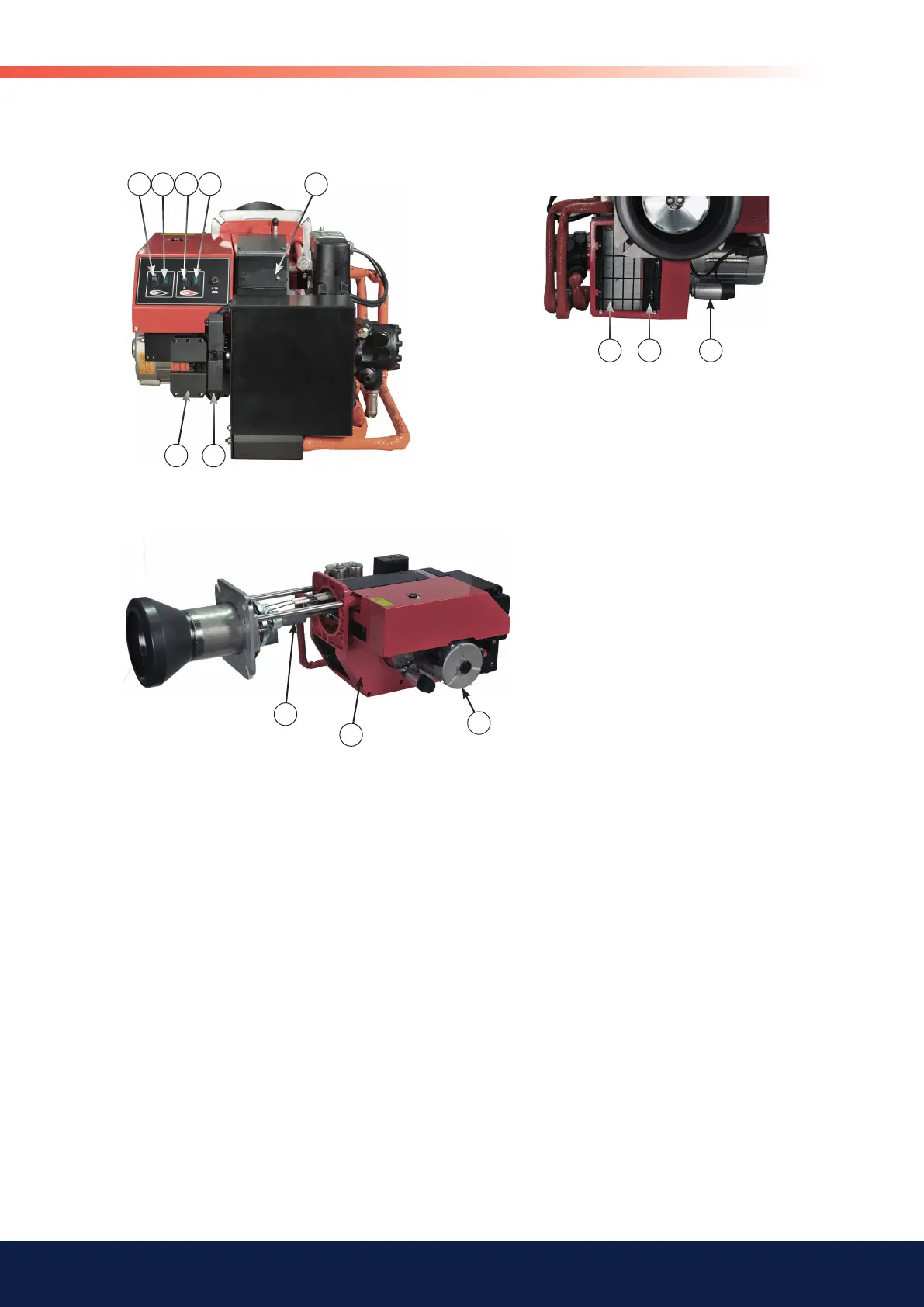

27. 5-pole Euro plug (feed preheater)
28. 4-pole Euro plug (control signal preheater)
29. Contactor for motor
30. Relay box
31. Ignition transformer
32. Fan wheel
33. Connecting pipe, valve block return
34. Connecting pipe, preheater valve block
35. Connecting pipe, pump preheater
36. Damper motor
37. Switch 0-I
38. Indicator, min. load
39. Switch I-II
40. Indicator lamp, maximum load
41. Inspection glass
42. 4-pole Euro plug (max. load)
43. 7-pole Euro plug (min. load feed)
44. Air damper
45. Air intake
46. Capacitor
47. Motor
48. Fan housing
