Bentone B40 MF - Description B45-2 MF

16
Bentone B40 MF/B45-2 MF
General
8
32
36
11
2425
31
15
14
13 12
10
9
72 3 654
1
34
33
35
29
30
16
26
2120
22
1917 18
28
27
23
1.12 Description B45-2 MF

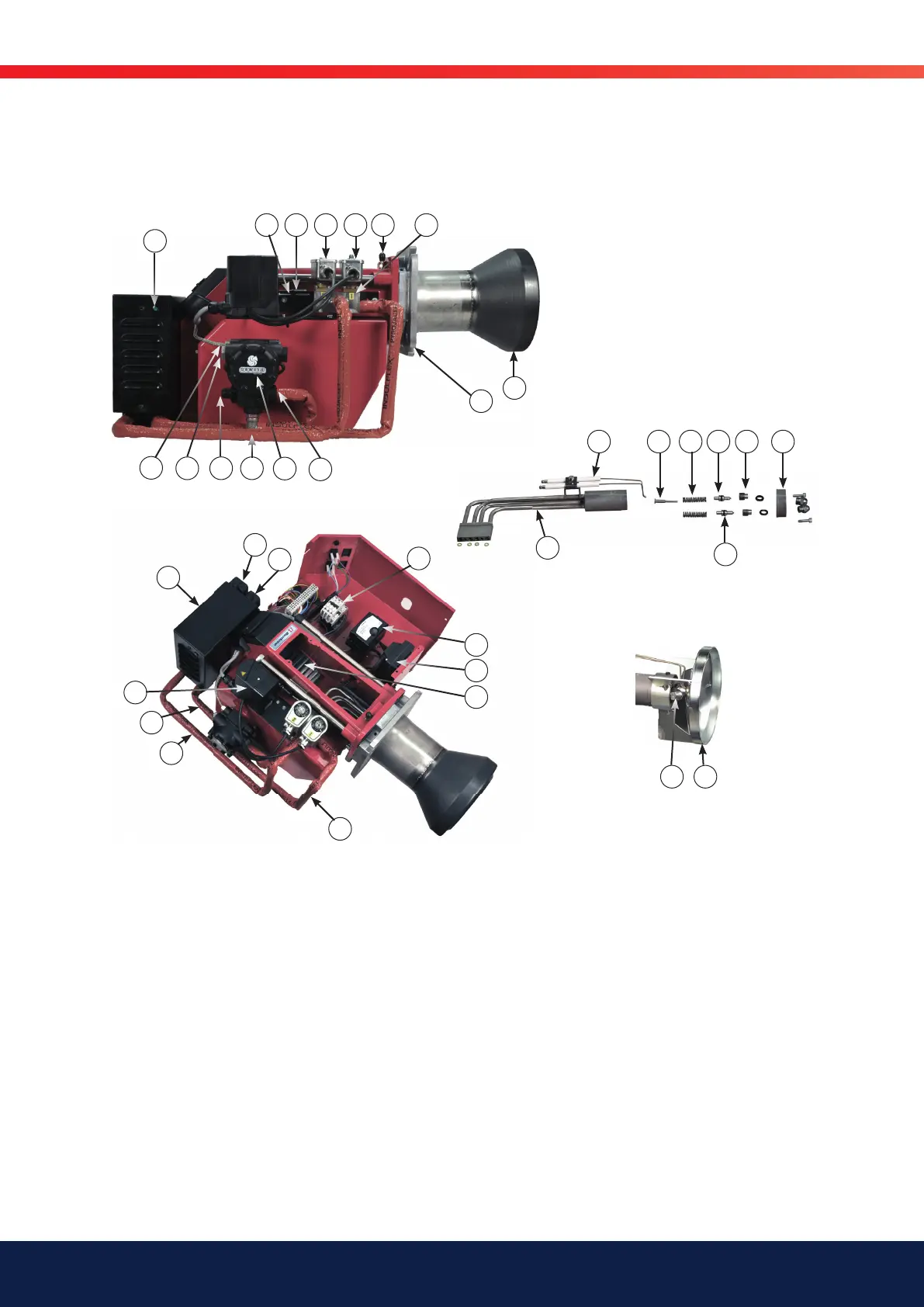

1.12.1 Components B45-2 MF
1. Indicator lamp, preheater ON
2. Nozzle assembly control
3. Scale, nozzle assembly control
4. Solenoid valve NC max. load
5. Solenoid valve NO min. load
6. Measuring nipple, fan pressure
7. Valve block
8. Burner tube
9. Burner fl ange
10. Pressure outlet pump
11. Pump
12. Return pump
13. Pressure control pump
14. Inlet pump
15. Immersion heater, pump
16. Ignition electrodes
17. Valve needle
18. Spring pressure piston
19. Pressure piston max. load
20. Valve seat
21. Front nozzle holder
22. Pressure piston min. load
23. Air intake
24. Brake plate
25. Nozzle
26. Preheater
