Bentone B40 MF/B45-2 MF
For installers
B


6
,
5
30-60
4
5

6
,
5
2
5
B40 MF
B45-2 MF
5.11.2 Installation of immersion heater, nozzle
holder
1. Break the main current and disconnect the Euro plugs from the burner.

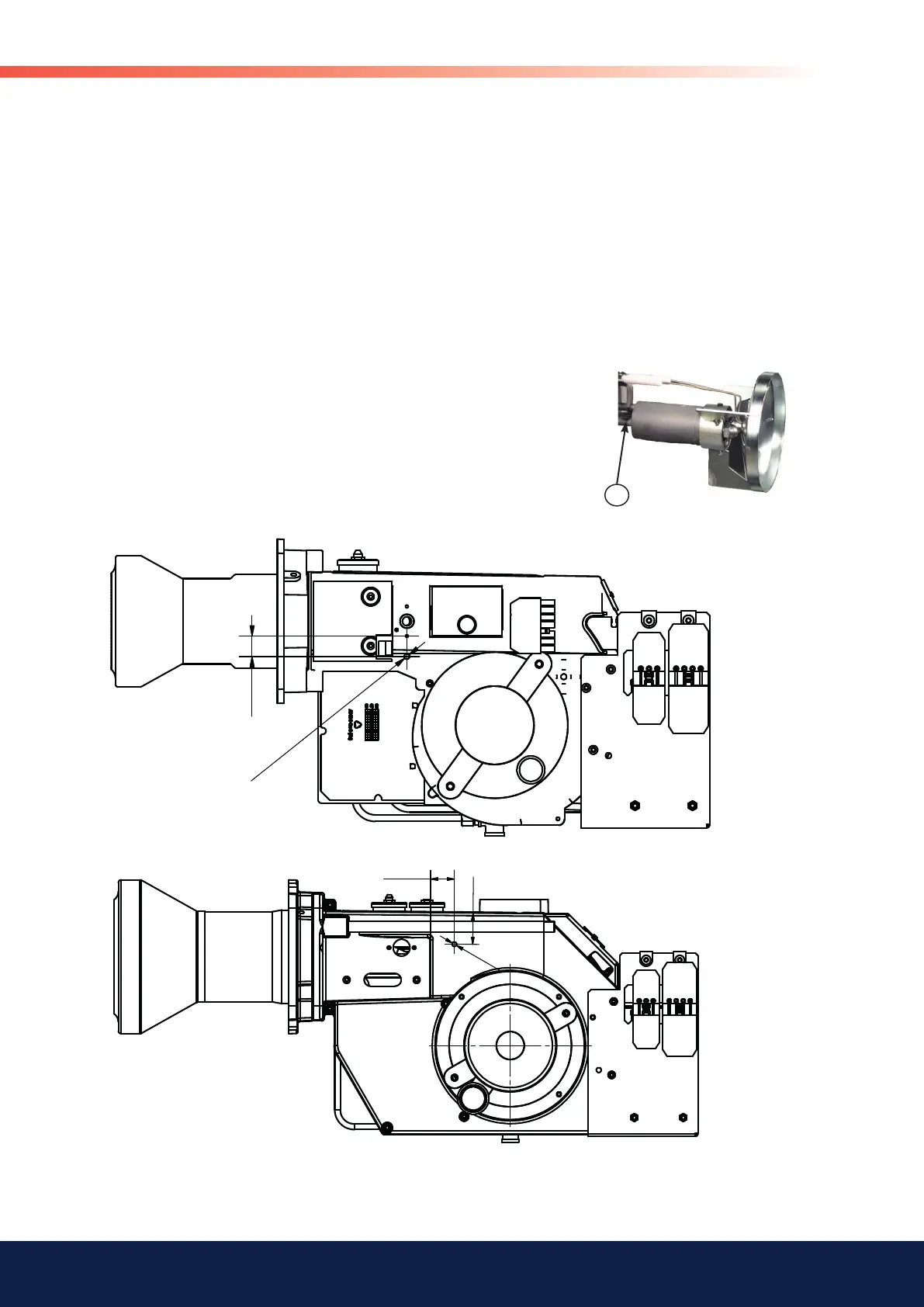

2. Work the fan housing in accordance with
• B40 MF, (see fi gure)
• B45-2 MF, (see fi gure)
3. Install the immersion heater in its intended hole (B) on the nozzle
holder.
4. Lock the immersion heater in the hole using the supplied nipple
5. Plug the immersion heater electrically, see wiring diagram see B40 MF
and B45-2 MF
6. Route the cable through the new hole specifi cally intended for the
purpose and on into the connection point.
7. Fit the Euro plugs and turn on the main current.
8. Check combustion *
