14

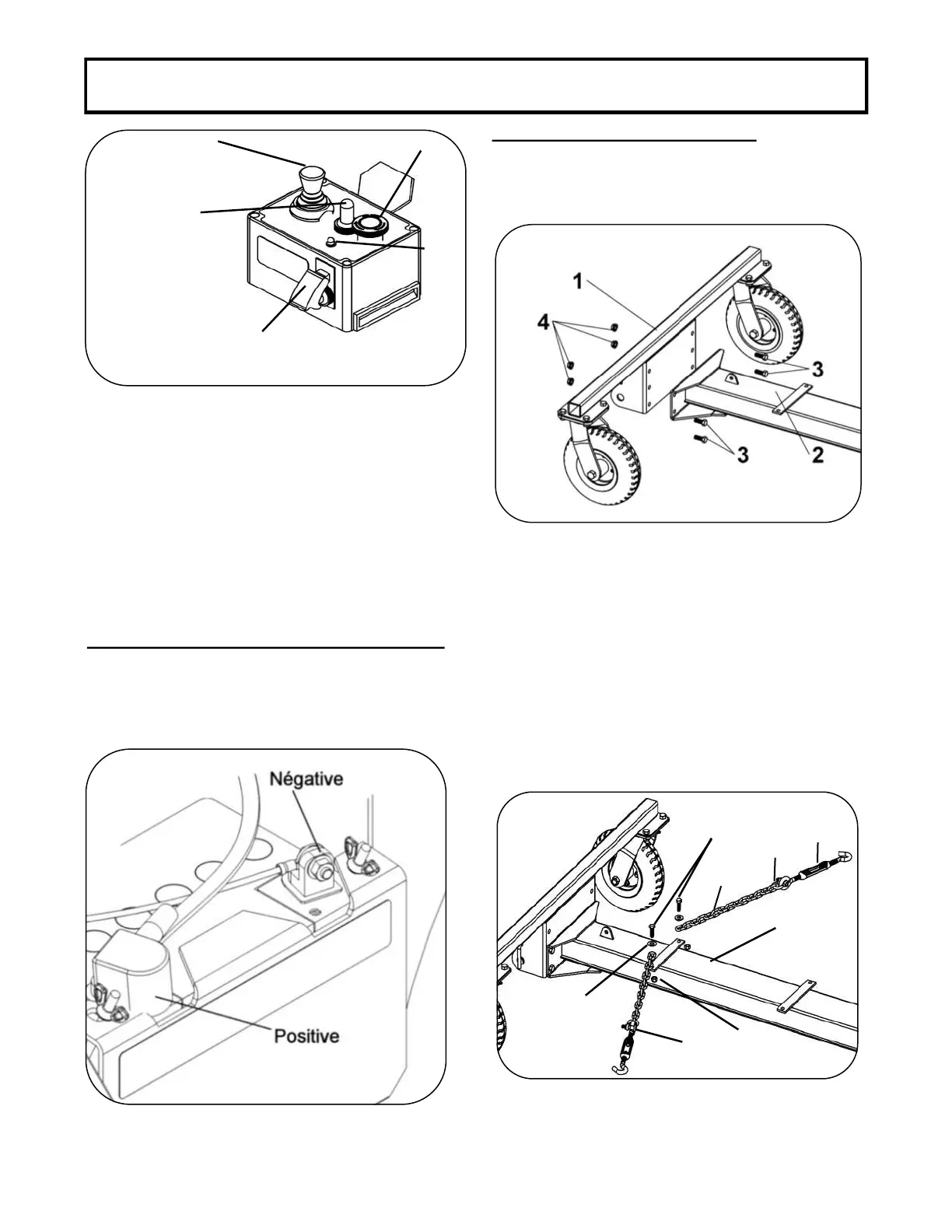

Connect wire assembly (104017) to the positive
post on the vehicle’s battery. Connect the black
wire on the vehicle’s frame.
’
1. Assemble the wheel support on the
subframe with four hex bolts 3/8" x
1" four flange nuts 3/8" (item 4).
2. Install the assembled turnbuckles
(assemble the chain (), the shackle (
) and the turnbuckle () together) on the
subframe with two hex bolts 5/16" x 1"
, two flat washers 3/8" and two
nylon insert lock nuts 5/16" . Slightly tighten
the nuts.
The set of holes used to assemble the wheel
support to the subframe depends on the height of the
vehicle. Once installed the subframe must be parallel
with the ground.
: The 4 positions switch that controls the chute
defelector and rotation.
: P.T.O. switch
: Light indicator for P.T.O.
: Kill switch
: Light switch (if installed)
