Berges ACM D2 - Dimensional Data (30.0-37.0 kW)

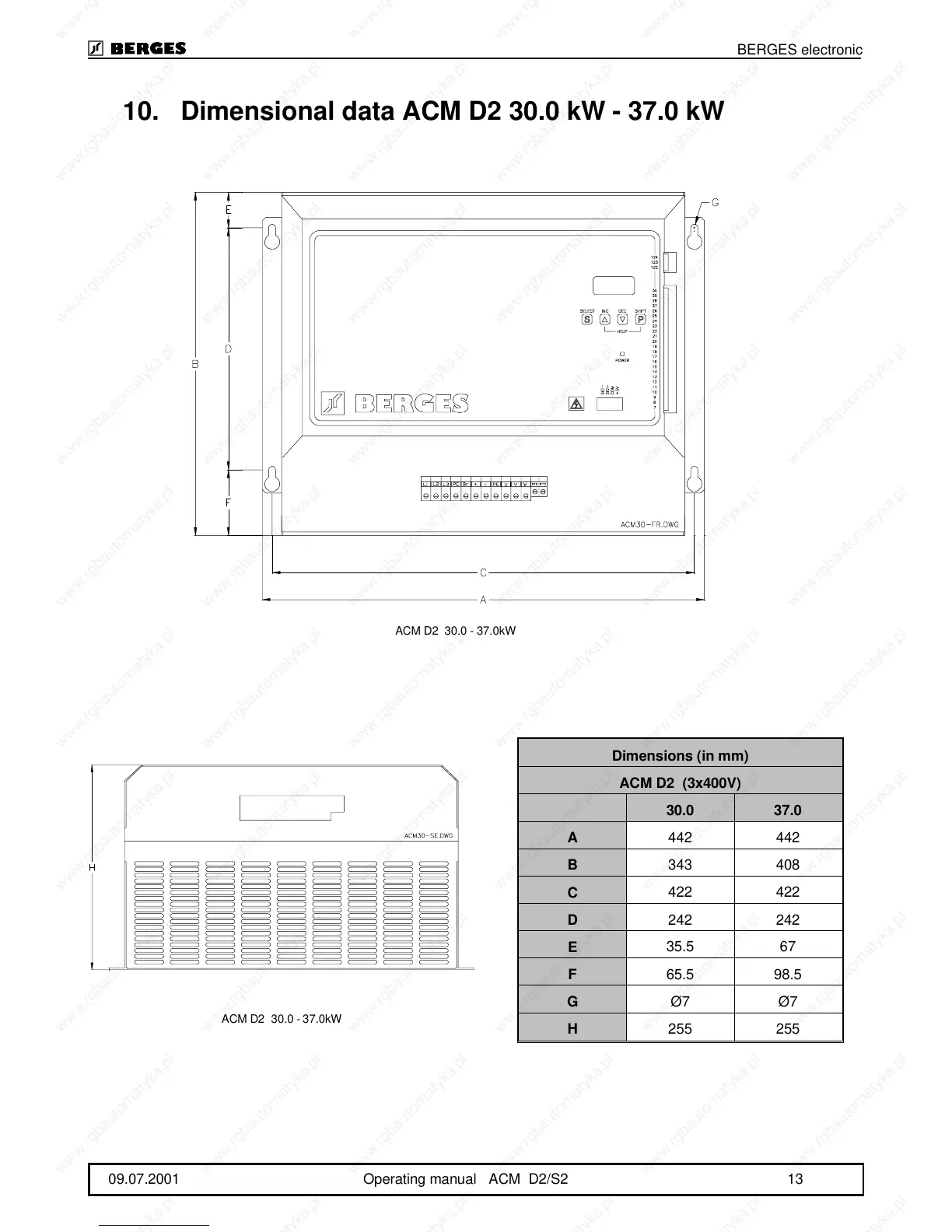

10. Dimensional data ACM D2 30.0 kW - 37.0 kW
Dimensions (in mm)
ACM D2 (3x400V)
30.0 37.0
A
442 442
B
343 408
C
422 422
D
242 242
E
35.5 67
F
65.5 98.5
G
Ø7 Ø7
H
255 255
ACM D2 30.0 - 37.0kW
ACM D2 30.0 - 37.0kW
BERGES electronic
09.07.2001 Operating manual ACM D2/S2 13
