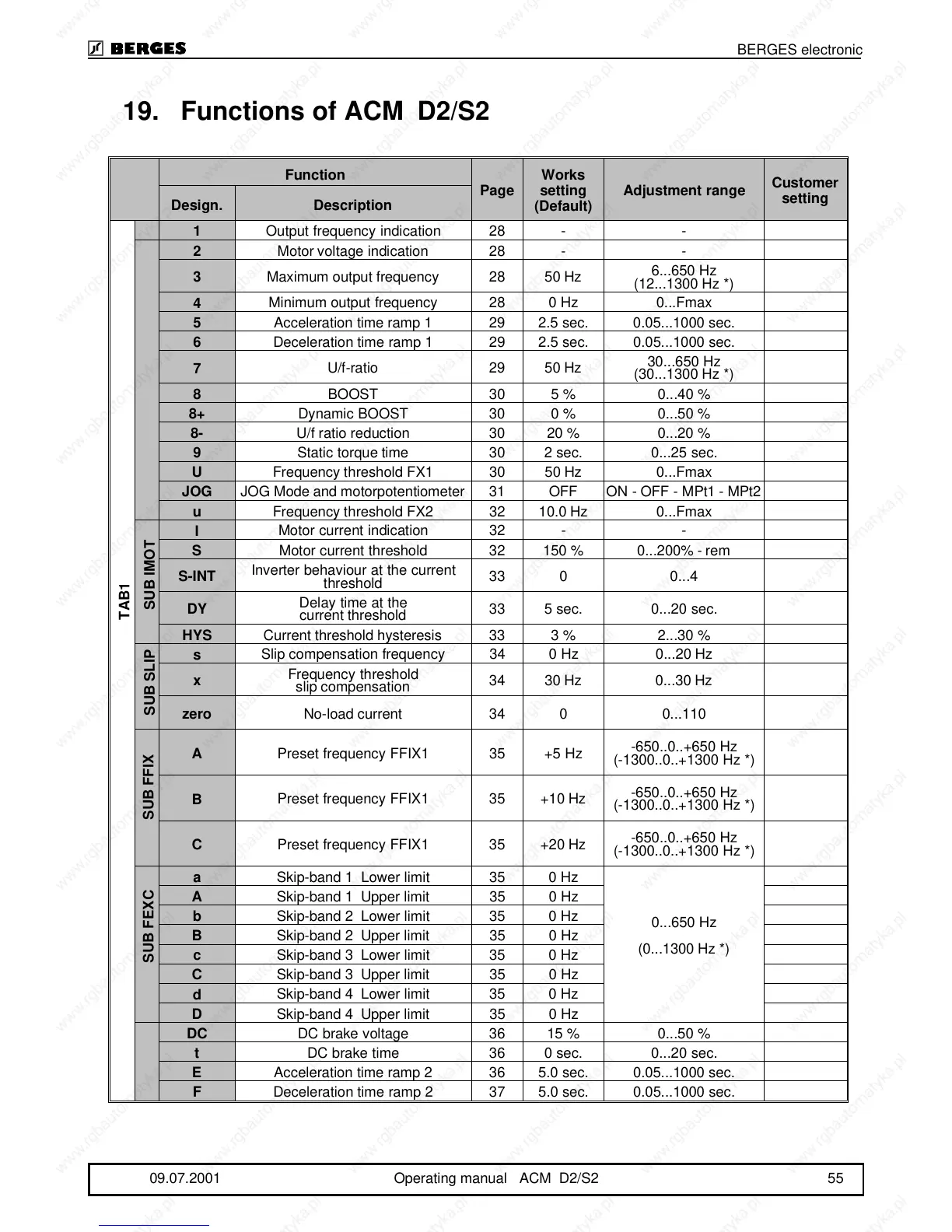

19.Functions of ACM D2/S2
Function
Page
Works
setting
(Default)
Adjustment range
Customer
setting
Design. Description
1
Output frequency indication 28 - -
2
Motor voltage indication 28 - -
3
Maximum output frequency 28 50 Hz
6...650 Hz
(12...1300 Hz *)
4
Minimum output frequency 28 0 Hz 0...Fmax
5
Acceleration time ramp 1 29 2.5 sec. 0.05...1000 sec.
6
Deceleration time ramp 1 29 2.5 sec. 0.05...1000 sec.
7
U/f-ratio 29 50 Hz
30...650 Hz
(30...1300 Hz *)
8
BOOST 30 5 % 0...40 %
8+
Dynamic BOOST 30 0 % 0...50 %
8-
U/f ratio reduction 30 20 % 0...20 %
9
Static torque time 30 2 sec. 0...25 sec.
U
Frequency threshold FX1 30 50 Hz 0...Fmax
JOG
JOG Mode and motorpotentiometer 31 OFF ON - OFF - MPt1 - MPt2
u
Frequency threshold FX2 32 10.0 Hz 0...Fmax
I
Motor current indication 32 - -
S
Motor current threshold 32 150 % 0...200% - rem
S-INT
Inverter behaviour at the current
threshold
33 0 0...4
DY
Delay time at the
current threshold
33 5 sec. 0...20 sec.
HYS
Current threshold hysteresis 33 3 % 2...30 %
s
Slip compensation frequency 34 0 Hz 0...20 Hz
x
Frequency threshold
slip compensation
34 30 Hz 0...30 Hz
zero
No-load current 34 0 0...110
A
Preset frequency FFIX1 35 +5 Hz
-650..0..+650 Hz
(-1300..0..+1300 Hz *)
B
Preset frequency FFIX1 35 +10 Hz
-650..0..+650 Hz
(-1300..0..+1300 Hz *)
C
Preset frequency FFIX1 35 +20 Hz
-650..0..+650 Hz
(-1300..0..+1300 Hz *)
a
Skip-band 1 Lower limit 35 0 Hz
0...650 Hz
(0...1300 Hz *)
A
Skip-band 1 Upper limit 35 0 Hz
b
Skip-band 2 Lower limit 35 0 Hz
B
Skip-band 2 Upper limit 35 0 Hz
c
Skip-band 3 Lower limit 35 0 Hz
C
Skip-band 3 Upper limit 35 0 Hz
d
Skip-band 4 Lower limit 35 0 Hz
D
Skip-band 4 Upper limit 35 0 Hz
DC
DC brake voltage 36 15 % 0...50 %
t
DC brake time 36 0 sec. 0...20 sec.
E
Acceleration time ramp 2 36 5.0 sec. 0.05...1000 sec.
F
Deceleration time ramp 2 37 5.0 sec. 0.05...1000 sec.
TAB1
SUB IMOTSUB SLIP
SUB FFIXSUB FEXC
