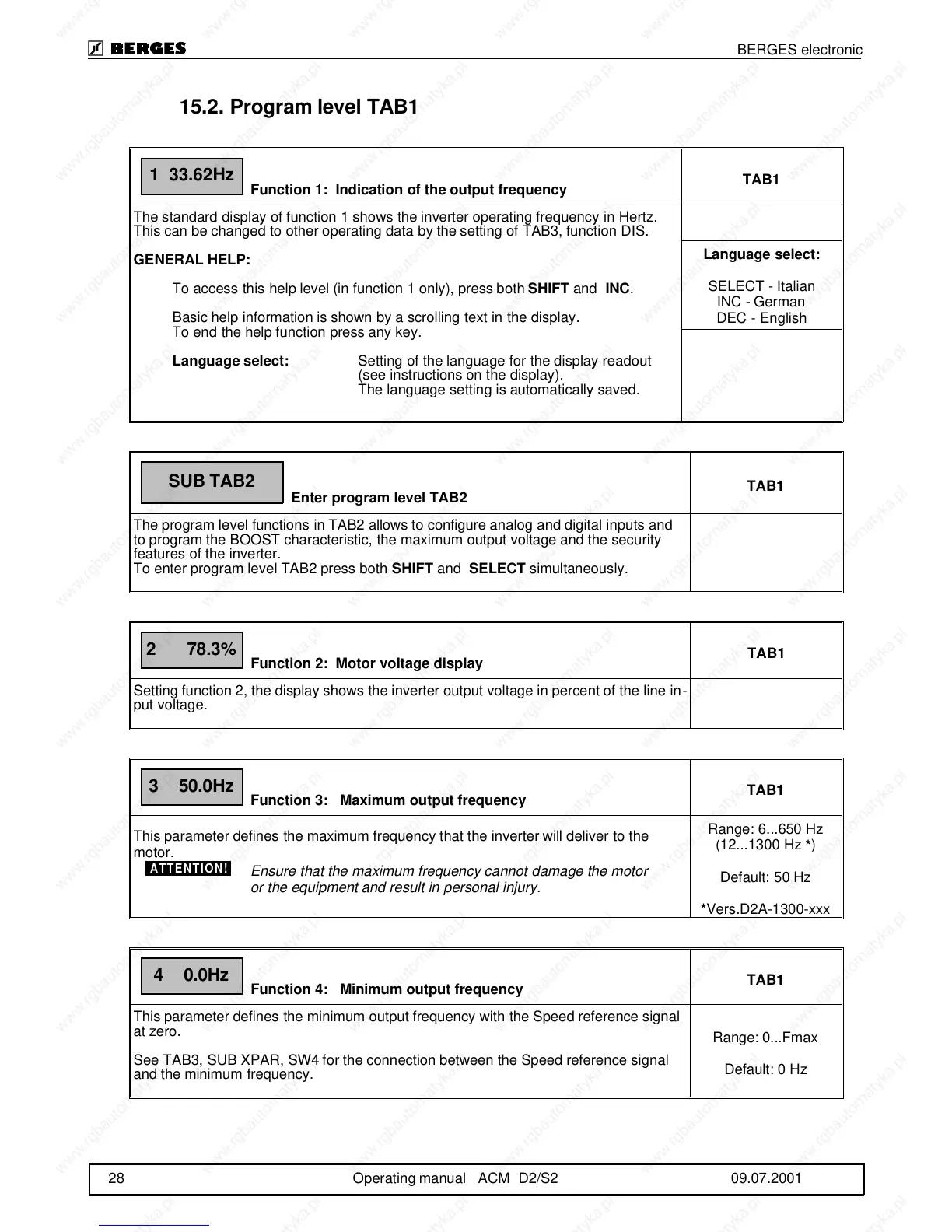

15.2.Program level TAB1
Function 1: Indication of the output frequency
TAB1
The standard display of function 1 shows the inverter operating frequency in Hertz.
This can be changed to other operating data by the setting of TAB3, function DIS.
GENERAL HELP:
To access this help level (in function 1 only), press both
SHIFT
and
INC
.
Basic help information is shown by a scrolling text in the display.
To end the help function press any key.
Language select:
Setting of the language for the display readout
(see instructions on the display).
The language setting is automatically saved.
Language select:
SELECT - Italian
INC - German
DEC - English
Enter program level TAB2
TAB1
The program level functions in TAB2 allows to configure analog and digital inputs and
to program the BOOST characteristic, the maximum output voltage and the security
features of the inverter.
To enter program level TAB2 press both
SHIFT
and
SELECT
simultaneously.
Function 2: Motor voltage display
TAB1
Setting function 2, the display shows the inverter output voltage in percent of the line in-
put voltage.
Function 3: Maximum output frequency
TAB1
This parameter defines the maximum frequency that the inverter will deliver to the
motor.
Ensure that the maximum frequency cannot damage the motor
or the equipment and result in personal injury.
Range: 6...650 Hz
(12...1300 Hz
*
)
Default: 50 Hz
*
Vers.D2A-1300-xxx
Function 4: Minimum output frequency
TAB1
This parameter defines the minimum output frequency with the Speed reference signal
at zero.
See TAB3, SUB XPAR, SW4 for the connection between the Speed reference signal
and the minimum frequency.
Range: 0...Fmax
Default: 0 Hz
1 33.62Hz
SUB TAB2
2 78.3%
3 50.0Hz
ATTENTION!
4 0.0Hz
